0.33 g |
| Acid capacity [oz] |
0.012 oz |
| Activated alum/Molec sieve [%] |
20% / 80% |
| Activated alumina [%] |
20% |
| Approval |
UL |
| Body material |
Steel |
| Bracket |
No |
| Connection material |
Copper |
| Core |
Solid core |
| Core Size code |
1.5 cu.in |
| Core type |
Solid core |
| Drying Cap[Drops of Water]24°C |
R134a: 47, R290: 37, R32: 40, R404A: 49, R407C: 46, R410A: 43, R507: 51 |
| Drying Cap[Drops of Water]52°C |
R134a: 43, R290: 30, R32: 36, R404A: 46, R407C: 42, R410A: 38, R507: 46 |
| Filter application |
Std Moisture & Acid Capacity |
| Flow direction indicator |
Label printed 1-way arrow |
| Fluid Group |
2 |
| In scope of WEEE and contain batteries |
No |
| Inlet 1 connection size [in] |
1/4 in |
| Inlet connection type |
Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] |
Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] |
DELTA P=1PSI, tliq= 86°F, tvap=5°F |
| Lubricants compatibility |
Oilfree applications |
| Max. Working Pressure [bar] |
46 bar |
| Max. Working Pressure [psig] |
667 psig |
|
Molecular sieve [%]
|
80% |
| Net volume [foz US] |
1.16 Fluid Ounce US |
| Net volume [l] |
0.034 L |
| Oil free refrigerants |
R1234ze(E), R134a, R513A, R515A |
| Outlet connection size [mm] |
2.8 mm |
| Outlet connection type |
Solder, ODF |
| Refrigerants |
R1233zd(E), R1234yf, R1234ze(E), R125, R134a, R22/R407C, R23, R290, R32, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600 |
| Serviceable |
No |
| Shell volume [foz US] |
1.61 Fluid Ounce US |
| Shell volume [l] |
0.05 L |
| Solid core surface [cm²] |
40 cm² |
| Solid core surface [in²] |
6.12 in² |
| Solid core volume [cm³] |
13 cm³ |
| Solid core volume [in³] |
0.82 in³ |
| Temperature range [°C] [Max] |
70°C |
| Temperature range [°C] [Min] |
-40°C |
| Temperature range [°F] [Max] |
160°F |
| Temperature range [°F] [Min] |
-40°F |
| Type |
DCL |

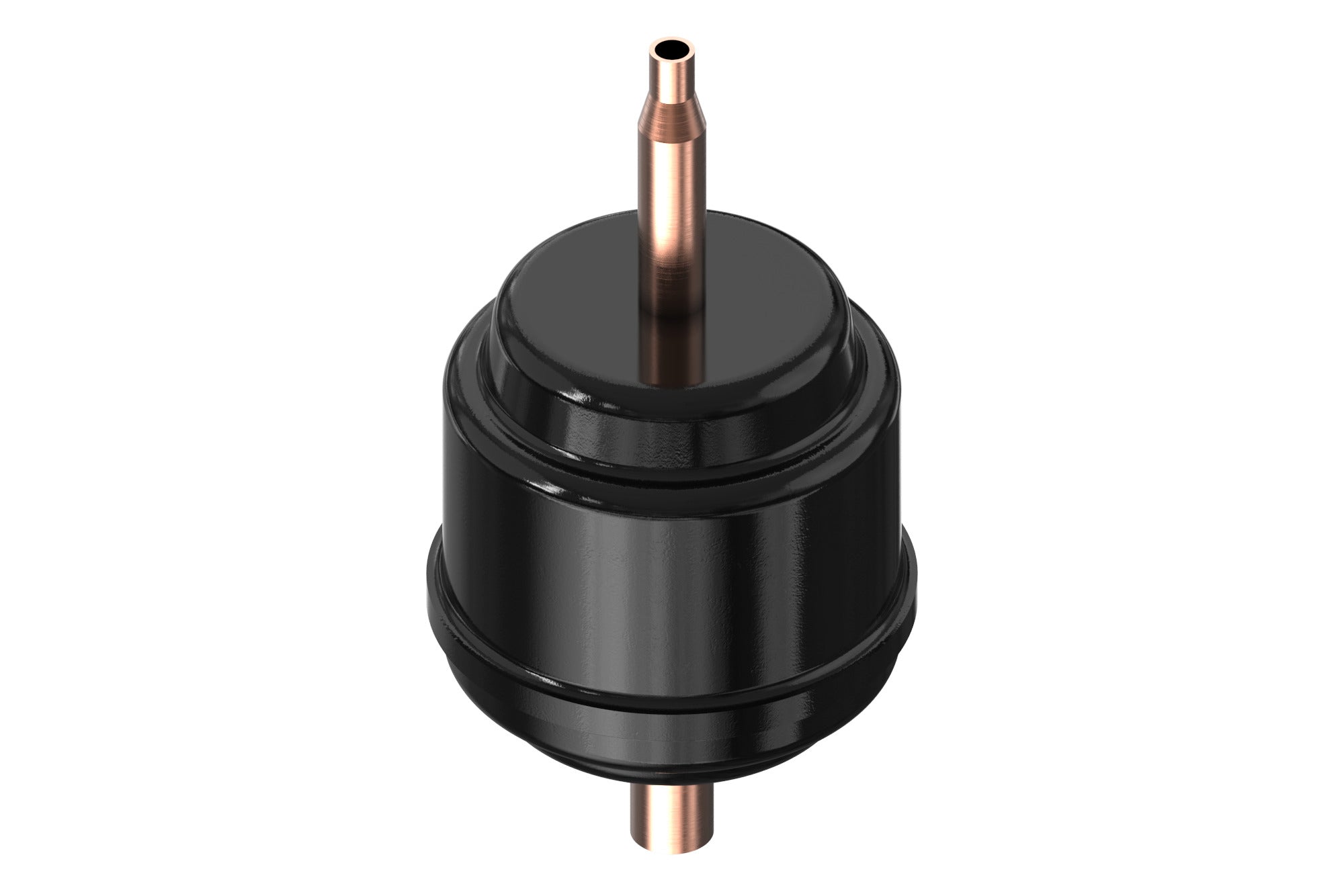

| Type designation |
DCL 1.52/2.8mmS |
| UL approval file name |
SA6398 |
| UL approved refrigerants |
R125, R134a, R22, R23, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A |
