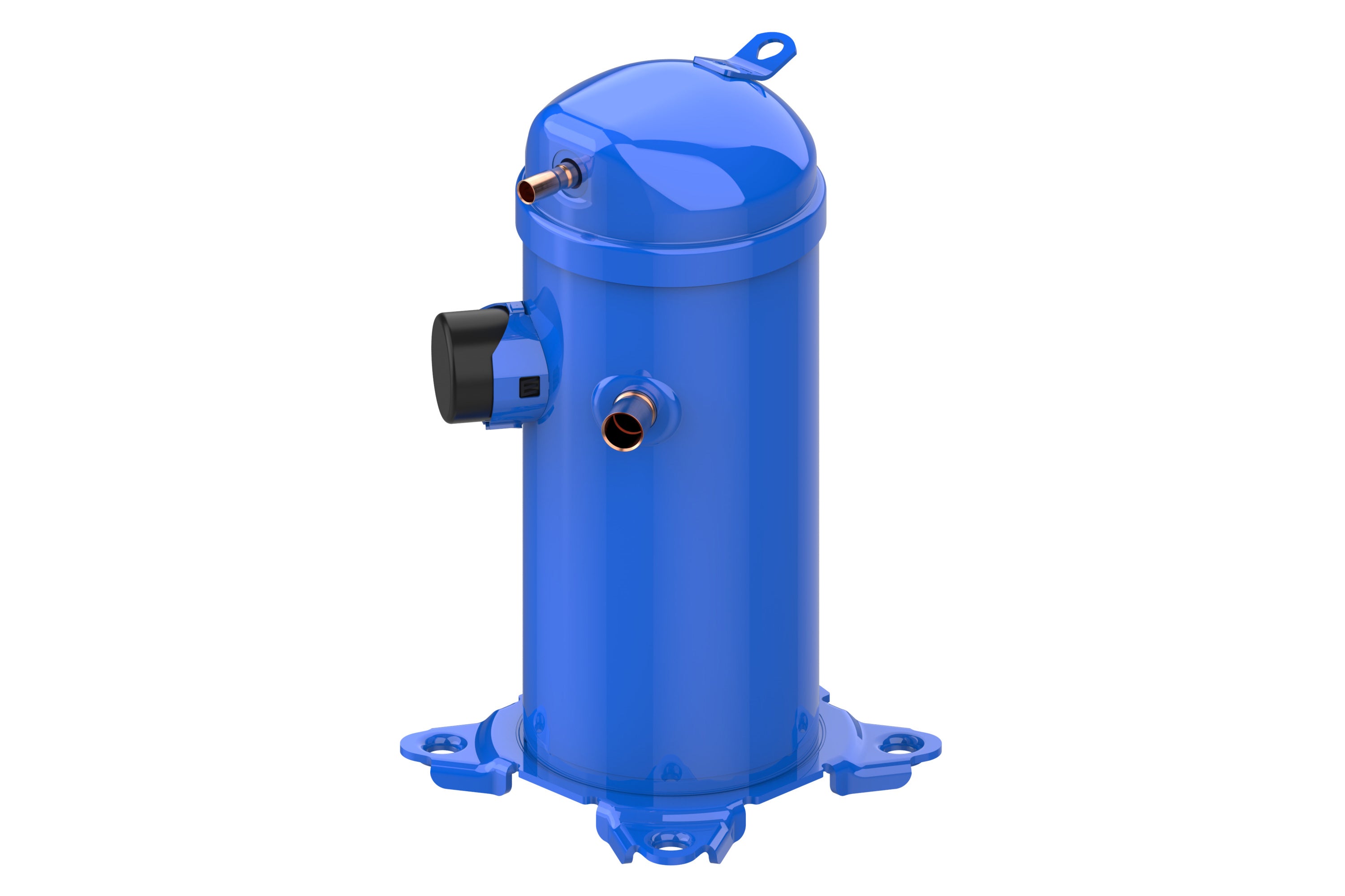

This Danfoss air conditioning compressor is designed to operate on a single-phase power supply with an electrical voltage range of 208 to 230 volts. It utilizes R410A refrigerant, a hydrofluorocarbon (HFC) compound known for its efficiency and lower environmental impact than older refrigerants. The unit has a cooling capacity of 49,000 British Thermal Units (BTU), indicating how much heat it can remove from the air per hour.
Specifications
|
|
CE, UL, UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] |
0.82 |
| Brand technique |
Scroll compressor |
| Capacity control |
Fixed speed |
| Capacity of capacitor A |
70 µF |
| Capacity of capacitor B |
161-193 µF |
| Color |
Blue |
| Compressor power supply [V] |
208-230/1/60 |
| Configuration code |
Single |
| Connection type |
Brazed |
| Description |
HRH049U1 |
| Diameter [mm] |
184 mm |
| Discharge connection height [mm] |
422 mm |
| Discharge connection pipe size [in] |
1/2 in |
| Discharge connection size [in] |
1/2 in |
| Drawing number |
0XR6002B-2 |
| Economizer |
No |
| Family |
HRH |
| Fitting standard |
ODF |
| Frequency [Hz] |
60 |
| High value of nominal voltage at 60Hz [V] |
230 V |
| High value of voltage range at 60Hz [V] |
253 V |
| In scope of WEEE and contain batteries |
No |
| IP protection class |
IP22 |
| Length [mm] |
239 mm |
| Low value of nominal voltage at 60Hz [V] |
208 V |
| Low value of voltage range at 60Hz [V] |
187 V |
| LRA |
150 A |
| Main winding resistance for single-phase compressors [Ohm] |
0.32 |
|
Max pressure (PS) - high side
|
46.1 bar |
| Max pressure (PS) - low side |
31.1 bar |
| MCC |
45 A |
| Model number |
HRH049U1LP6 |
| Motor protection |
Internal overload protector |
| Network power supply [V/Ph/Hz] |
208-230/1/60 |
| Oil charge [L] |
1.57 L |
| Oil drain |
none |
| Oil equalization |
none |
| Oil reference |
320HV |
| Oil type |
PVE |
| Phase |
1 |
| Power connections |
Spade |
| Product group |
Hermetic compressors |
| Product Name Description |
HRH |
| Refrigerant charge [kg] [Max] |
5.44 kg |
| Refrigerants |
R410A |
| Relay model |
3ARR3*3L* |
| RLA |
25 A |
| Rotational speed at 60Hz [rpm] |
3500 rpm |
| Segment usage |
Air conditioning |
| Suction connection height [mm] |
280 mm |
| Suction connection material |
- |
| Suction connection pipe size [in] |
7/8 in |
| Suction connection size [in] |
7/8 in |
| Swept volume [cm3] |
47.36 cm³ |
| Technology |
Scroll |
| Total height [mm] |
455 mm |
| Type |
HRH049 |
| UK RoHS compliance |
Out of scope |
| Viscosity [cP] |
68 cP |
| Voltage of capacitor A [V] |
370 V |
| Voltage of capacitor B [V] |
250 V |
| Width [mm] |
239 mm |
