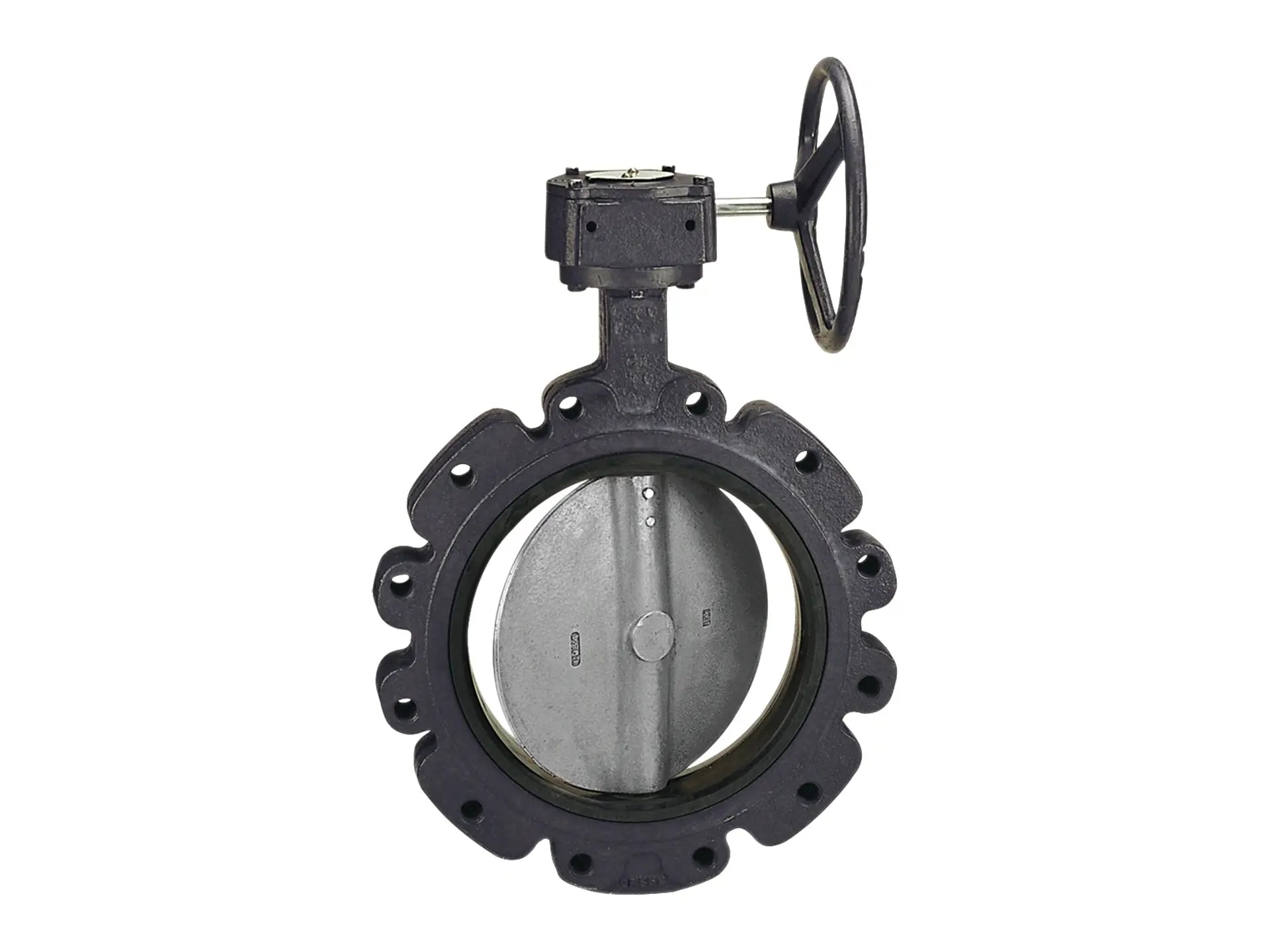

NIBCO LD-2022 18" Lug Ductile Iron Butterfly Valve NLG780V

SKU: LSIG34XTCG Part Number: NLG780V Model: LD-2022-0

Price:
Sale price$10,286.95 Regular price$19,409.00

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is assembled to order and additional lead-times may apply.

This NIBCO lug type butterfly valves provide bubble-tight shutoff at 200 psi and bi-directional dead-end service without a downstream flange to 150 psi. The valve is recommended for commercial and some light industrial process applications, in addition to HVAC and hot and cold potable water. This NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge seat liner with stainless steel disc is recommended for water and chemical applications the liner compatibility will permit. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Valve pressure rating 200 psi
  • 225°F continuous and 250°F intermittent service
  • Lug style
  • EPDM cartridge seat liner
  • Stainless steel disc
  • Stainless steel stem with stainless steel bushings
  • Extended neck
  • Operating mechanism: Bare stem, manual gear operator and pneumatic/electric automation
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)

Specifications

Manufacturer NIBCO
Part Number NLG780V
Model LD-2022-0
Series LD-2022 - LARGE DIAMETER
Type of Valve Butterfly
Nominal Pipe Size 18"
End Connection Type L - Lug
Material Ductile Iron
Butterfly Operator Bare Stem/Bare Shaft
Turns Operations Quarter-Turn
Seat Seal Material EPDM Rubber
Pressure Rating (psi) 200 psi rated pressure
UPC Code 039923255402
Length 31.54"
Width 25"
Height 7.76"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
