Name: NIBCO NL944A8P, 3/4 in. One-Piece Carbon Steel Ball Valve Reduced Port, Fire Safe T-560-CSR-25-FS
Brand: NIBCO
SKU: LSIGAYPHV3
Price: 58.95 USD
Availability: InStock

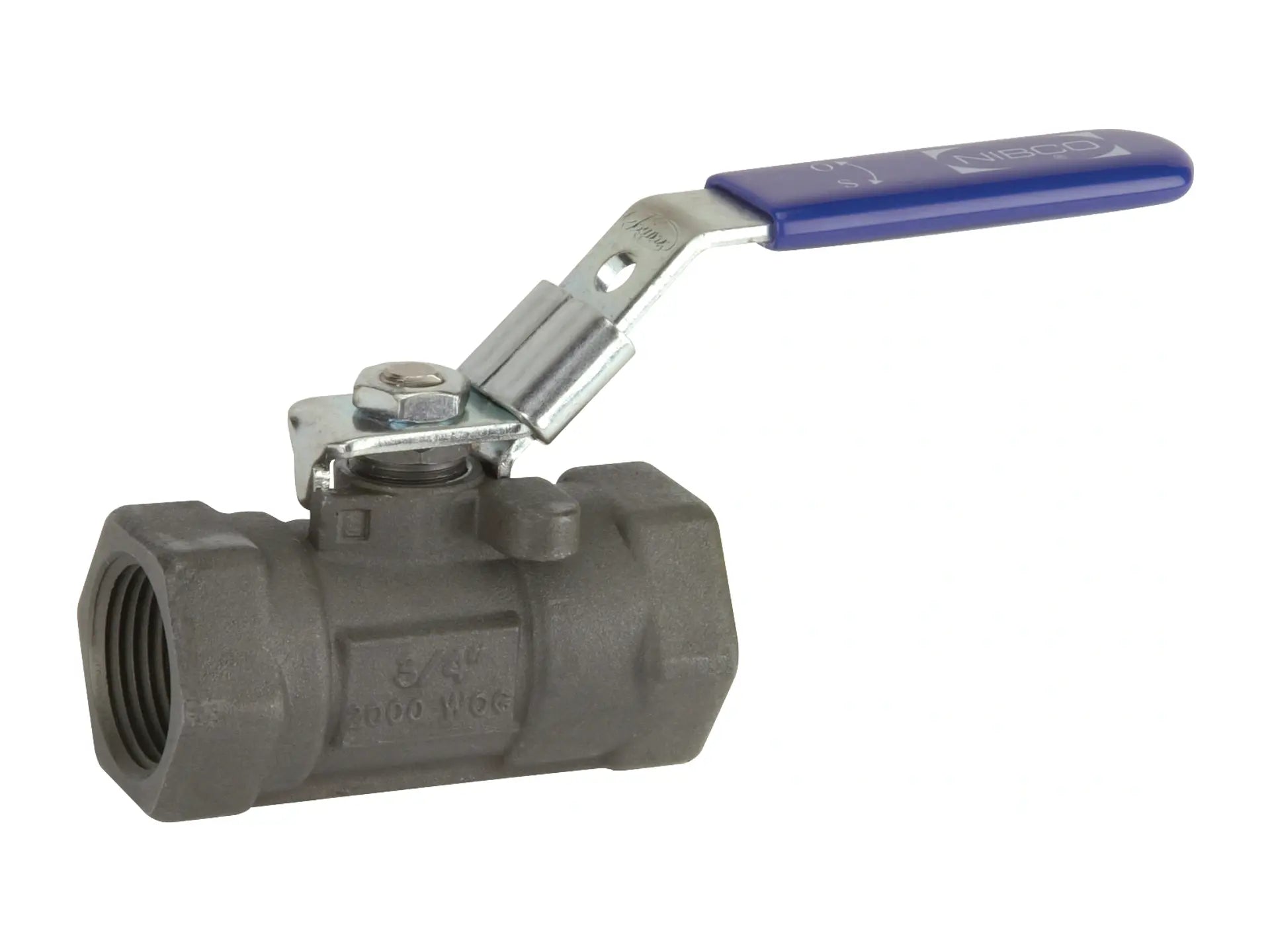

Representative Image

NIBCO NL944A8P, 3/4 in. One-Piece Carbon Steel Ball Valve Reduced Port, Fire Safe T-560-CSR-25-FS

Roll over image to zoom in Click on image to zoom

This NIBCO reduced port carbon steel ball valve meets Fire Safe requirements. This valve features a standard locking lever handle for security purposes. It provides bubble-tight shutoff at 2000 psi. The one-piece valve is recommended for petrochemical, utility service applications. It may be used for isolation and throttling (half open to full open only). This NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90°) open to close. The reinforced PTFE seat ring, Graphoil stem packing and stainless steel ball exhibit high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths and features threaded ends for easy installation. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Features

Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
Maximum temperature rating 400°F
Reduced port
Blowout-proof stem
Stainless steel ball and carbon steel stem
Vented ball
Locking lever handle
Threaded end connections
Conforms to MSS SP-110
API-607 Fourth Edition Fire Safe

Manufacturer	NIBCO
Part Number	NL944A8P
Model	T-560-CSR-25-FS
Series	T-560-CS-R-25-FS-LL
Type of Valve	Ball
Nominal Pipe Size	3/4"
End Connection Type	T -- Female NPT Thread (FIPT)
Material	Carbon Steel
Ball Body Type	One-Piece
Ball Operator	CS Standard Lever Handle
Ball Port Style	Reduced Port
Ball Stem Material	SS/CS - Stainless Steel and Carbon Steel
Seat Seal Material	RPTFE (Reinforced)
Turns Operations	Quarter-Turn
Pressure Rating (CWP)	2000 psi/138 Bar CWP
Potable Water Code	Not LL Comp not intend potable
UPC Code	039923665973
Length	5.71"
Width	2.87"
Height	1.55"
Country of Origin	TW
