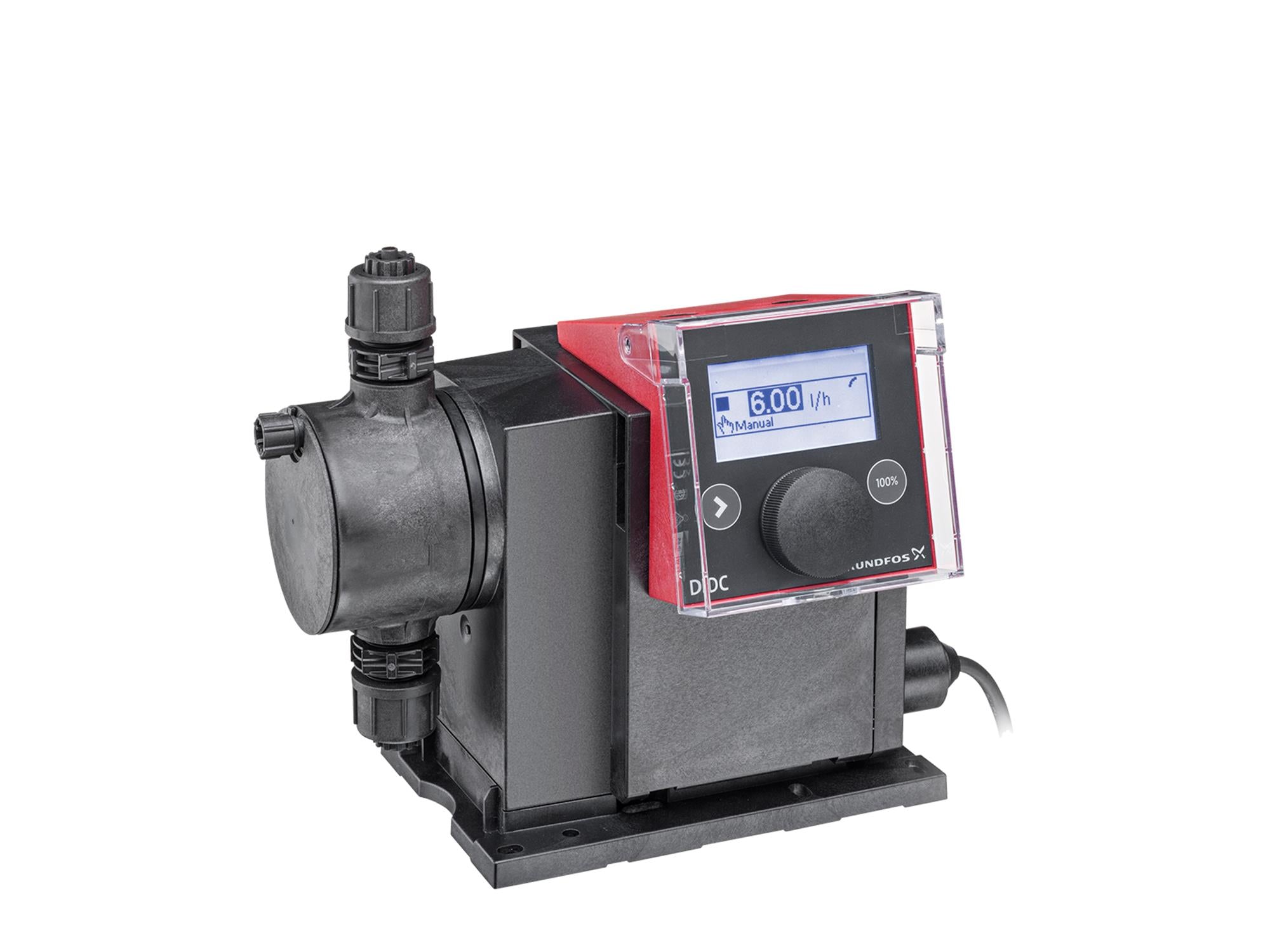

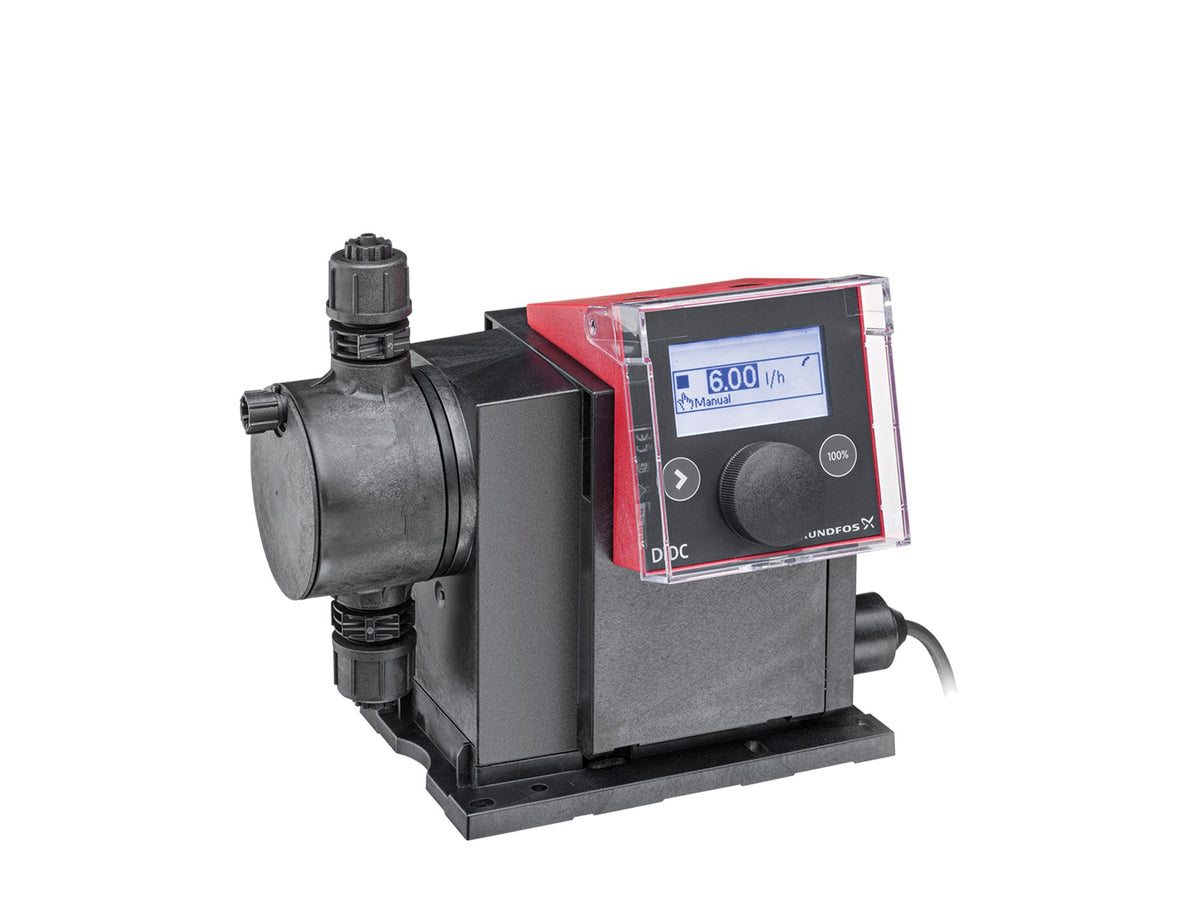

Grundfos 97721640, DDC 9-7 AR-PVC/E/C-F-31I004BG Digital Dosing Pump

SKU: LSIGHDQIZ4 Part Number: 97721640

Price:
Sale price$2,778.95 Regular price$2,972.00

Save 6% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This digital dosing pump is a SMART Digital diaphragm dosing pump with an internal stepper motor drive, offering user-friendly operation at an optimum price-performance ratio. It is suitable for applications such as industrial cooling, process liquids transfer, and industrial process water treatment.

Specifications

Manufacturer Grundfos
Part Number 97721640
Type key DDC 9-7 AR-PVC/E/C-F-31I004BG
Max. Flow 2.378 US gal/hour
Max. flow in slow mode 50% 1.189 US gal/hour
Max. flow in slow mode 25% 0.5944 US gal/hour
Min flow 9.0 ml/h
Turn-down ratio 1:1000
Approvals CE,CSA-US,NSF61,RCM
Valve type Standard
Maximum viscosity at 100 % 50 mPas
Maximum viscosity in slow mode 50 % 1300 mPas
Maximum viscosity in slow mode 25 % 2000 mPas
Accuracy of repeatability 1 %
Dosing head PVC (Polyvinyl chloride)
Valve ball Ceramic
Gasket EPDM
Range of ambient temperature 32 .. 113 °F
Maximum operating pressure 101.53 psi
Installation set YES
Installation type 3/8"x1/2" up to 60 l/h,10bar
Pump inlet Hose 3/8x1/2" S
Pump outlet Hose 3/8x1/2" S
Max. Suction lift during operation 19.7 ft
Max. Suction lift during priming 6.56 ft
Pumped liquid Water
Liquid temperature range 32 .. 113 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Maximum power input - P1 22 W
Main frequency 50 / 60 Hz
Rated voltage 1 x 100-240 V
Enclosure class (IEC 34-5) IP65 / TYPE 4X
Length of cable 4.92 ft
Type of cable plug USA, Canada
Inrush current 25A at 230V for 2ms
Control variant AR
Control panel FRONT-MOUNTED
Level control YES
Analog input 0/4-20 mA
Pulse control YES
Ext. Stop input YES
Output relays 2
Net weight 4.41 lb
Gross weight 6.62 lb
COLOR RED

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
