Please note this item is made to order and additional lead-times may apply.

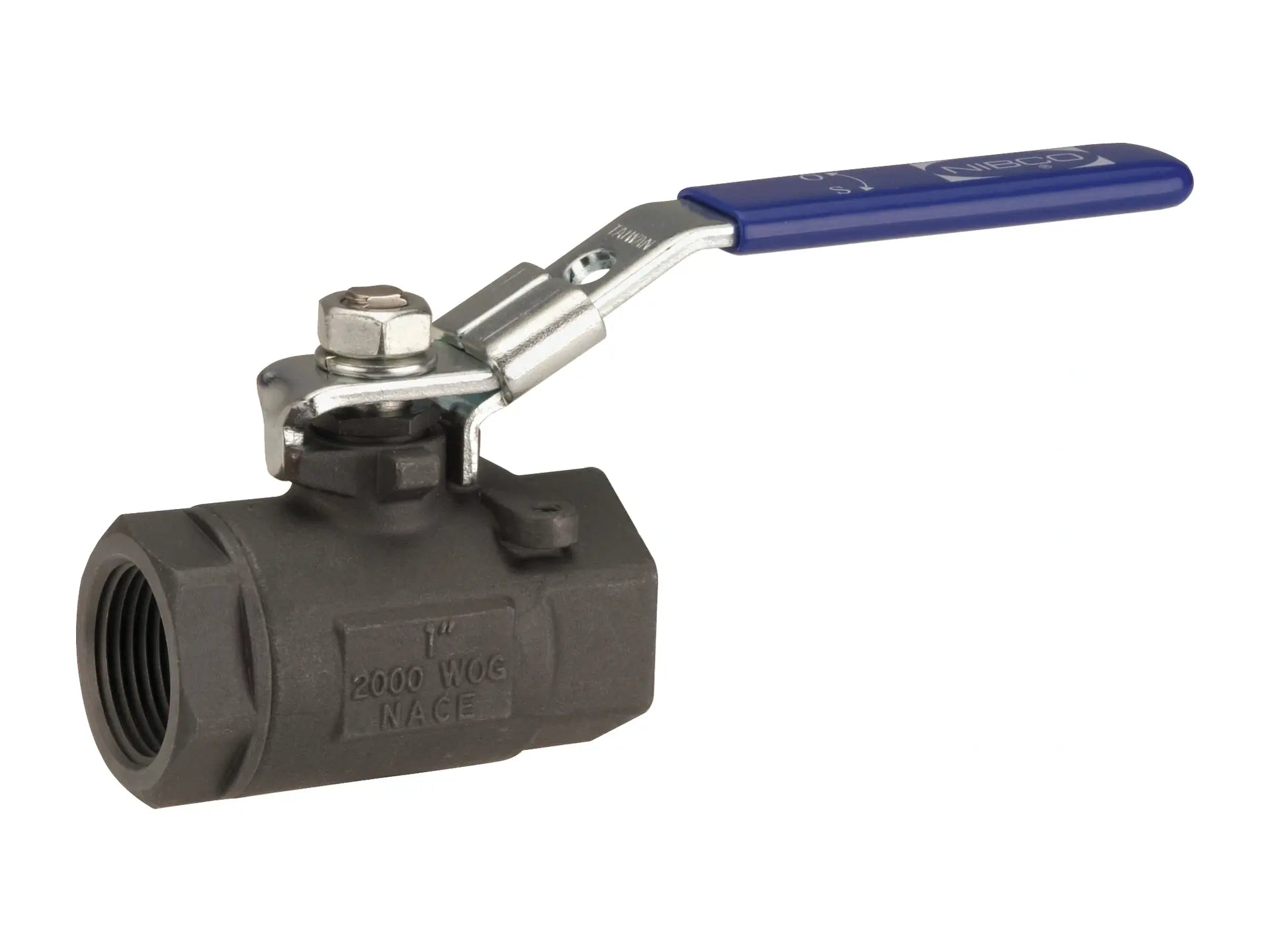

This NIBCO carbon steel ball valve provides bubble-tight shutoff at 2000 psi. The reinforced PTFE seat ring and stainless steel stem and ball exhibit high chemical resistance properties and is recommended for process piping. This valve features a lockable lever handle for security and a cast mounting pad for actuation purposes. It may be used for isolation and throttling (half open to full open only). This NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90°) open to close. This valve features threaded ends for easy installation. The two-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Conventional port
- Blowout-proof stem
- Stainless steel ball and stem
- Cast ISO mounting pad
- Vented ball
- Locking lever handle
- Threaded end connections
- Conforms to MSS SP-110
