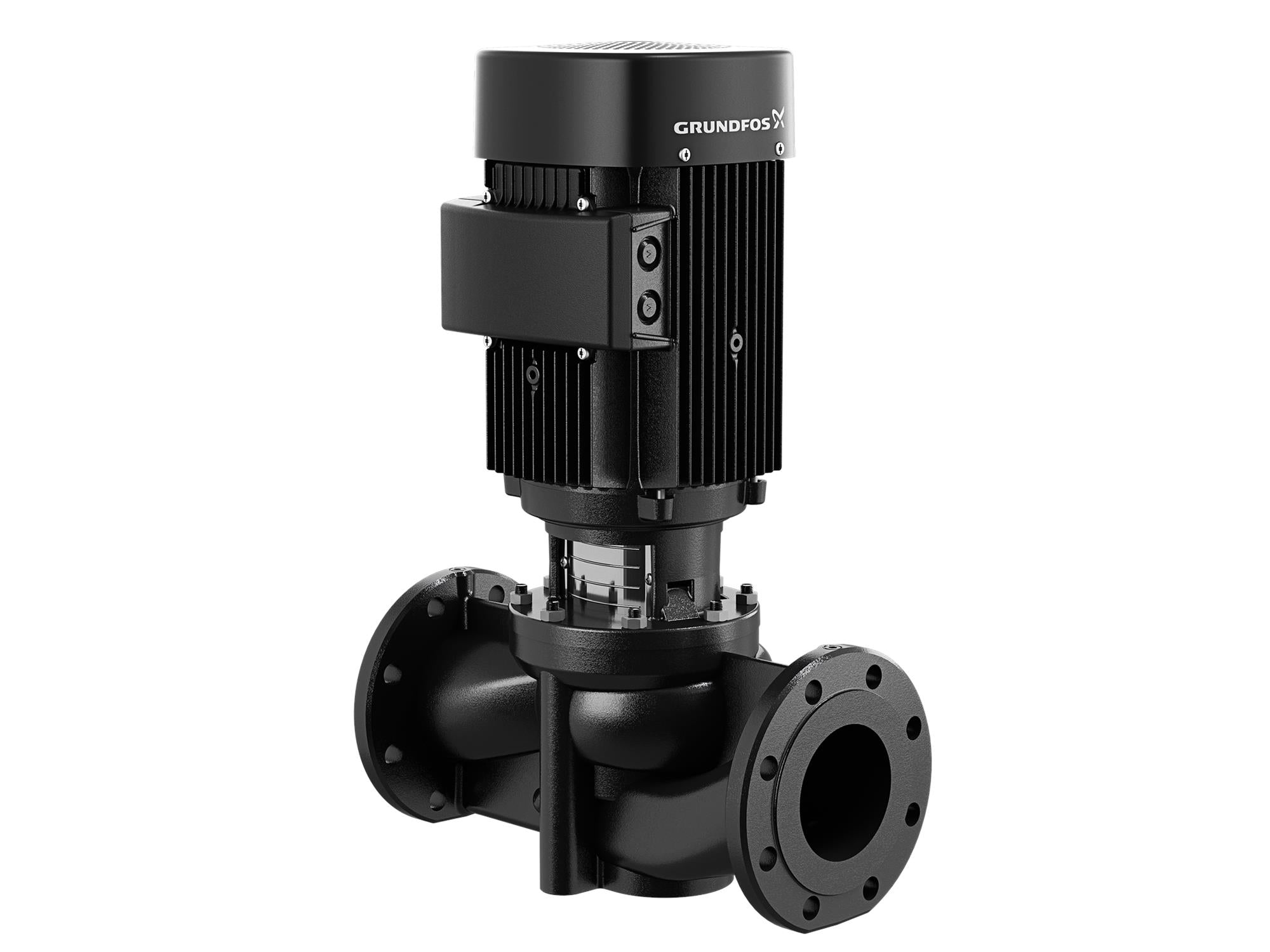

This inline single-stage pump is a TP32-160/2 A-G-A-RUUE model designed for heating, cooling, and district energy applications. It has a mechanical shaft seal and operates with fixed-speed motors on 3x230/460V at 60Hz.
Specifications
Manufacturer
Grundfos
Part Number
96973109
Rated flow
38.7 US gpm
Rated head
38.39 ft
Primary shaft seal
RUUE
Approvals on motor nameplate
CE,CURUS,EAC
Curve tolerance
ISO9906:2012 3B2
Pump Number
96405251
Pump housing
Cast iron, EN-JL1040, ASTM 25 B
Impeller
Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Range of ambient temperature
-22 .. 104 °F
Maximum operating pressure
145.04 psi
Flange standard
USA
Pipe connection
1 1/2"
Pumped liquid
Water
Liquid temperature range
-13 .. 140 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Motor type
71BA
Rated power - P2
0.75 HP
KVA code
K
Main frequency
60 Hz
Rated voltage
3 x 208-230YY/460Y V
Service factor
1.25
Rated current
2,40-2,30/1,20 A
Full load SF current
2,9-2,75/1,4 A
Cos phi - power factor
0.84-0.78
Rated speed
3430-3460 rpm
Motor efficiency at full load
79.0-80.0 %
Motor efficiency at 3/4 load
79.9-79.3 %
Motor efficiency at 1/2 load
77.3-75.2 %
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Gross weight
59 lb
Shipping volume
1.98 ft³
Country of origin
US
Custom tariff no.
8413.70.2025
