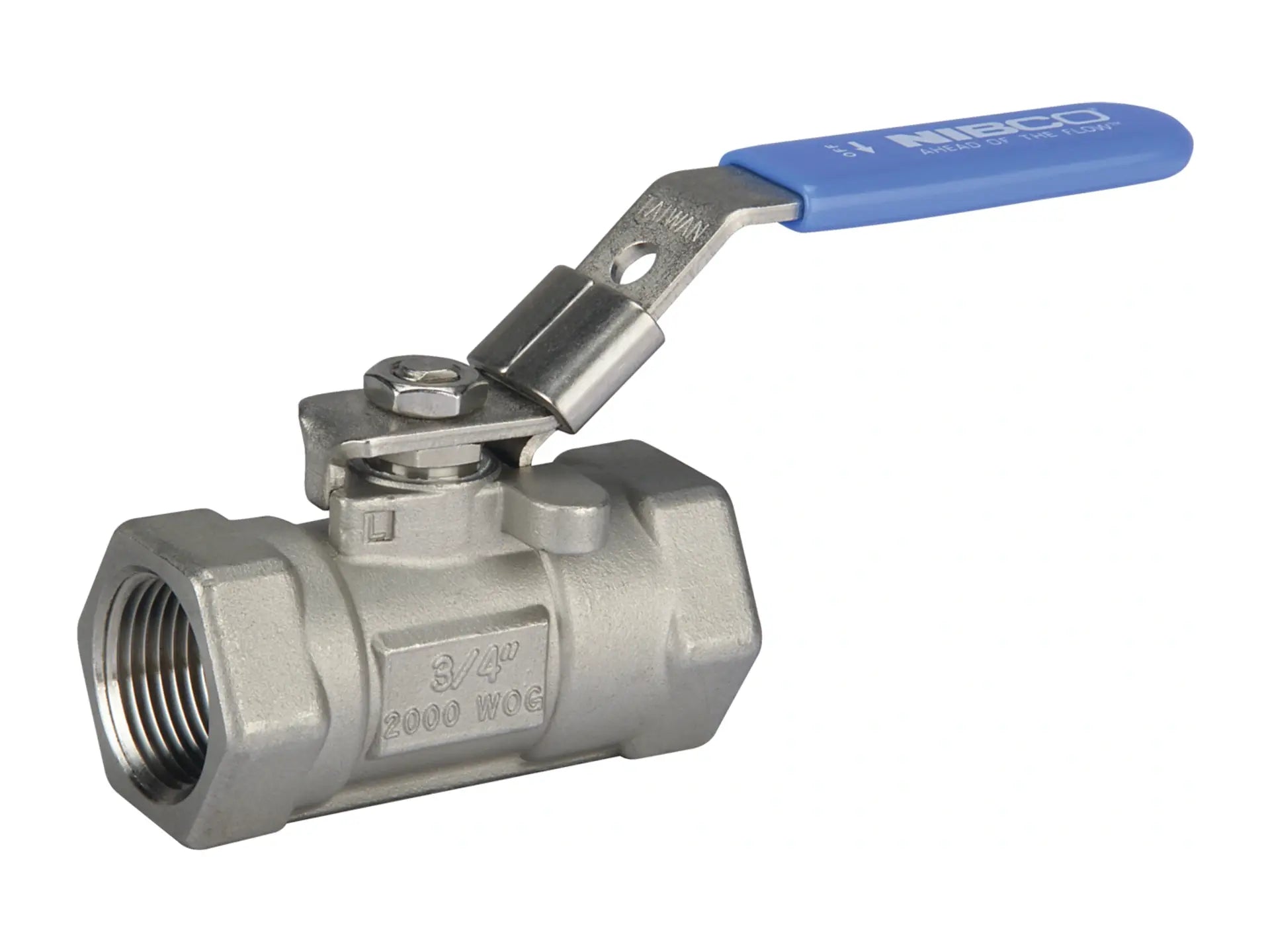

NIBCO T-560-S6R-66-FS 1-1/4" FIPT Stainless Steel Ball Valve NL944IB

SKU: LSIHCNAX77 Part Number: NL944IB Model: T-560-S6R-66-FS

Price:
Sale price$166.95 Regular price$333.20

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO stainless steel ball valve provides bubble-tight shutoff at 2000 psi. The one-piece valve meets Fire Safe requirements. It is recommended for petrochemical, utility service applications. This valve features a standard locking lever handle for security purposes, threaded ends for easy installation and has a cast mounting pad for actuation. It may be used for isolation and throttling (half open to full open only). Also available with oval or oval locking handle. This NIBCO ball valve provides ease of operation with quarter-turn (90°) open to close. The reinforced PTFE seat ring, Graphoil stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Reduced port
  • Blowout-proof stem
  • Stainless steel ball and stem
  • Locking lever handle
  • Threaded end connections
  • Conforms to MSS SP-110
  • API-607 Fifth Edition Fire Safe

Specifications

Manufacturer NIBCO
Part Number NL944IB
Model T-560-S6R-66-FS
Series T-560-S6-R-66-FS-LL
Type of Valve Ball
Nominal Pipe Size 1-1/4"
End Connection Type T -- Female NPT Thread (FIPT)
Material Stainless Steel
Ball Body Type One-Piece
Ball Operator CS Standard Lever Handle
Ball Port Style Reduced Port
Ball Stem Material SS - Stainless Steel
Trim Package Stainless Steel Trim
Seat Seal Material RPTFE (Reinforced)
Turns Operations Quarter-Turn
Pressure Rating (CWP) 2000 psi/138 Bar CWP
UPC Code 039923668998
Length 7.52"
Width 3.75"
Height 2.28"
Country of Origin US

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
