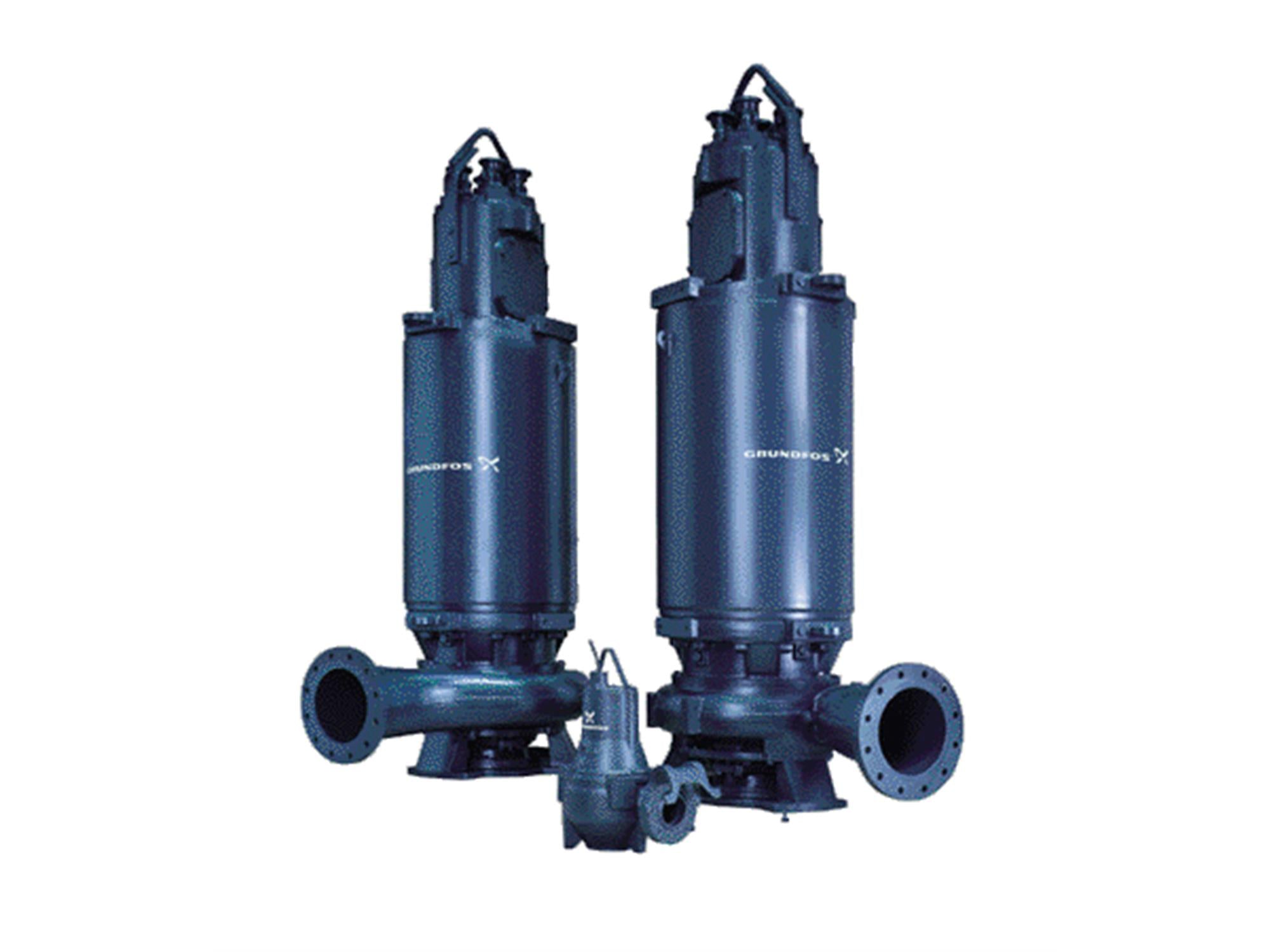

Grundfos 97660737, S1.30.A50.700.4.62H.C.334.G.Ex.D.611 Submersible Wastewater Pump

SKU: LSIHFGSVX2 Part Number: 97660737

Price:
Sale price$39,025.95 Regular price$39,026.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This submersible wastewater pump is designed for pumping sewage and wastewater in various municipal and industrial applications. It has a free-flow channel impeller suitable for commercial wastewater, flood control, and industrial wastewater treatment and reuse.

Specifications

Manufacturer Grundfos
Part Number 97660737
Maximum flow 1900 US gpm
Maximum head 218.2 ft
Actual impeller diameter 13.1 in
Type of impeller 1-CHANNEL
Free passage 3.15 in
Approvals on nameplate FM
Curve tolerance ANSI/HI11.6:2017 3B
Cooling jacket with cooling jacket
Lifting height class H
Pump housing Cast iron, EN 1561 EN-GJL-250, ASTM A48 35B
Impeller Cast iron, EN 1561 EN-GJL-250, ASTM A48-30
Motor Cast iron, EN 1561 EN-GJL-250, ASTM A48 35B
Shaft seal SIC
Secondary shaft seal SIC-CARBON
Range of ambient temperature 32 .. 104 °F
Type of connection ANSI
Size of outlet port 5 inch
Pressure rating for connection PN 10
Maximum installation depth 65.6 ft
Inst dry/wet D/S
Auto coupling 97626242
Liquid temperature range 32 .. 104 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Frame size 62
Power input P1 77.8 HP
Rated power - P2 70 HP
Main frequency 60 Hz
Rated voltage 3 x 460 V
Voltage tolerance +10/-10 %
Max starts per. hour 15
Rated current 91/ A
Maximum current consumption 91 A
Starting current 571 A
Rated current at no load 31.4 A
Rated driver speed 1758 rpm
Motor efficiency at full load 90 %
Motor efficiency at 3/4 load 90 %
Motor efficiency at 1/2 load 89 %
Number of poles 4
Start. method Y/D
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) H
Explosion proof yes
Ex-protection standard FM 3600, 3615 AND 3615.80
Built-in motor protection KLIXON
Power cable type S1BC4N8-F
Length of power cable 49.2 ft
Cable description 2X4X10MM2+1X10X1,5MM2
Cable resistance 9.55 mOhm/m
Winding resistance 0.167 Ohm
Cos phi 1/1 0.80
Cos phi 1/2 0.67
Cos phi 3/4 0.76
Moisture sensor with moisture sensors
Water-in-oil sensor with water-in-oil sensor
Net weight 1460 lb
Gross weight 1700 lb
Sales region NAMREG

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
