Description

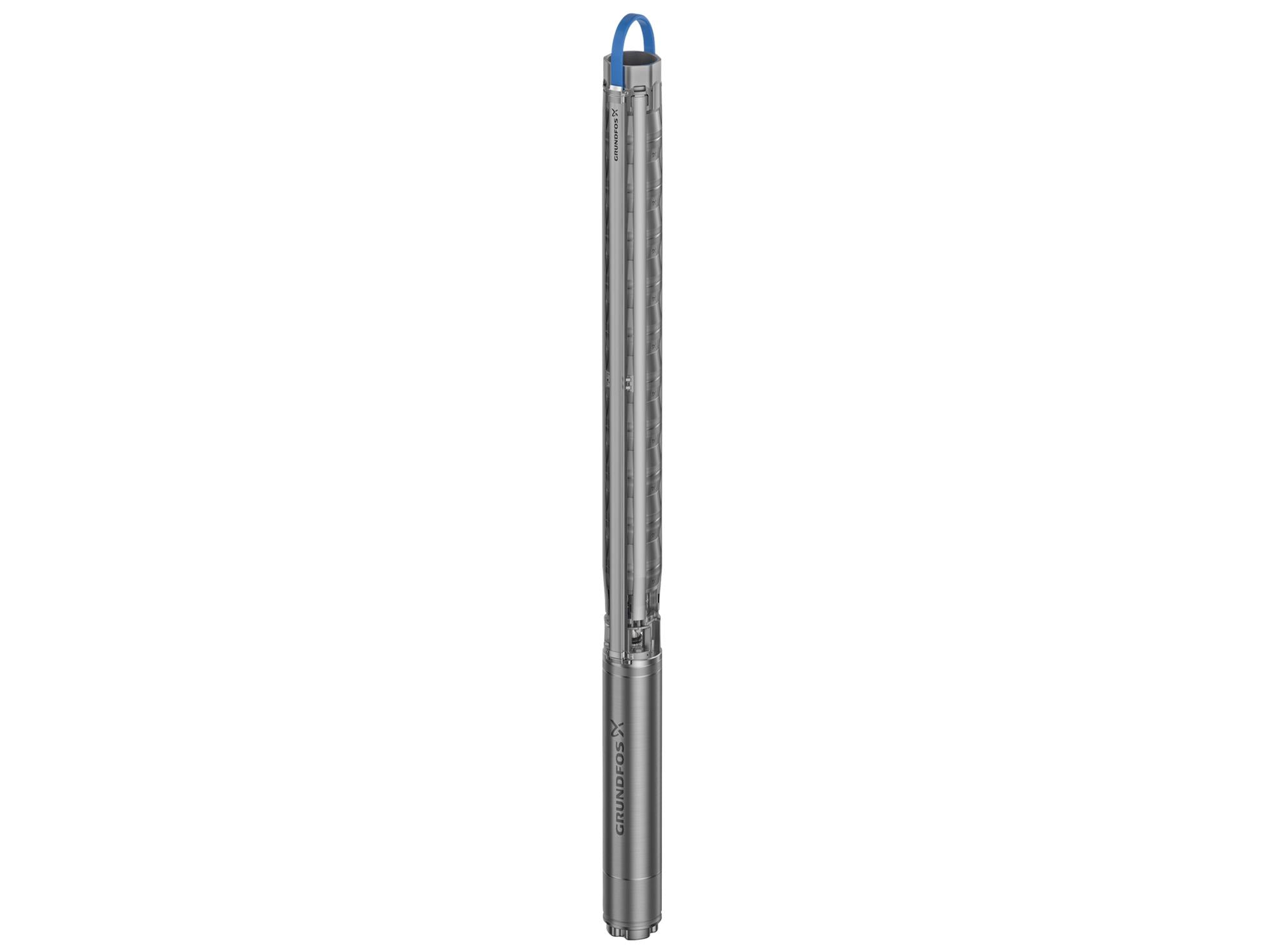

This submersible pump is made of stainless steel and is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and off-shore use. It incorporates materials like EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L).
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 14B73004 |
| Pump speed on which pump data are based | 3450 rpm |
| Rated flow | 317 US gpm |
| Rated head | 141.1 ft |
| Stages | 4 |
| Number of reduced-diameter impellers | NONE |
| Shaft seal for motor | SIC/SICNBR |
| Approvals | CULDWUS,CCSAUS |
| Approvals for drinking water | PROP65 |
| Curve tolerance | ISO9906:2012 3B |
| Motor version | T40 |
| Return valve | YES |
| Pump | Stainless steel, EN 1.4301, AISI 304 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Motor | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Maximum ambient pressure | 870.23 psi |
| Maximum operating pressure | 870.23 psi |
| Maximum outlet pressure | 118.93 psi |
| Type of connection | NPT(F) |
| Size of connection | 3 inch |
| Motor diameter | 6 inch |
| Minimum borehole diameter | 6.1 in |
| Pumped liquid | Water |
| Liquid temperature range | 5 .. 104 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor type | MS6000 |
| Motor flange design | Grundfos |
| Rated power - P2 | 15 HP |
| Power (P2) required by pump | 15 HP |
| KVA code | G |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-220-230 V |
| Service factor | 1.15 |
| Rated current | 53.5-50.5-49.5 A |
| Starting current | 390-440-480 % |
| Cos phi - power factor | 0.85-0.83-0.82 |
| Rated speed | 3430-3460-3470 rpm |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Thermal protec | external |
| Built-in temperature transmitter | yes |
| Cable number | N/A |
| Windings | Enamelled |
| Minimum efficiency index, MEI ≥ | -.-- |
| DOE Pump Energy Index CL | 0.92 |
| Net weight | 143 lb |
| Gross weight | 200 lb |
| Shipping volume | 7.06 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2004 |
