Please note this item is assembled to order and additional lead-times may apply.

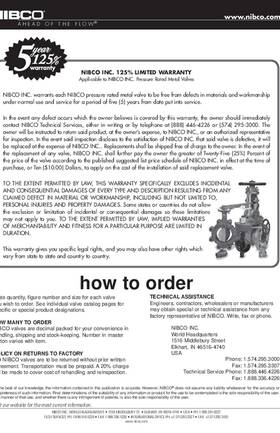

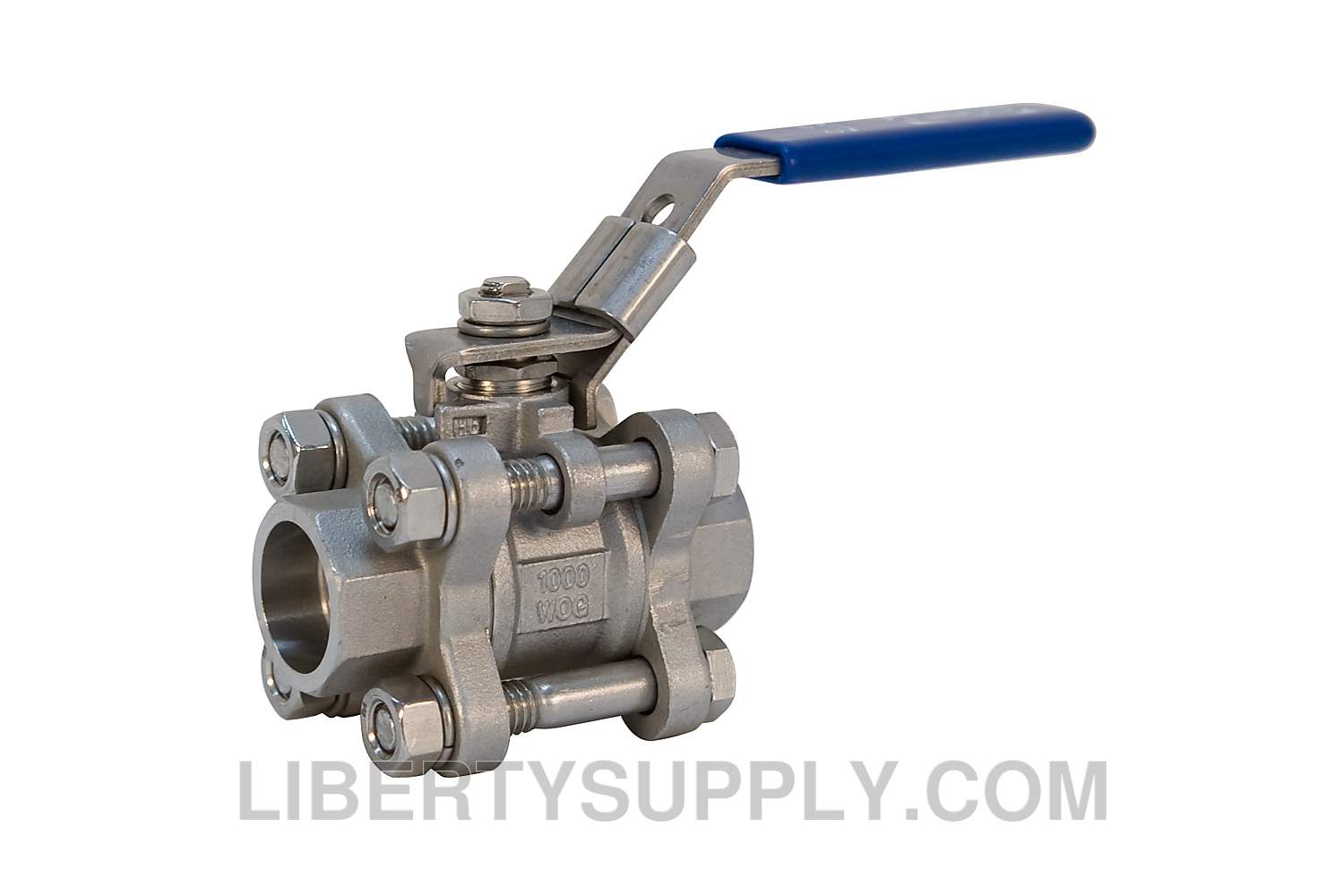

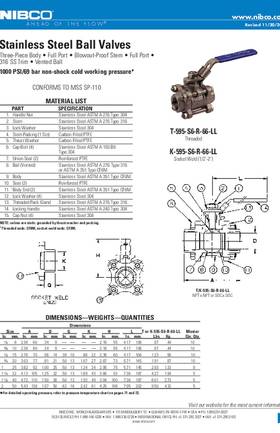

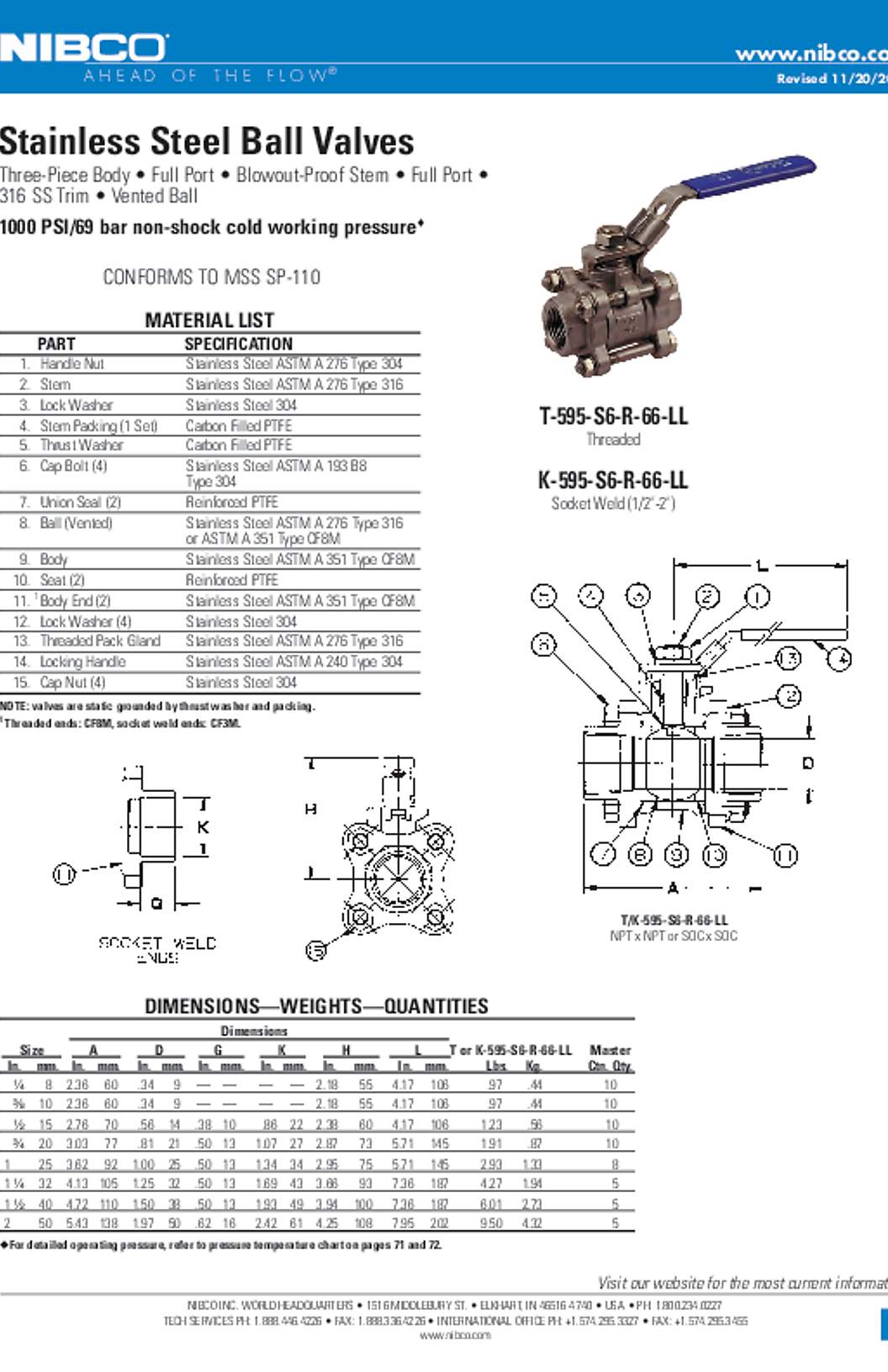

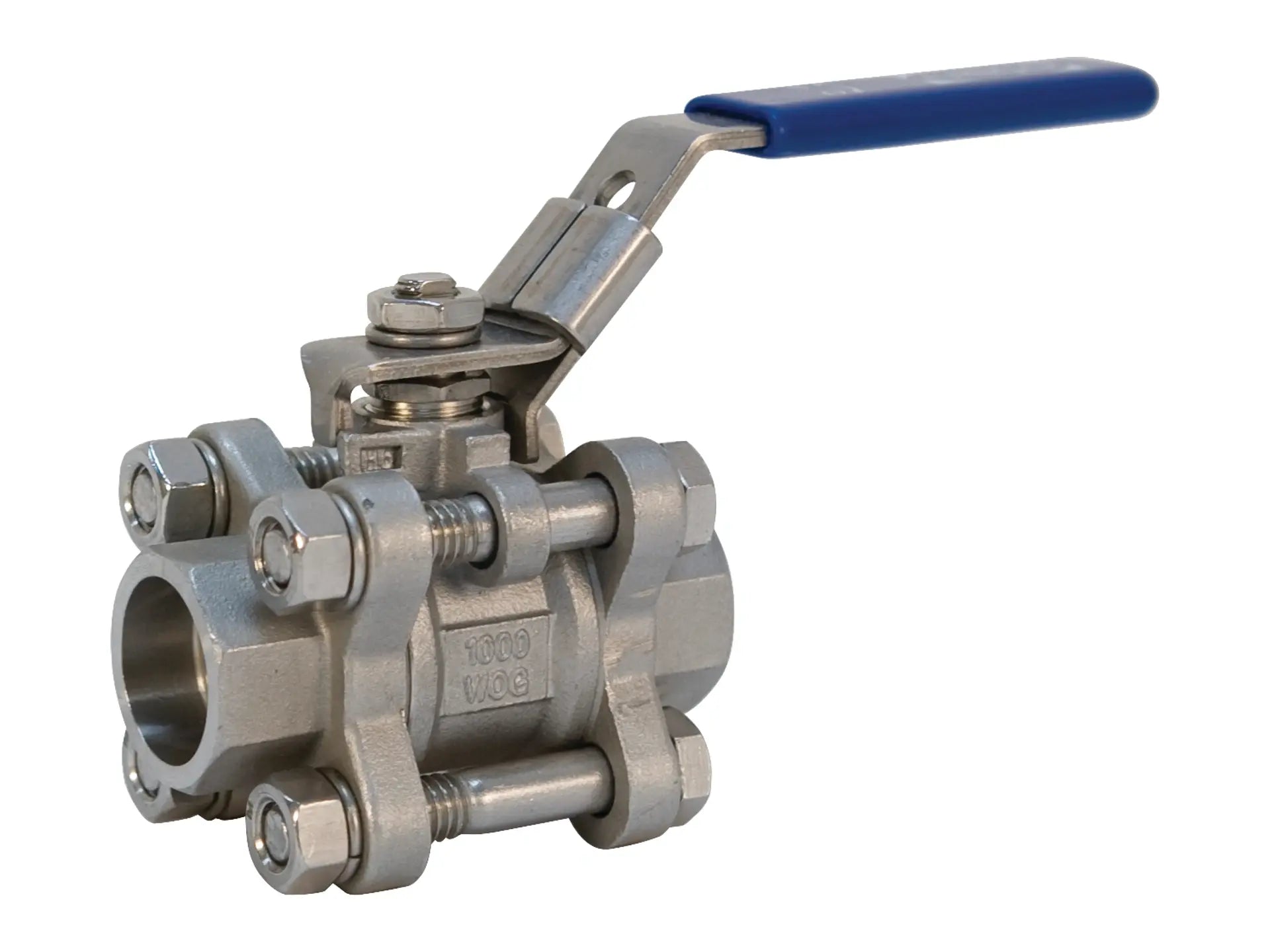

This NIBCO stainless steel ball valve provides bubble-tight shutoff at 1000 psi. This valve features threaded ends for easy installation. The three-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security. It may be used for isolation and throttling (half open to full open only). This NIBCO stainless steel ball valve provides ease of operation with quarter-turn (90°) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Full port
- Blowout-proof stem
- Stainless steel ball and stem
- Vented ball
- Locking lever handle
- Threaded end connections
- Conforms to MSS SP-110
