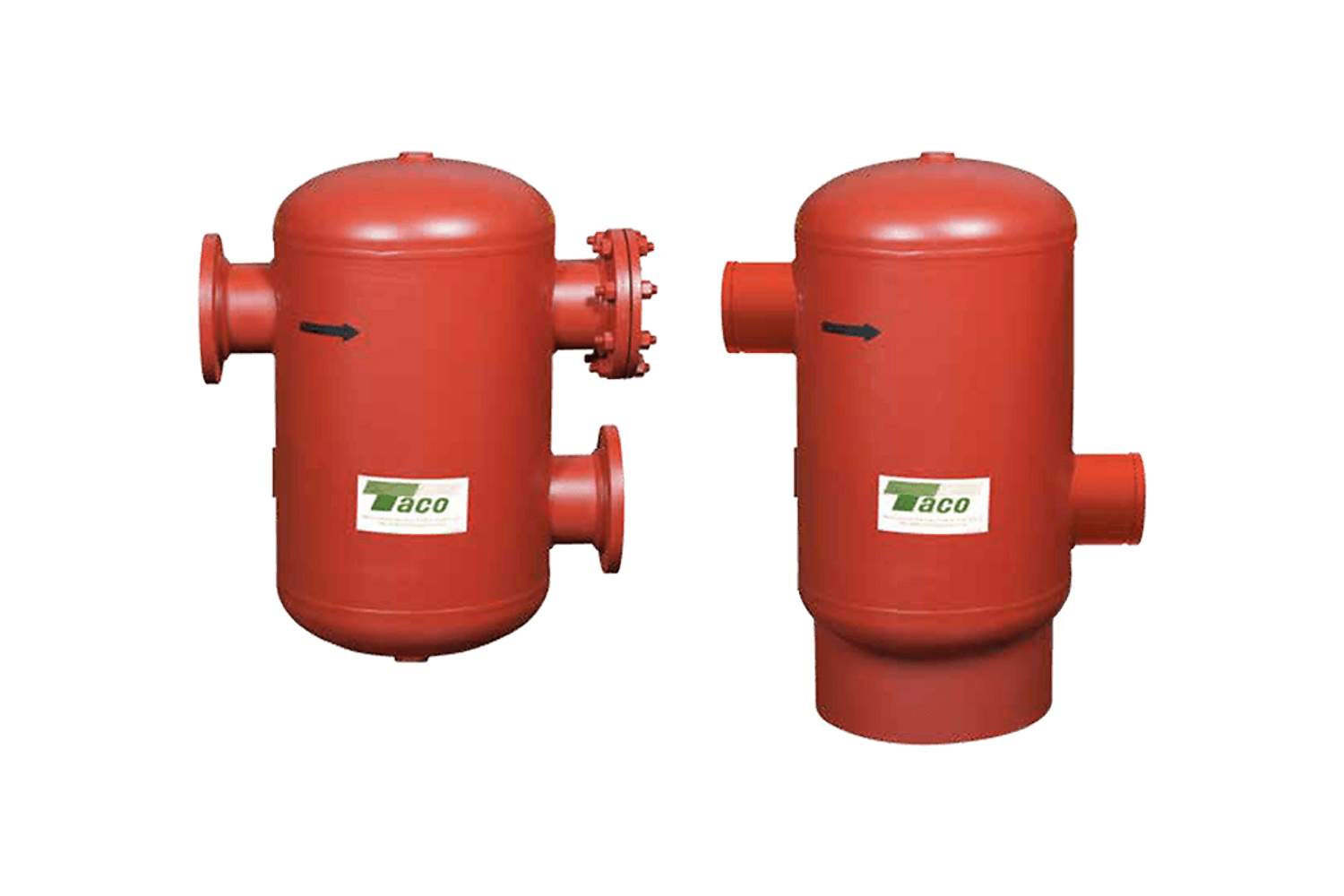

This Taco AC/ACF Series In-Line Air Separator, Model ACG08, is designed to effectively remove air from hydronic systems. The 10" grooved connection and base ring ensure easy installation and secure mounting. With a maximum working pressure of 125 psi, this air separator is suitable for a wide range of applications. The unique design of the AC/ACF series allows for efficient removal of microbubbles and small particles that can cause damage to system components. As fluid enters the separator, it is forced through a coalescing medium which promotes the separation of air and other gases from the liquid. The separated air then rises to the top of the unit and is vented through an automatic air vent. This process ensures that only pure fluid remains in the system, improving overall system efficiency and reducing maintenance costs over time.
AC/ACF Series Overview
Taco AC/ACF Series In-Line Air Separators deliver quality and performance through their internal baffle design. AC/ACF Series In-Line Air Separators work well in constant and variable flow systems.
Features & Benefits
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Available with removable stainless strainer
- Higher maximum pressures available
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
