13.5 mm |
| Ambient temperature |
-40°F to 80°C |
| Ambient temperature range [°F] [Max] |
175°F |
| Ambient temperature range [°F] [Min] |
-40°F |
| Approvals |
EAC, LLC CDC EURO-TYSK, UL |
| Body material |
Brass |
| Coil |
No |
| Cv value [gal/min] |
2.6 gal/min |
| Direction |
Straightway |
| Fluid Groups |
1, 2 |
| Function |
NC |
| Inlet connection type |
Solder, ODF |
| Inlet size [in] |
5/8 in |
| Inlet size [mm] |
16 mm |
| Kv value [m³/h] |
2.2 m³/h |
| Lubricants compatibility |
AB, MO, PAG, PAO, POE, PVE |
| Manual operation option |
No |
| Max. Working Pressure [bar] |
45.2 bar |
| Max. Working Pressure [psig] |
655 psig |
| MaxOPD[bar] 10W AC |
38 bar |
| MaxOPD[bar] 20W DC |
20 bar |
| MaxOPD[bar] coil BJ/BX |
38 bar |
| MaxOPD[psi] 10W AC |
550 psi |
|
MaxOPD[psi] 20W DC
|
290 psi |
| MaxOPD[psi] coil BJ/BX |
550 psi |
| Medium temperature range [°C] [Max] |
105°C |
| Medium temperature range [°C] [Min] |
-40°C |
| Medium temperature range [°F] [Max] |
221°F |
| Medium temperature range [°F] [Min] |
-40°F |
| MinODP [bar] |
0.03 bar |
| MinODP [psi] |
0.44 psi |
| MOPD[bar/psi] |
COIL DEPENDEND |
| MWP [bar] PED compliant |
49 bar |
| Orifice size [mm] |
10 mm |
| Outlet connection type |
Solder, ODF |
| Outlet size [in] |
5/8 in |
| Outlet size [mm] |
16 mm |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Refrigerants |
R1234yf, R1234ze(E), R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a |
| Serviceable |
Solenoid valve spare parts |
| Type |

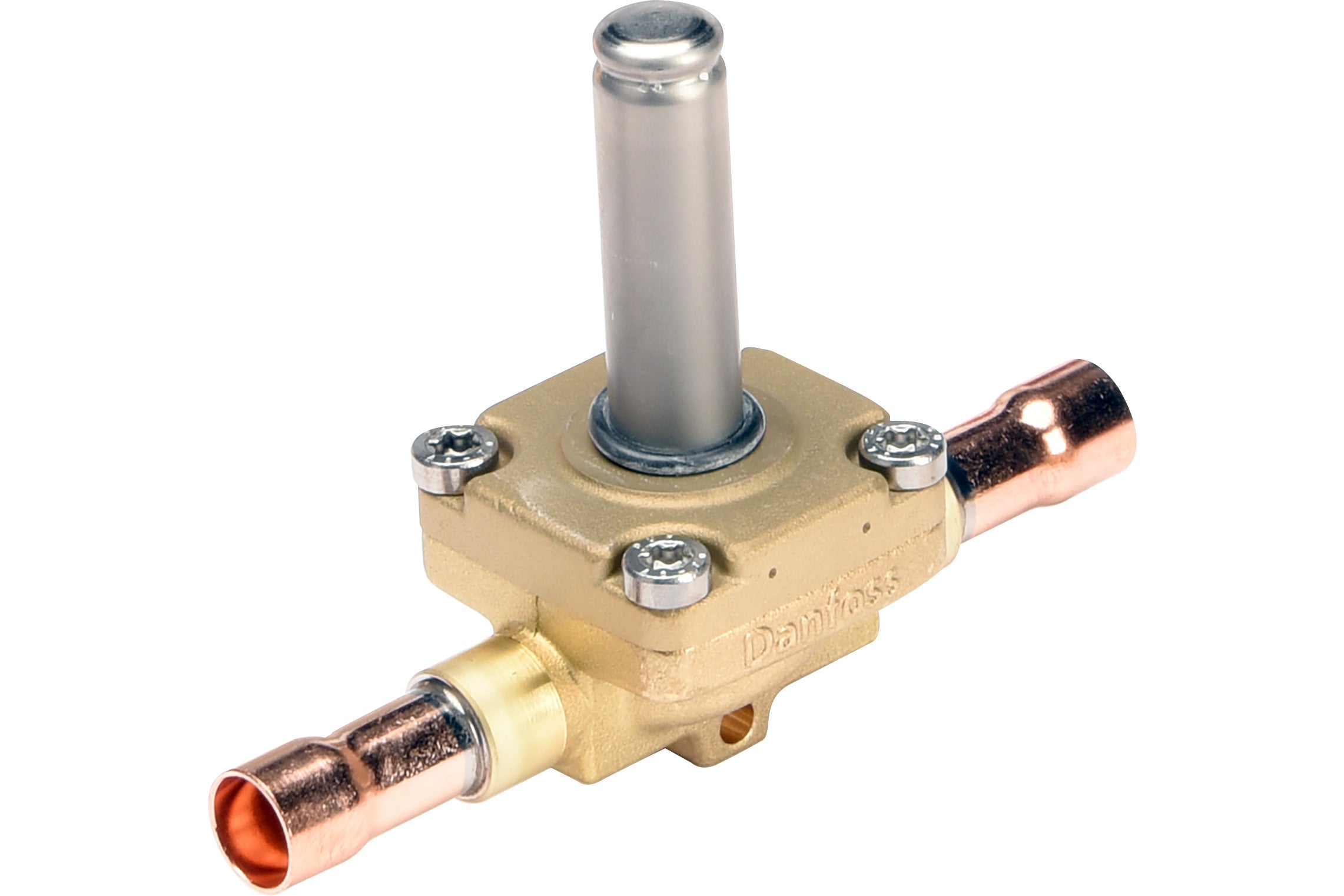

EVR 10 |
| UL approved refrigerants |
R125, R134a, R152a, R22, R290, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a |
| Valve operation |
SERVO-DIAPHRAGM |
