Description

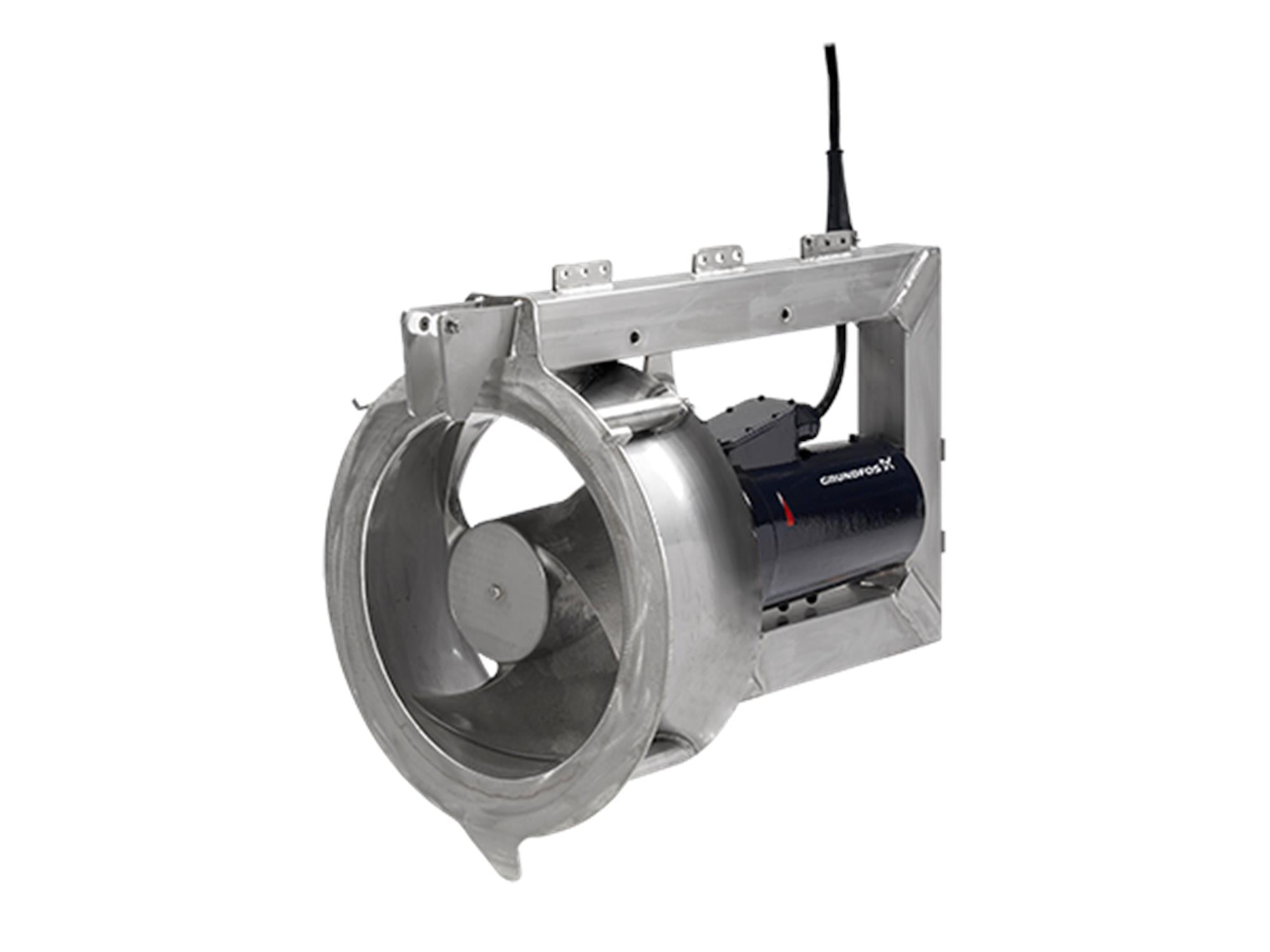

This recirculation pump is designed for pumping sludge between tanks in sewage treatment plants and other applications requiring high flow rates with low head.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 98798324 |
Maximum flow | 11500 US gpm |
Min flow | 6960 US gpm |
Propeller speed | 374 rpm |
Gear ratio | 4.571 |
Propeller diameter | 31.5 in |
Number of propeller blades | 3 |
Maximum propeller blade angle | 11 deg. |
Rated head | 6.398 ft |
Head min | 0.361 ft |
Maximum head | 6.398 ft |
Primary shaft seal | 2X RADIAL LIP SEALS |
Testing standard | ISO 9906 |
Motor | Cast iron, AISI EN-GJL-250 |
Propeller | 1.4581 |
Hub | AISI 1.4581 |
Flange | Stainless steel, DIN W.-Nr. 1.4306 |
Paint thickness | 450 micrometre |
Fits column profile tube, size | 60/60 mm |
Minimum liquid temperature | 41 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
pH-value range | 4-10 |
Power input - P1 | 21.7 kW |
Rated power - P2 | 26.8 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 460 V |
Voltage tolerance | +10/-10 % |
Max starts per. hour | 20 |
Rated current | 36 A |
Starting current | 211 A |
Cos phi - power factor | 0.79 |
Cos phi - p.f. at 3/4 load | 0.74 |
Cos phi - p.f. at 1/2 load | 0.62 |
Rated speed | 374 rpm |
Motor efficiency at full load | 92.3 % |
Motor efficiency at 3/4 load | 92.2 % |
Motor efficiency at 1/2 load | 91.6 % |
Number of poles | 4 |
Start. method | star/delta |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | H |
Explosion proof | no |
Built-in motor protection | PTO (THERMAL SWITCH) |
Power cable type | H07RN-F 7G4+4X1 |
Length of power cable | 49 ft |
Power plug | NO |
Moisture sensor | without moisture sensors |
Water-in-oil sensor | with water-in-oil sensor |
Net weight | 955 lb |
