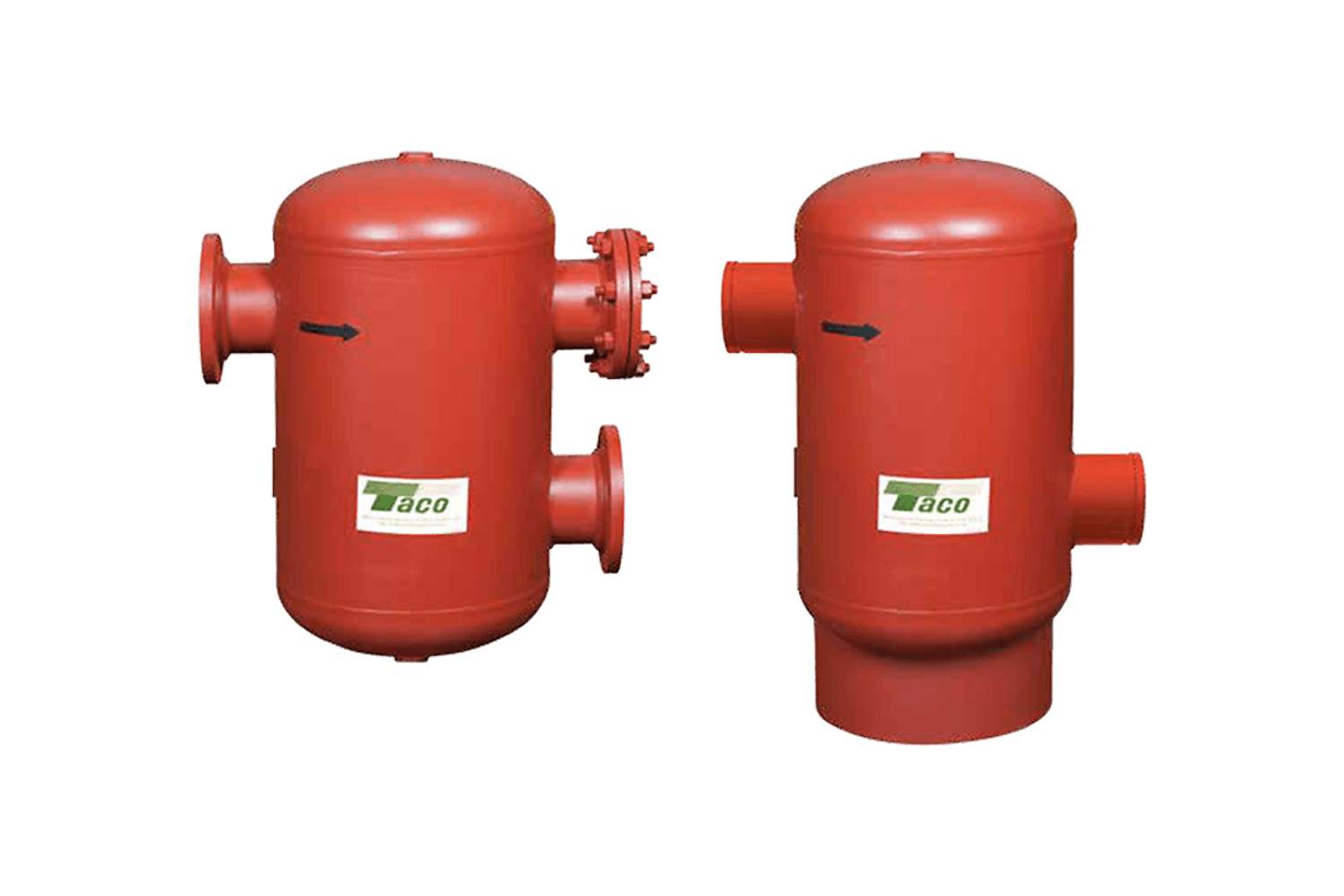

This Taco AC/ACF Series In-Line Air Separator, Model AC06, is a hydronic system component that removes air and debris from the circulating fluid. It is designed with a 6" flanged connection and can operate at a maximum pressure of 125 psi. The base ring provides stable mounting for the separator in the piping system. The AC/ACF Series In-Line Air Separator works by utilizing centrifugal force to separate air and debris from the fluid stream. As the fluid enters the separator, it is directed to spin around a helical baffle, causing heavier particles to be thrown towards the outer wall of the separator and lighter particles to be collected in the center. The air then rises to the top of the separator where it is vented out through an automatic air vent. This product ensures efficient operation of hydronic systems by preventing corrosion, increasing energy efficiency, and extending equipment life.
AC/ACF Series Overview
Taco AC/ACF Series In-Line Air Separators deliver quality and performance through their internal baffle design. AC/ACF Series In-Line Air Separators work well in constant and variable flow systems.
Features & Benefits
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Available with removable stainless strainer
- Higher maximum pressures available
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
