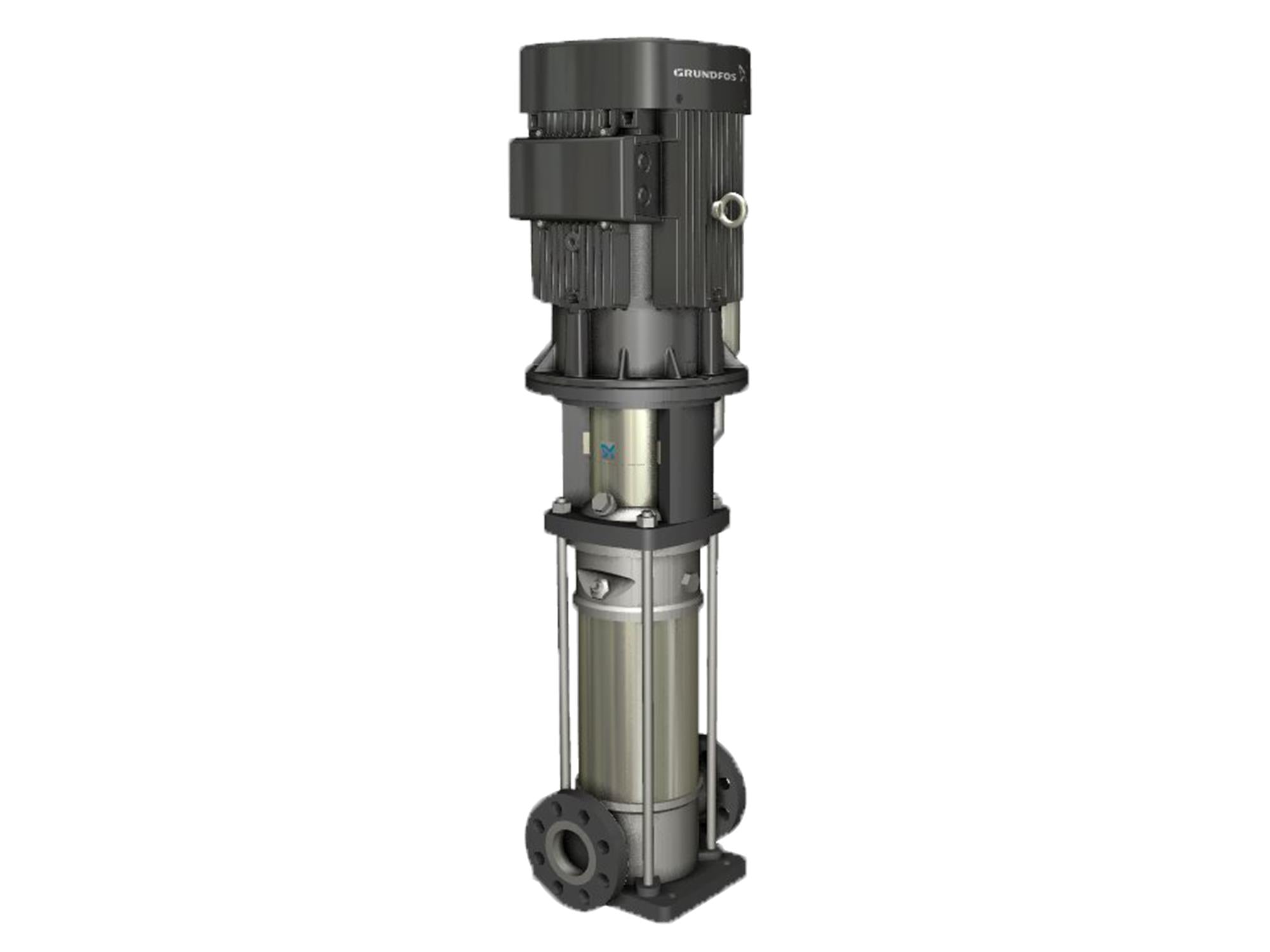

Grundfos 99508659, CRI 10-8 BFK-FGJ-A-F-HQQE Vertical Multistage Pump

SKU: LSIJBM4AUA Part Number: 99508659

Price:
Sale price$10,035.95 Regular price$14,978.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made of stainless steel (EN 1.4301). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99508659
Rated pump speed 3482 rpm
Rated flow 53.3 US gpm
Rated head 295.3 ft
Maximum head 357.6 ft
Actual impeller diameter 3.66 in
Stages 8
Impellers 8
Number of reduced-diameter impellers 0
Low NPSH Y
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version BFK
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 356 °F, 362.59 psi / 14 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 213TC
Connect code FGJ
Liquid temperature range 14 .. 356 °F
Motor standard NEMA
Frequency converter None
Pressure sensor N
DOE Pump Energy Index CL 0.93
Net weight 115 lb
Gross weight 236 lb
Shipping volume 13.1 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
