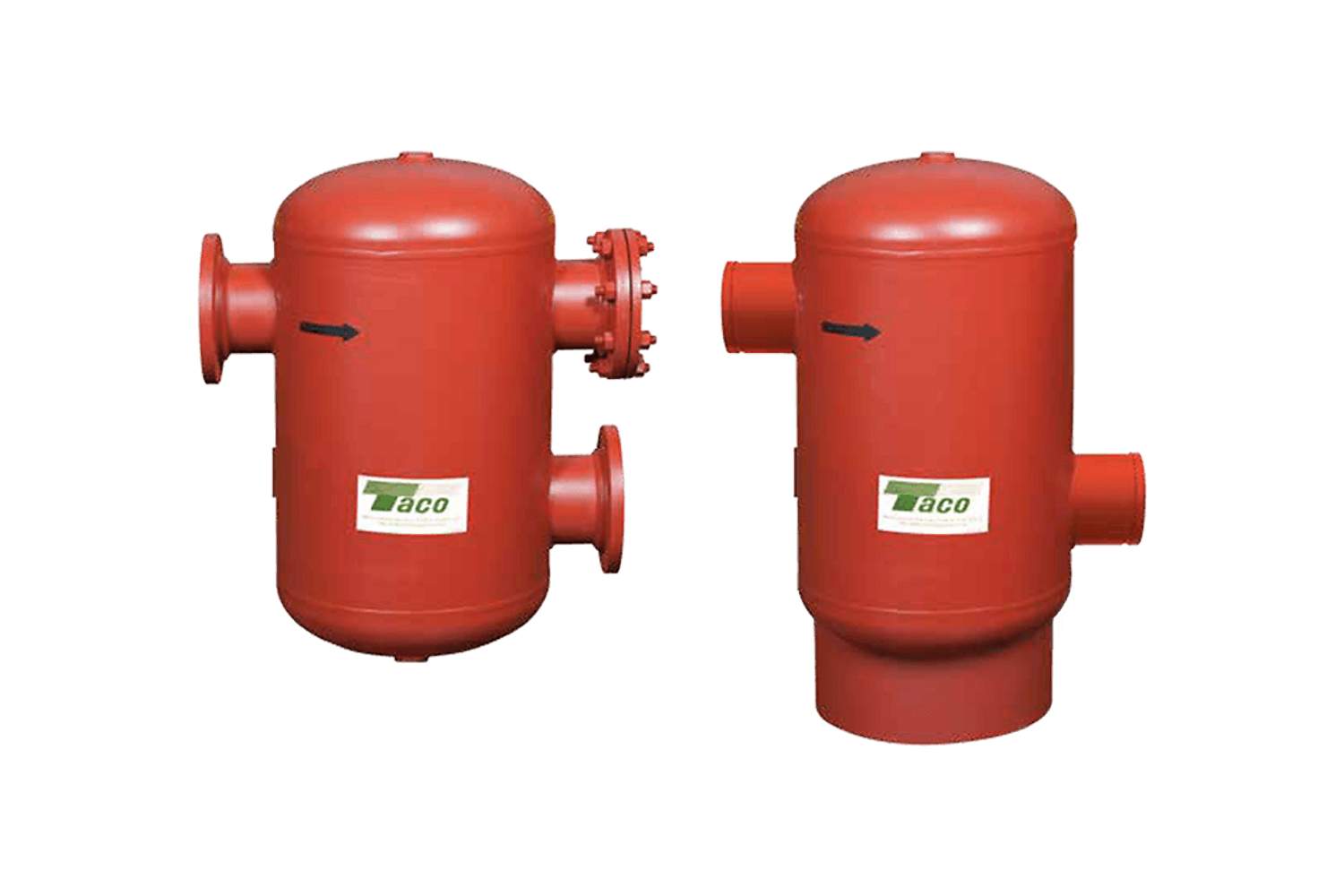

This Taco AC/ACF Series In-Line Air Separator, Model AC20, is a highly efficient component for hydronic systems that helps to eliminate air and dirt from the circulating fluid. The separator features a flanged connection with a 20-inch diameter and is designed for use with large commercial and industrial applications. The separator works by creating a low-velocity zone where air and dirt particles can be separated from the fluid, which then rises to the top of the separator and is released through an automatic air vent. This process ensures that the hydronic system operates at peak performance by reducing pressure drop, increasing heat transfer efficiency, and preventing damage to pumps, valves, and other components. The Taco AC/ACF Series In-Line Air Separator is made of high-quality materials to ensure long-lasting durability and reliable performance in even the most demanding applications.
AC/ACF Series Overview
Taco AC/ACF Series In-Line Air Separators deliver quality and performance through their internal baffle design. AC/ACF Series In-Line Air Separators work well in constant and variable flow systems.
Features & Benefits
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Available with removable stainless strainer
- Higher maximum pressures available
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
