Description
Please note this item is assembled to order and additional lead-times may apply.

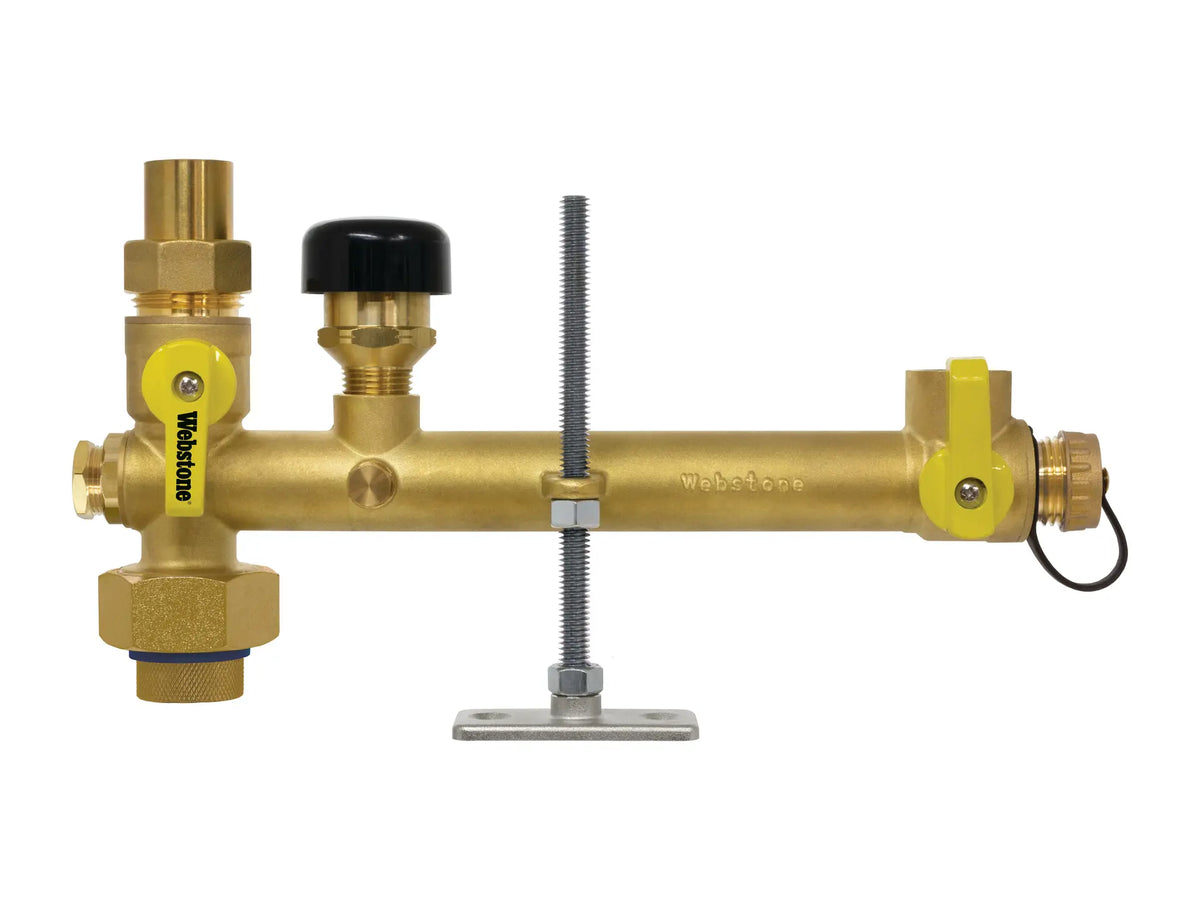

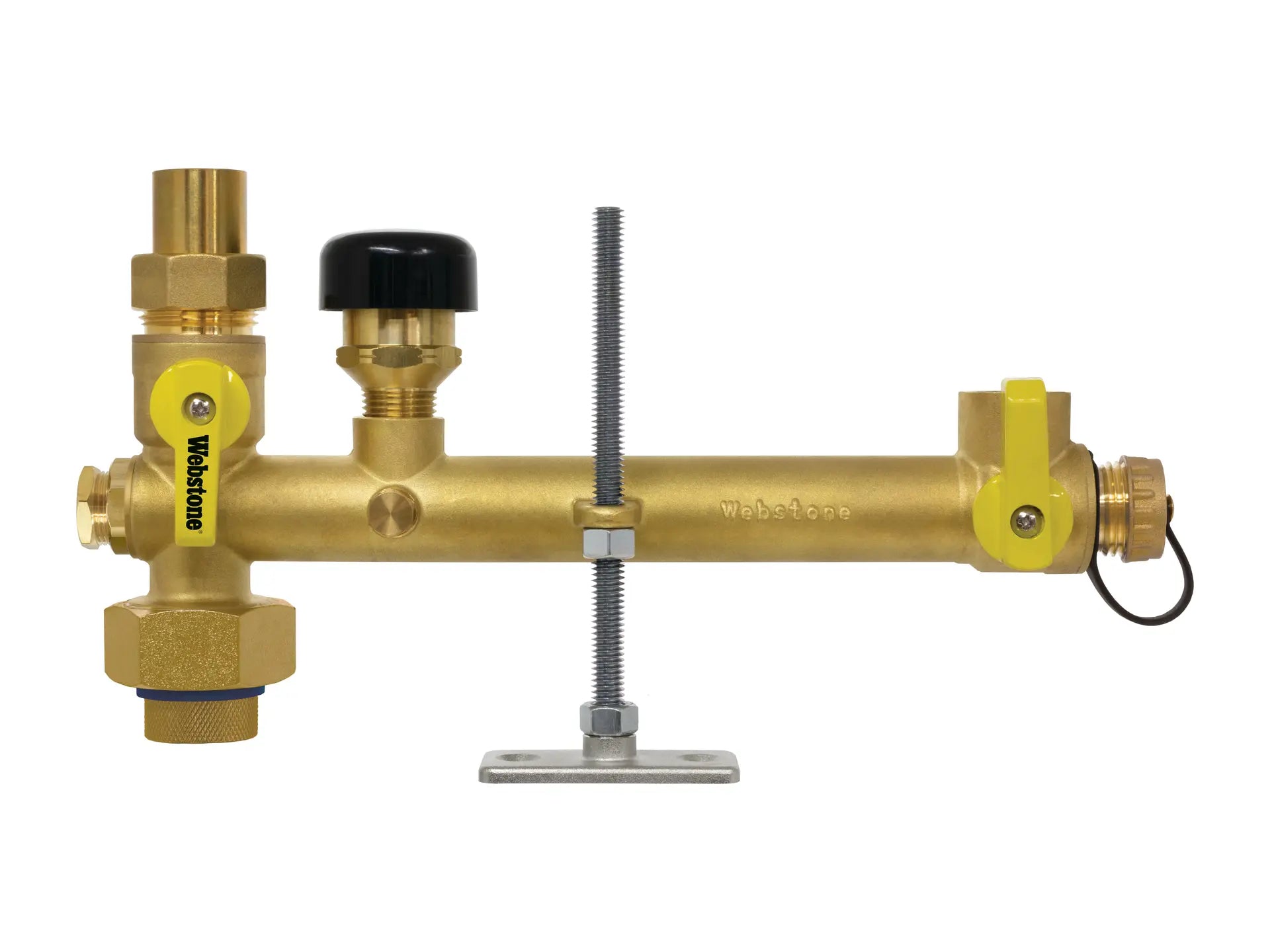

Pro-Pal water heater supply valve, with expansion tank service, full port dezincification-resistant brass ball with union end, with 3/4" expansion tank port and hi-flow hose drain, three plugged FIP ports (1/2", 1/2" and 1/8"). Includes vacuum relief valve and mounting hardware Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal series valves. The Pro-Pal water heater supply valve combines multiple components into a single, forged dezincification-resistant brass solution to upgrade your next water heater installation. Designed for use with water in residential or commercial plumbing systems. refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
Features
- Simplifies storage tank water heater installations
- FIP brass union for connection to the water heater
- Integrated valves isolate the water supply and expansion tank for service
- 1/2" FIP cold water tapping for water heater tempering valve
- 1/2" FIP port for installation of vacuum relief valve, and 1/8" plugged gauge port
- Compatible with 3/4" MIP expansion tanks up to 5 gallons
- Includes support hardware and vacuum relief valve
- Compact version available if expansion tank is not required
- Saves 135 minutes
- Replaces 16 components
- Eliminates 15 leak paths
- This valve is actuated by a blowout proof stem
- Double O-ring Stem Seals
- Models available to satisfy all state and federal low-lead laws
- Patents pending
- Available in FIP Union x SWT x FIP x Hose, FIP Union x Push x FIP x Hose, FIP Union x Press x FIP x Hose, FIP Union x MIP x FIP x Hose, FIP Union x FIP x FIP x Hose, FIP Union x G-Thread x FIP x Hose
- Certified to NSF/ANSI 61 & 372
Specifications
| Manufacturer | Webstone |
|---|---|
| Part Number | H-52652W-VR |
| Model | SWT-X265W-VR |
| Application(s) | Lead-Free |
| System Use | Commercial Plumbing, Residential Plumbing |
| Basic Material | LF DZR Brass |
| Nominal Pipe Size | 1/2" x 3/4" x 3/4" x 3/4" |
| Type of Valve | Combination Ball |
| Valve End Connection Type | FIP Union x SWT x FIP x Hose |
| End Connection | Push |
| Old Material Number | 52652WVR |
| UPC | 018394026223 |
| Length | 12.2" |
| Width | 5.12" |
| Height | 2.44" |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| CA Proposition 65 Warning Statement | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Notes and Disclaimer | P65-Lead |
