Grundfos 49Z90204, TP50-40/4 AGA RUUE .33HP 3X208T TEF Pump

Roll over image to zoom in Click on image to zoom

Grundfos 49Z90204, TP50-40/4 AGA RUUE .33HP 3X208T TEF Pump

Name: Grundfos 49Z90204, TP50-40/4 AGA RUUE .33HP 3X208T TEF Pump
Brand: Grundfos
SKU: LSIJV34HF2
Price: 2578.95 USD
Availability: OutOfStock

SKU: LSIJV34HF2 Part Number: 49Z90204

Price:

$2,578.95 $3,849.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

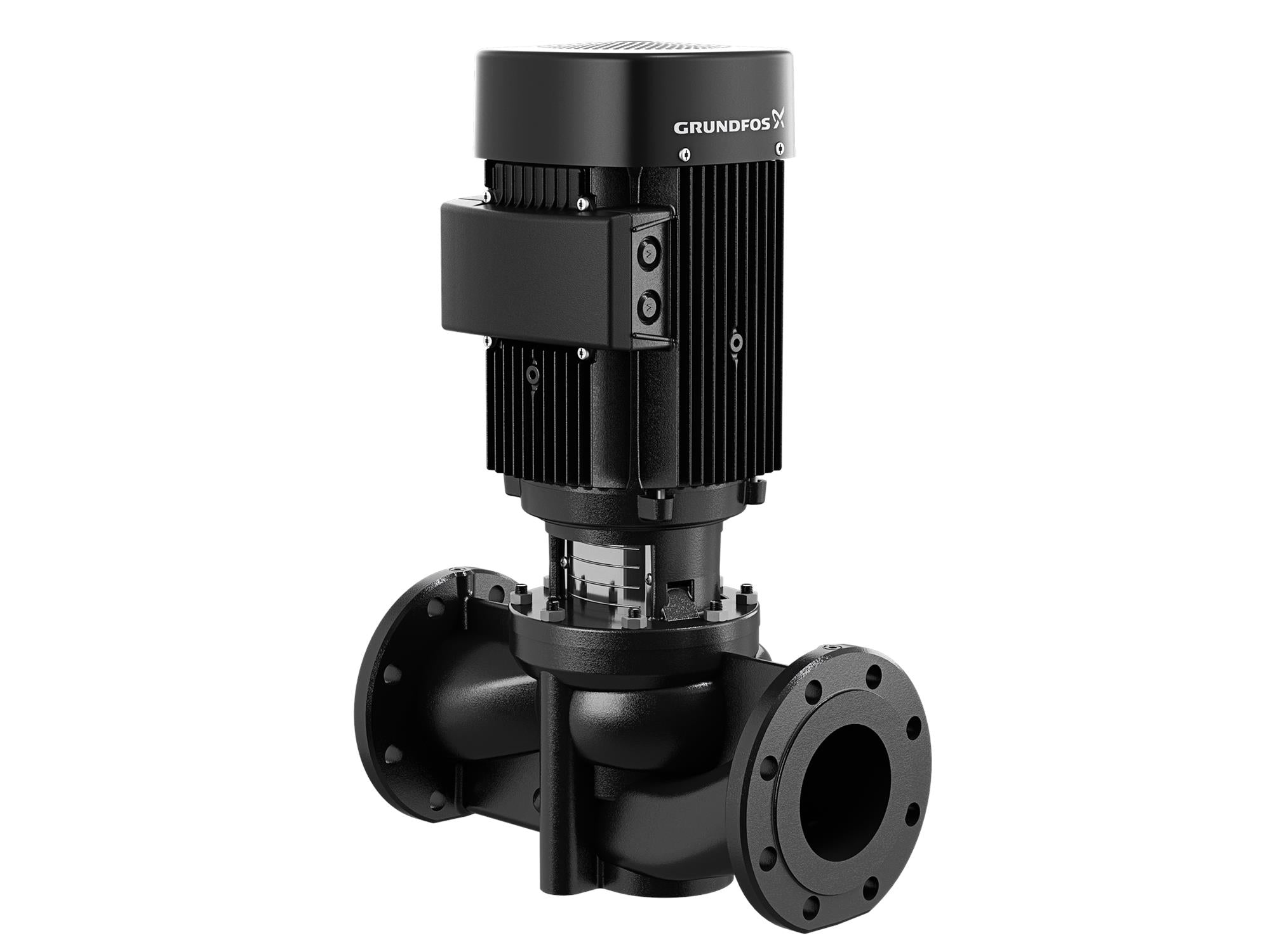

This inline single-stage pump is a TP50-40/4 AGA RUUE model with a .33HP motor. It is a single-stage, close-coupled in-line centrifugal pump with a mechanical shaft seal and fixed speed motors, primarily used for heating, cooling, and district energy applications.

Manufacturer	Grundfos
Part Number	49Z90204
Rated flow	70.4 US gpm
Rated head	10.17 ft
Primary shaft seal	RUUE
Approvals on motor nameplate	UL Recognized Component, CSA
Curve tolerance	ISO9906:2012 3B2
Pump Number	96405261
Pump housing	Cast iron, EN-JL1040, ASTM 25 B
Impeller	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Range of ambient temperature	-22 .. 131 °F
Maximum operating pressure	145.04 psi
Flange standard	USA
Pipe connection	2"
Pumped liquid	Water
Liquid temperature range	-13 .. 140 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	BALDOR
Rated power - P2	0.33 HP
KVA code	M
Main frequency	60 Hz
Rated voltage	3 x 208-230/460 V
Service factor	1.35
Rated current	1,9-1,6/0,8 A
Full load SF current	1.8/.9 A
Rated speed	1725 rpm
Insulation class (IEC 85)	B
Built-in motor protection	NONE
Gross weight	59 lb
Shipping volume	1.98 ft³
Country of origin	US
Custom tariff no.	8413.70.2025

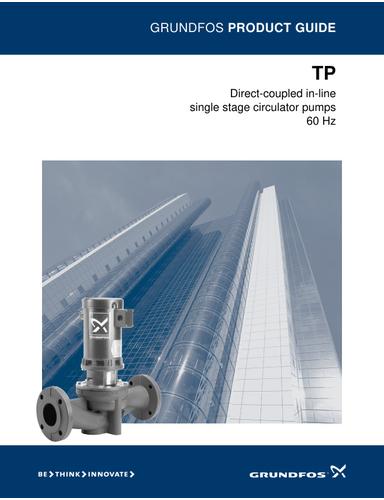

VersaFlo® (TP circulator pumps) (Data booklet)

VersaFlo® TP (I & O instructions)

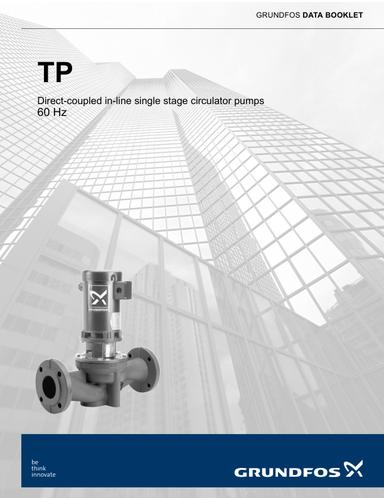

TP, Direct-coupled in-line single stage circulator pumps (Data booklet)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
