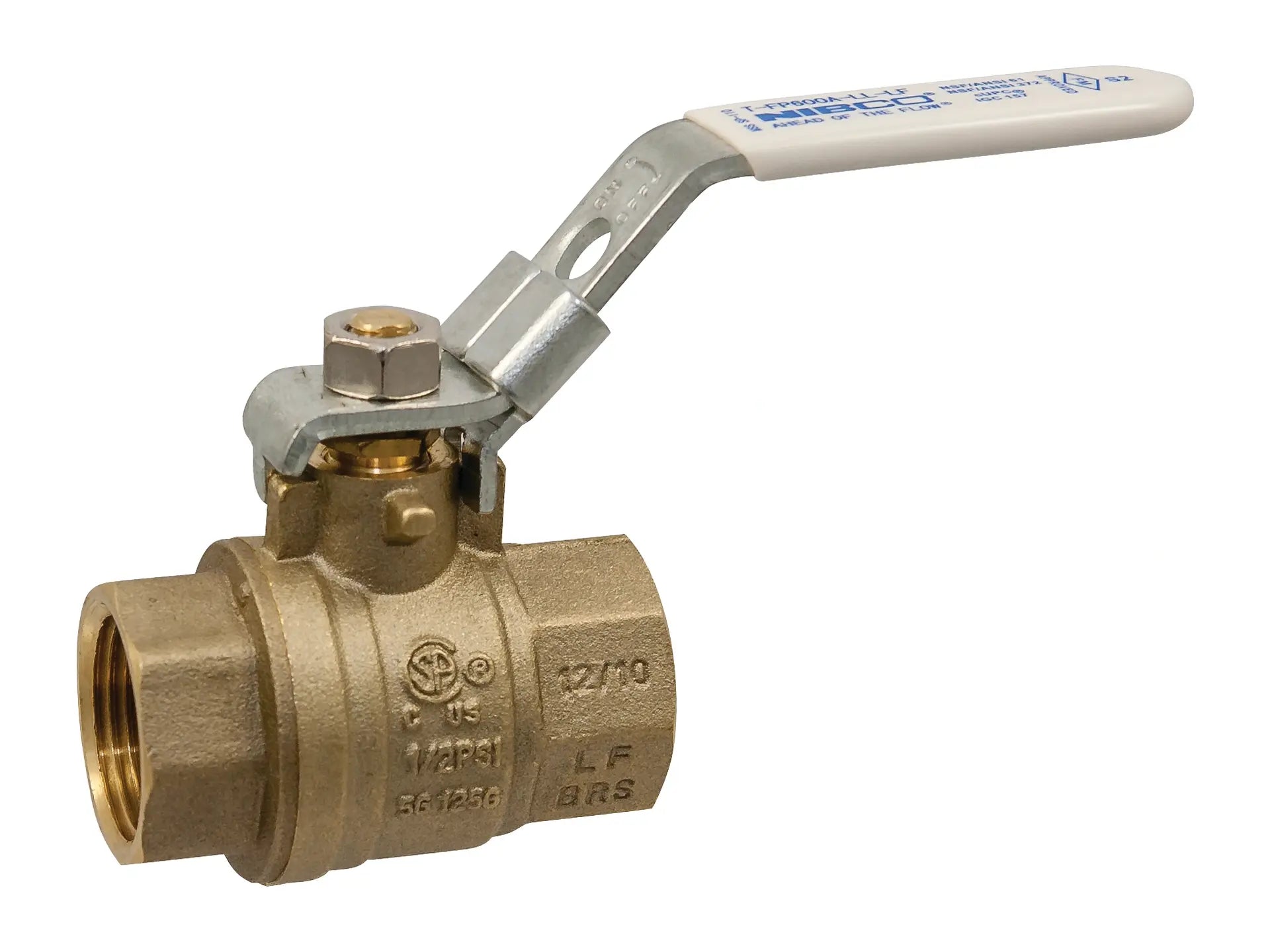

NIBCO T-FP-600A-LF-LL 2" FIPT LF Ball Valve NL998XLD

SKU: LSIJW87D82 Part Number: NL998XLD Model: T-FP-600A-LF-LL

Price:
Sale price$140.95 Regular price$317.23

Save 56% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

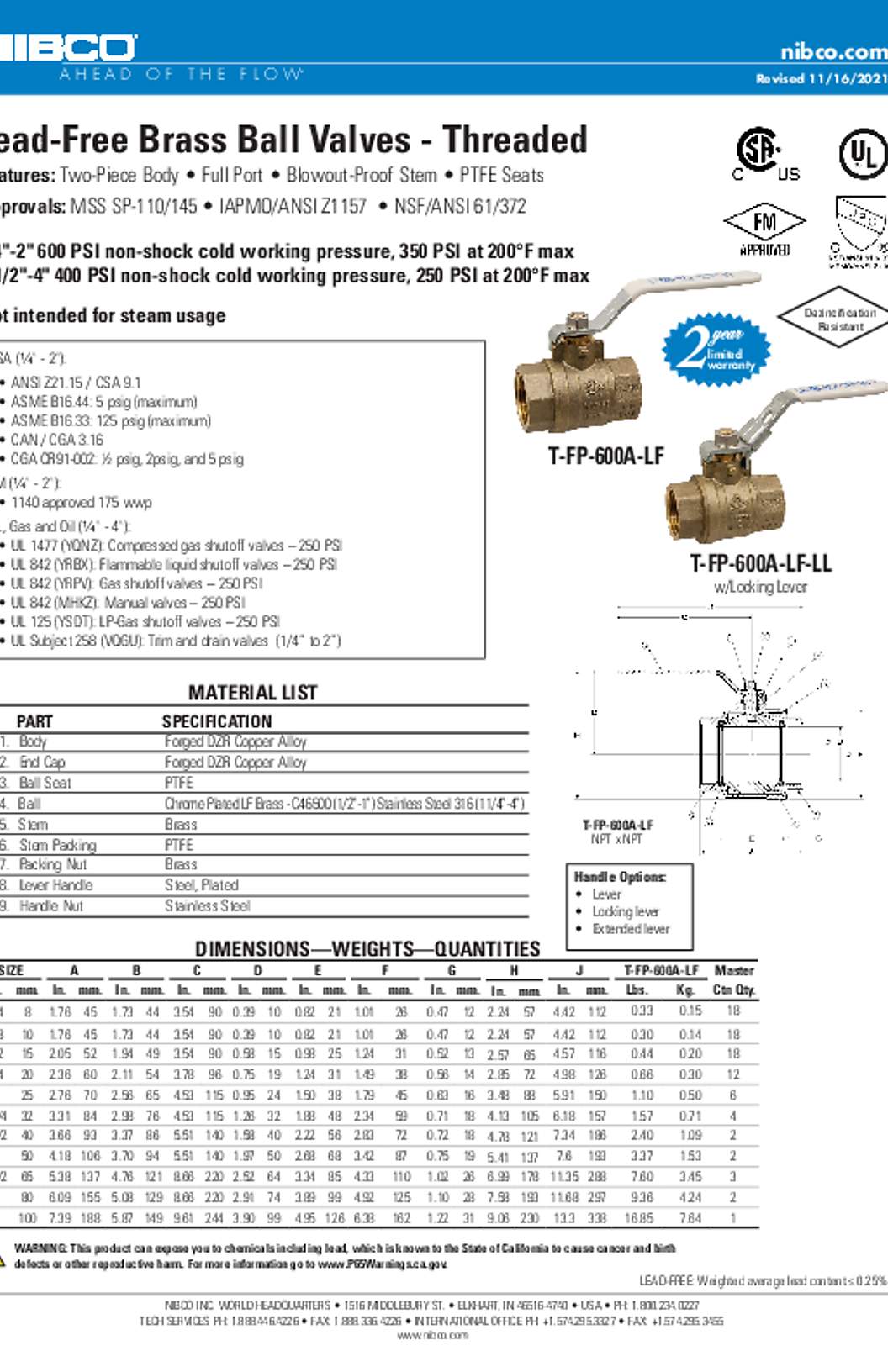

This NIBCO lead-free with threaded end connections provides bubble-tight shutoff. The valve's PTFE seats and lead-free water and gas applications. This NIBCO lead-free with quarter-turn (90°) open to close. The two-piece valve features threaded end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.

Features

  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
  • Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
  • Full port
  • Blowout-proof stem
  • Locking lever handle
  • Threaded end connections
  • IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157
  • CSA ANSI Z21.15 / CSA 9.1 (1/4" to 4")
  • CSA ASME B16.44: 5 psig (maximum) (1/4" to 4")
  • CSA ASME B16.33: 125 psig (maximum) (1/4" to 4")
  • CSA CAN / CGA 3.16 (1/4" to 4")
  • CSA CGA CR91-002: 1/2 psig, 2 psig, and 5 psig (1/4" to 4")
  • FM 1140 approved 175 wwp (1/4" to 2")
  • UL 1477 (YQNZ): Compressed gas shutoff valves – 250 psi (1/4" to 4")
  • UL 842 (YRBX): Flammable liquid shutoff valves – 250 psi (1/4" to 4")
  • UL 842 (YRPV): Gas shutoff valves – 250 psi (1/4" to 4")
  • UL 842 (MHKZ): Manual valves – 250 psi (1/4" to 4")
  • UL 125 (YSDT): LP-Gas shutoff valves – 250 psi (1/4" to 4")
  • UL Subject 258 (VQGU): Trim and drain valves (1/4" to 2")

Specifications

Manufacturer NIBCO
Part Number NL998XLD
Model T-FP-600A-LF-LL
Series T-FP600A-LF-LL
Type of Valve Ball
Nominal Pipe Size 2"
End Connection Type T -- Female NPT Thread (FIPT)
Material Lead-Free Brass
Ball Body Type Two-Piece
Ball Operator CS Locking Lever Handle
Ball Port Style Full Port
Turns Operations Quarter-Turn
Potable Water Code LL Compliant NSF/ANSI 372
UPC Code 039923347718
Length 7.8"
Width 5.54"
Height 3.43"
Country of Origin CN
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
