Description

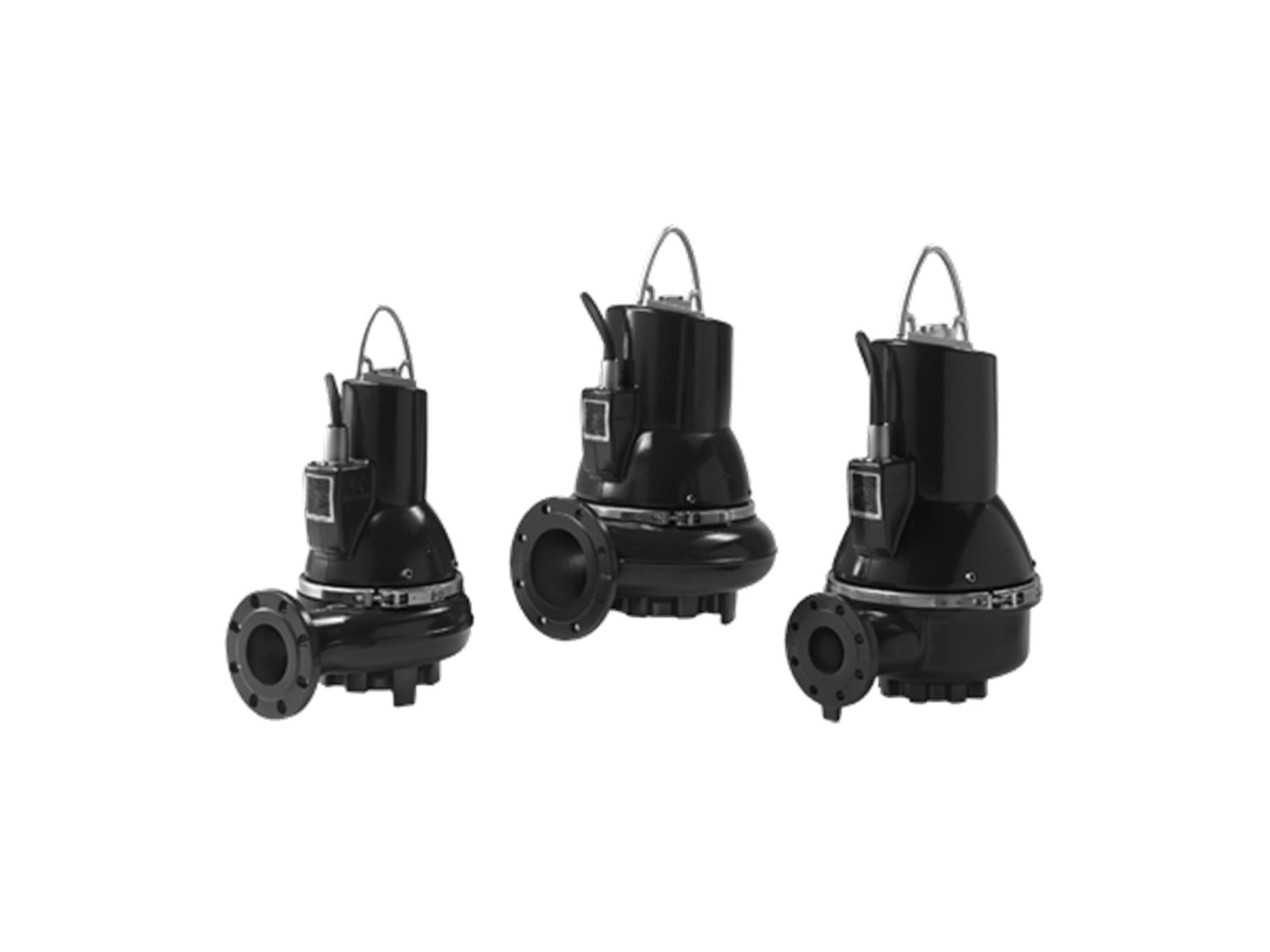

This submersible wastewater pump is designed for commercial and industrial applications, including flood control and wastewater treatment. It has an S-tube impeller with a free passage varying from 50-100 mm, depending on the size.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 99034731 |
Maximum flow | 837 US gpm |
Maximum head | 67.92 ft |
Type of impeller | S-TUBE |
Free passage | 3.15 in |
Primary shaft seal | SIC/SIC |
Approvals | CSA, FM |
Curve tolerance | ANSI/HI11.6:2017 3B2 |
Cooling jacket (Yes/No) | N |
Pump housing | Cast iron, EN 5.1301 EN-GJL-250, ASTM A48-250B |
Impeller | Cast iron, EN 5.1301 EN-GJL-250, ASTM A48-250B |
Motor | EN-GJL-250 |
Range of ambient temperature | -4 .. 104 °F |
Maximum operating pressure | 87.02 psi |
Type of inlet connection | ANSI |
Type of outlet connection | ANSI |
Size of inlet connection | DN 100 |
Size of outlet connection | DN 80 |
Pressure rating for connection | PN 10 |
Maximum installation depth | 39.4 ft |
Inst dry/wet | SUBMERGED |
Auto coupling | 97626239 |
Frame range | C |
Liquid temperature range | 32 .. 104 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Power input P1 | 8.45 HP |
Rated power - P2 | 7.5 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 208-230 V |
Voltage tolerance | +10/-10 % |
Max starts per. hour | 20 |
Rated current | 20.2-19.7 A |
Starting current | 149 A |
Cos phi - power factor | 0.86 |
Cos phi - p.f. at 3/4 load | 0.81 |
Cos phi - p.f. at 1/2 load | 0.73 |
Rated speed | 1763 rpm |
Motor efficiency at full load | 89.6 % |
Motor efficiency at 3/4 load | 90.0 % |
Motor efficiency at 1/2 load | 88.9 % |
Number of poles | 4 |
Start. method | DOL |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | H |
Explosion proof | yes |
Built-in motor protection | THERMAL SWITCH |
Power cable type | SEOOW 600V |
Length of power cable | 49.2 ft |
Power plug | C/D |
Control box | not included |
Moisture sensor | with moisture sensors |
Water-in-oil sensor | without water-in-oil sensor |
Net weight | 348 lb |
Gross weight | 392 lb |
Country of origin | US |
Custom tariff no. | 8413.70.2004 |
