Acid capacity [g] |
12.46 g |
Acid capacity [oz] |
0.44 oz |
Activated alum/Molec sieve [%] |
20% / 80% |
Activated alumina [%] |
20% |
Approval |
UL |
Body material |
Steel |
Bracket |
No |
Connection material |
Copper |
Core |
Solid core |
Core Size code |
60 cu. in. |
Core type |
Solid core |
Drying Cap[Drops of Water]24°C |
R134a: 1777, R290: --, R32: 1495, R404A: 1851, R407C: 1725, R410A: 1608, R507: 1938 |
Drying Cap[Drops of Water]52°C |
R134a: 1627, R290: --, R32: 1376, R404A: 1753, R407C: 1590, R410A: 1431, R507: 1744 |
Filter application |
Std Moisture & Acid Capacity |
Flow Capacity KW |
R134a: 79.3, R290: 95.5, R32: 120.8, R404A: 55.8, R407C: 81.3, R410A: 82.5, R507: 54.1 |
Flow Capacity TR |
R134a: 22.5, R290: 27.2, R32: 34.4, R404A: 15.9, R407C: 23.1, R410A: 23.5, R507: 15.4 |
Flow direction indicator |
Label printed 1-way arrow |
Fluid Group |
2 |
Inlet 1 connection size [in] |
7/8 in |
Inlet connection type |
Solder, ODF |
LiqCap Cond (ARI 710-2009)[SI] |
Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
LiqCapCond (ARI 710-2009)[IMP] |
DELTA P=1PSI, tliq= 86°F, tvap=5°F |
Lubricants compatibility |
Oilfree applications |
Max. Working Pressure [bar] |
46 bar |
Max. Working Pressure [psig] |
667 psig |
Molecular sieve [%] |
80% |
Net volume [foz US] |
27.96 Fluid Ounce US |
Net volume [l] |
0.827 L |
Oil-free refrigerants |
R1234ze(E), R134a, R513A, R515A |
Outlet 1 connection size [in] |
7/8 in |
Outlet connection type |
Solder, ODF |
Refrigerants |
R1234yf, R125, R134a, R22/R407C, R23, R290, R32, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R600, R1234ze(E), R1233zd(E), R407H, R454A, R463A, R515B, R516A, R454C |
Serviceable |
No |
Shell volume [foz US] |
45.44 Fluid Ounce US |
Shell volume [l] |
1.34 L |
Solid core surface [cm²] |
680 cm² |
Solid core surface [in²] |
105.4 in² |
Solid core volume [cm³] |
517 cm³ |
Solid core volume [in³] |
31.54 in³ |
Temperature range [°C] [Max] |
70°C |
Temperature range [°C] [Min] |
-40°C |
Temperature range [°F] [Max] |
160°F |
Temperature range [°F] [Min] |
-40°F |

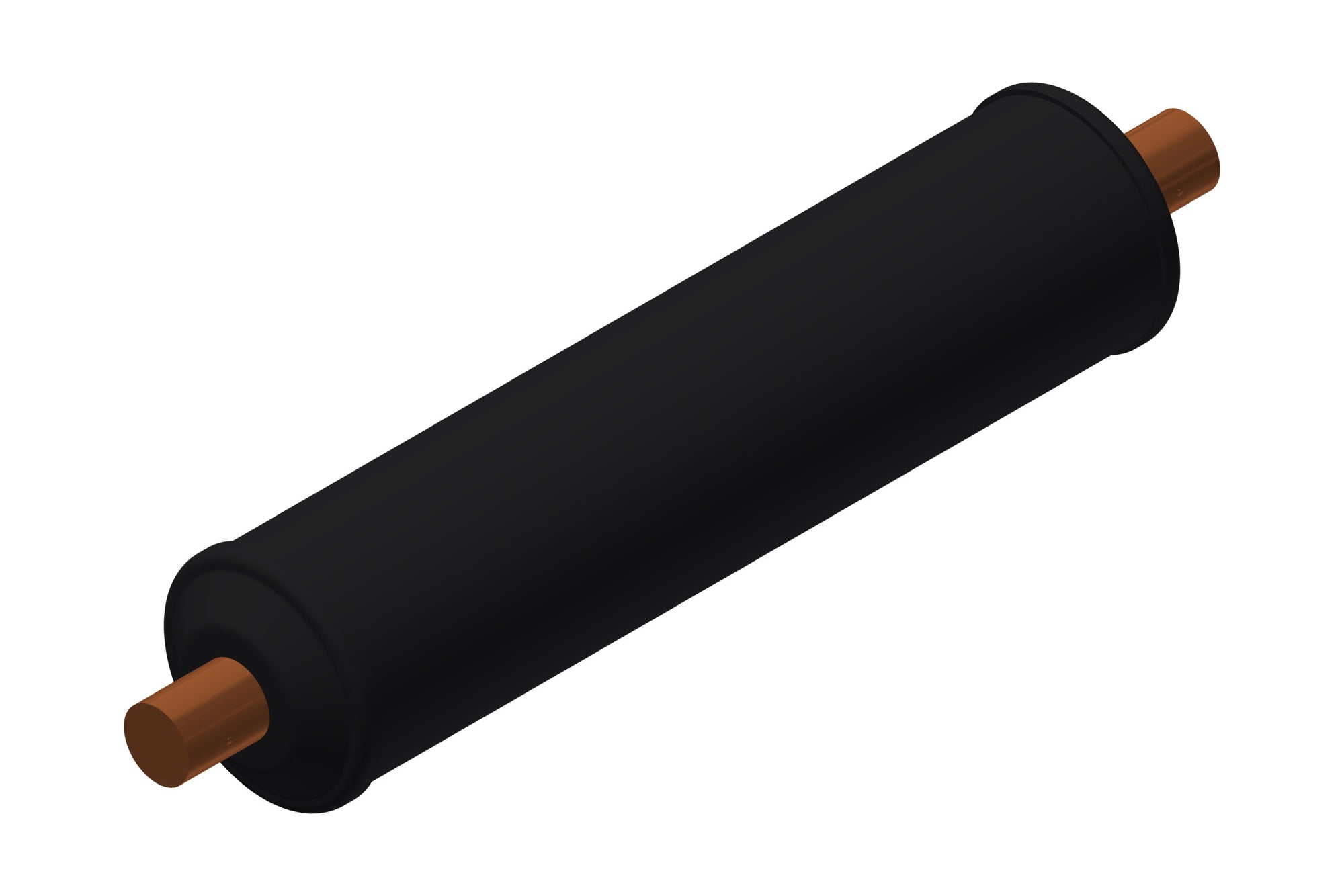

Type |
DCL |
Type designation |
DCL 607S |
UL approval file name |
SA6398 |
UL approved refrigerants |
R125, R134a, R22, R23, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A |
