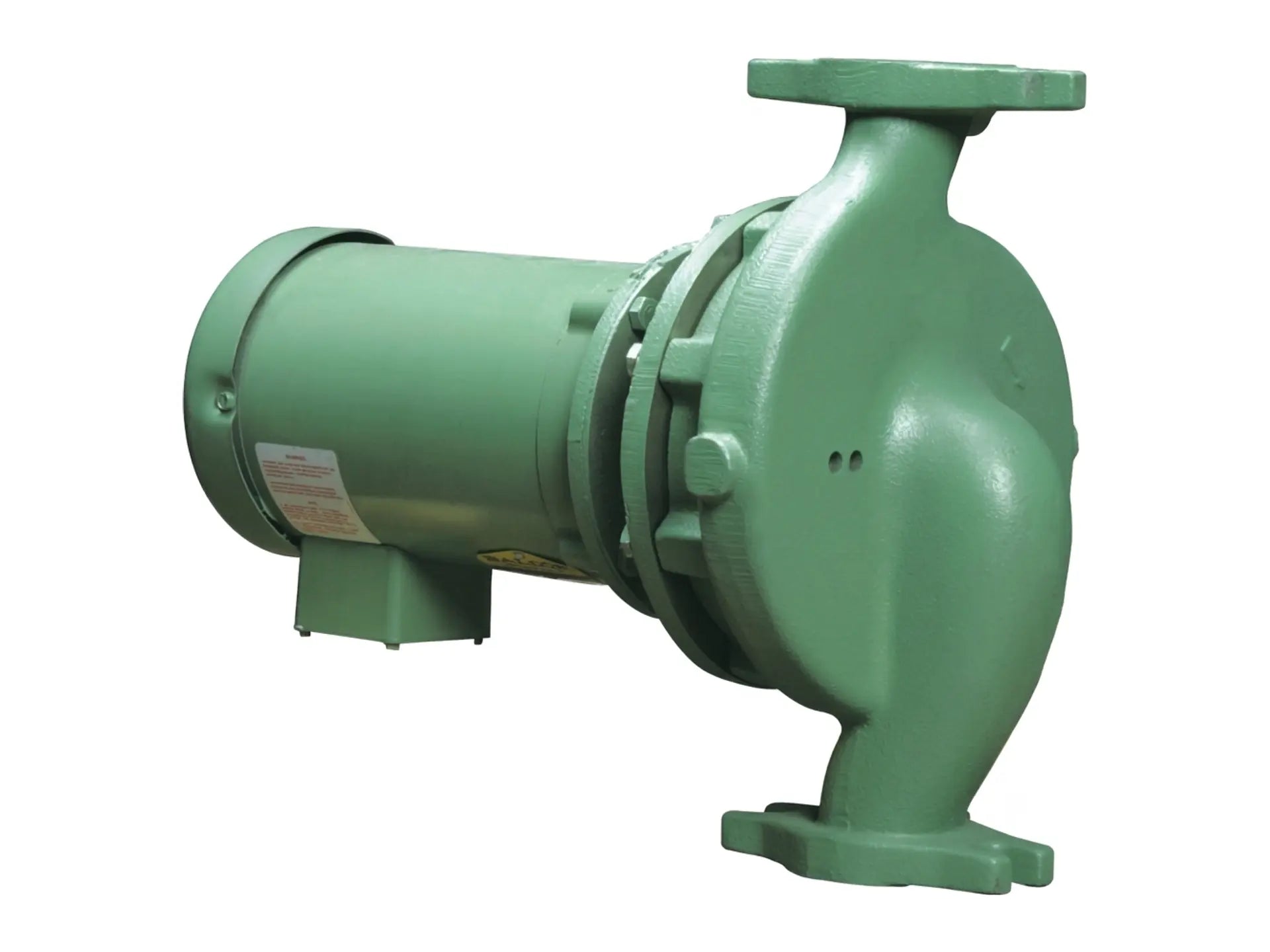

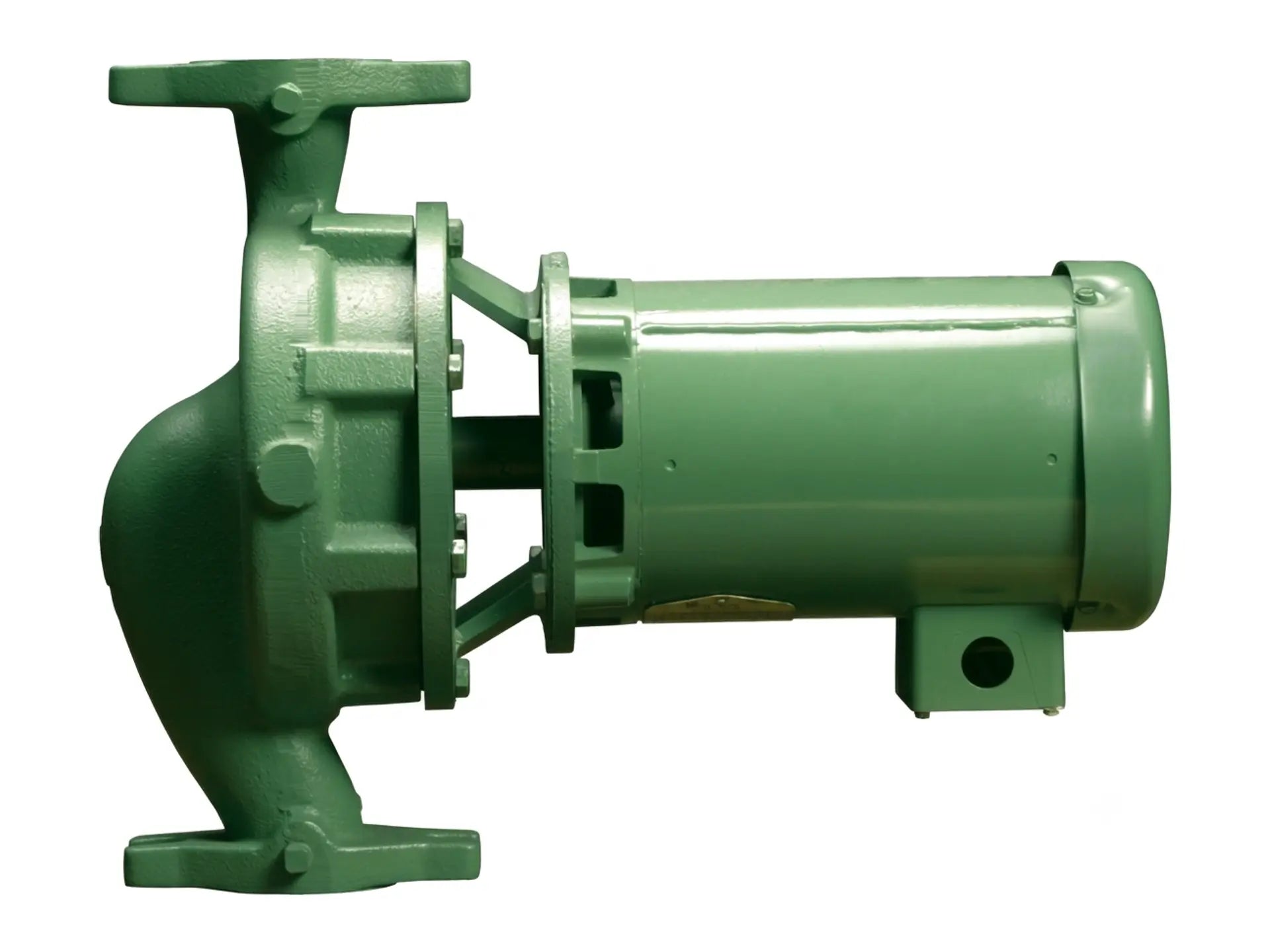

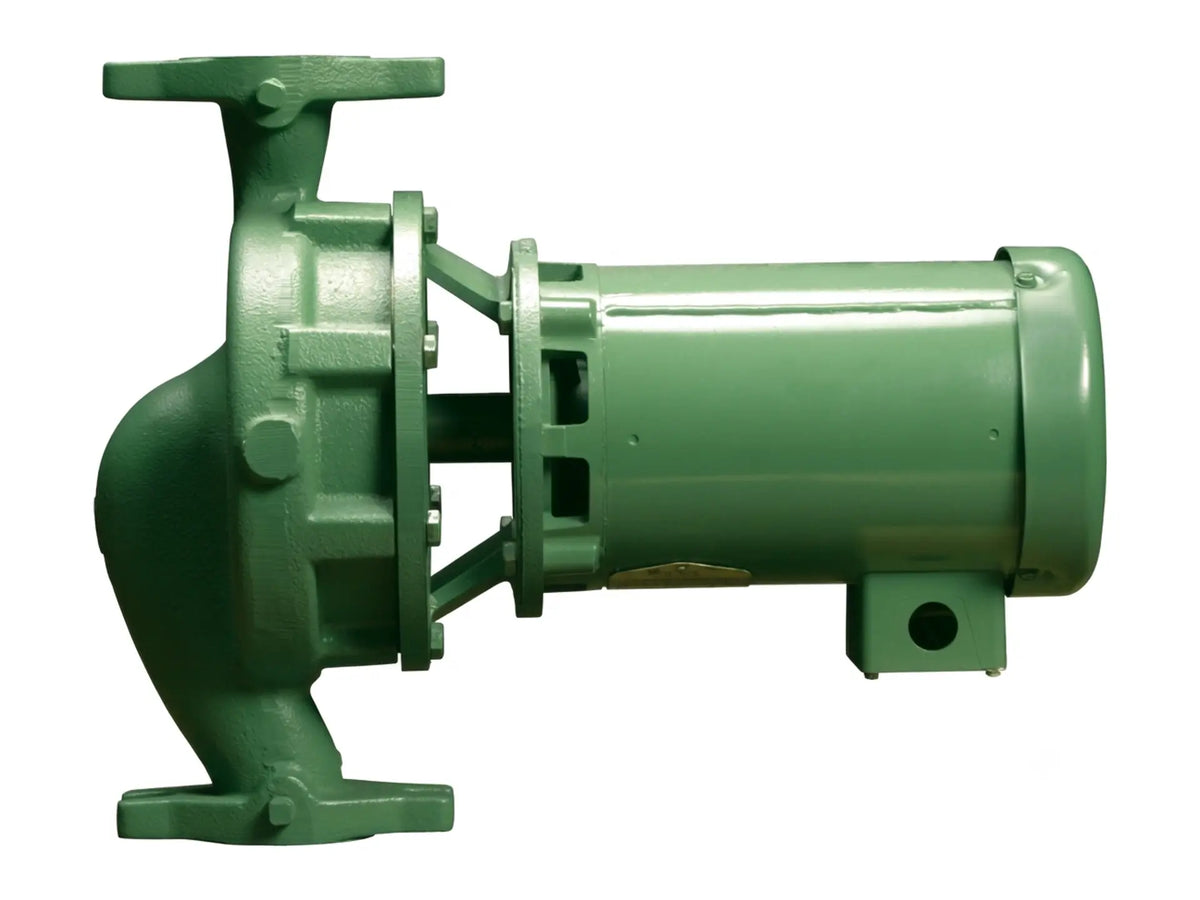

This close-coupled in-line pump has an in-line design with aligned 1 1/2" suction and discharge ports. The unit includes a cast iron casing and bracket along with a stainless steel impeller and shaft. This assembly uses a ceramic seat, carbon rotor, and EPT rubber mechanical seal, allowing for fluid temperatures up to 250°F. The 4.75" nominal diameter impeller is dynamically balanced to promote fluid flow and minimize pipe strain. Built in accordance with Hydraulic Institute standards, the structure allows for horizontal or vertical installation, as the pump is self-supported by system piping. The configuration includes pressure tappings for differential readings.
The system uses a 2 HP motor operating at 3450 RPM with an ODP enclosure, 230/460V, 3PH power supply compatible with 208V, and a VFD for 208-240V, 3PH input. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
