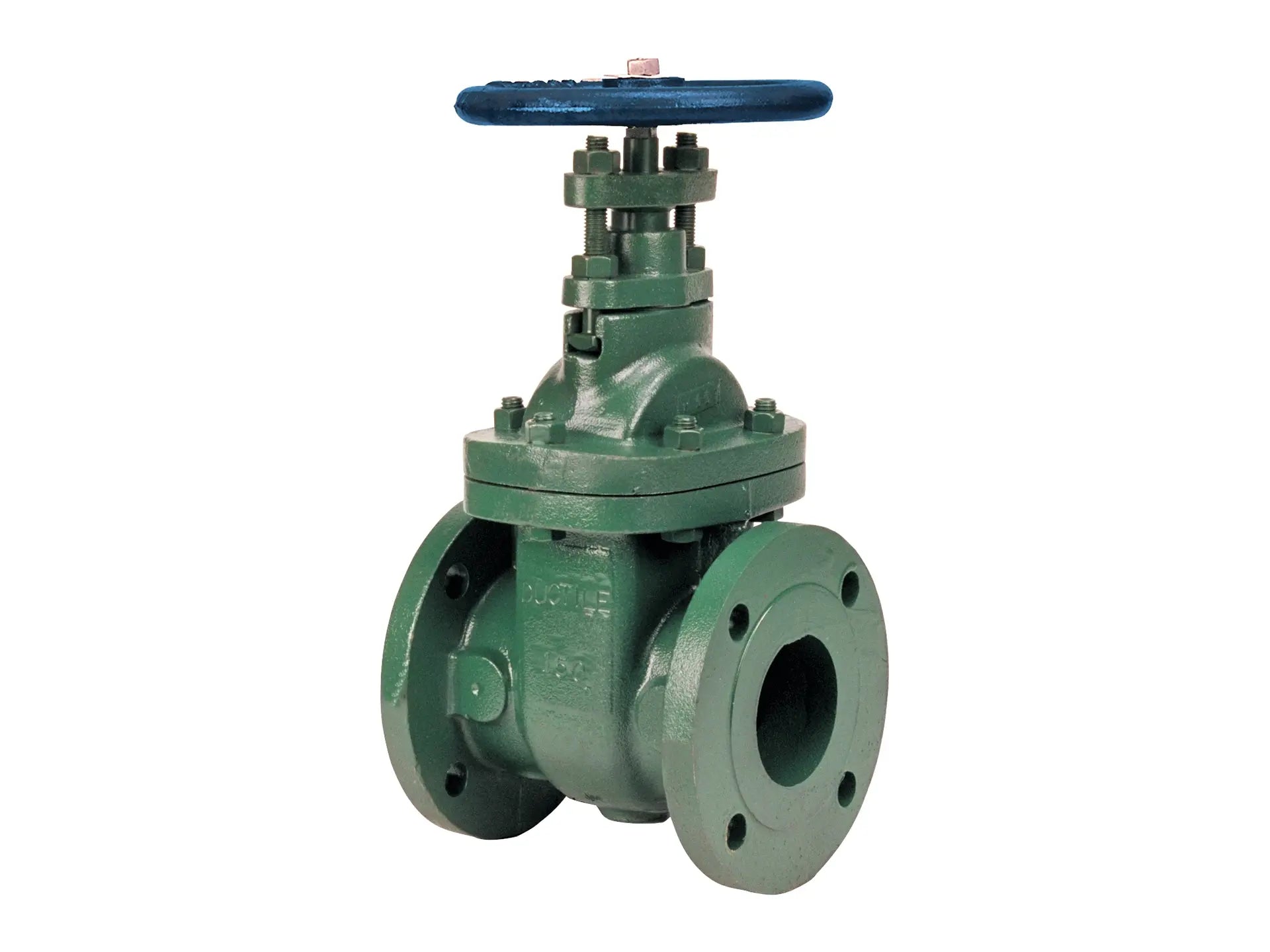

NIBCO F-639-31-FF 6" Flgd Ductile Iron Gate Valve NHA702K

SKU: LSIKBQXC45 Part Number: NHA702K Model: F-639-31-FF

Price:
Sale price$2,995.95 Regular price$5,447.00

Save 45% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

This NIBCO ductile iron gate valve provides full flow with minimal pressure drop. The alloy iron non-rising stem gate valve features Class 150 raised face flanged end connections for easy installation and accessibility. Non-rising stem gate valves are recommended when positive shutoff is needed and space requirements dictate. With its ductility, this valve displays higher physical properties than standard grey cast iron. This NIBCO flanged ductile iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • 150 psi/10.3 bar saturated steam to 366°F/185°C
  • 250 psi/17.2 bar non-shock cold working pressure
  • Bolted bonnet
  • Solid wedge
  • Iron body bronze mounted (IBBM)
  • Class 150 raised face flanged end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-128

Specifications

Manufacturer NIBCO
Part Number NHA702K
Model F-639-31-FF
Type of Valve Gate
Nominal Pipe Size 6"
End Connection Type F -- Flanged
Seat Seal Material Bronze
Gate Stem Design Non-Rising Stem
Turns Operations Multi-Turn
Multi-Turn Operator Standard Handwheel
Multi-Turn Bonnet Design Bolted Bonnet
Special Options with Flat Face Flanges
Pressure Rating (CWP) 285 psi/19.7 Bar CWP
Pressure Rating (SWP) 185 psi/12.8 Bar SWP
Material Ductile Iron
Potable Water Code Not LL Comp not intend potable
UPC Code 039923699701
Length 25.3"
Width 12"
Height 12"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
