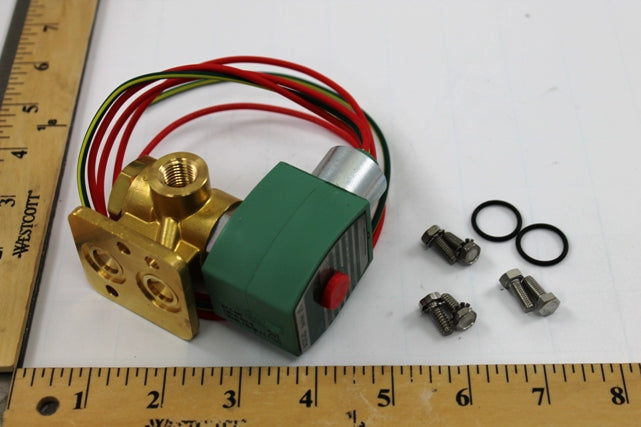

This Asco solenoid valve controls the flow of air in pneumatic systems. It features a 1/4" port size and operates as a three-way normally closed (NC) valve. The valve can handle pressure up to 150 psi.
ASCO 8320 series valves are small 3-way solenoid valves with all three connections in the body. Valve bodies are made of brass or stainless steel. Standard valves have a Type 1, General Purpose Solenoid Enclosure. Valves may also be provided with an explosion-proof solenoid enclosure designed to meet Enclosure Type 3-Raintight, Type 7 (C & D) Explosion-Proof Class I, Groups C & D and Type 9 (E, F, & G) Dust Ignition-Proof Class II, Groups E, F, & G, and have a temperature range code of TC3.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum operating pressure differential required
- Broadest range of applications
- Mountable in any position
Specifications
AC/DC |
AC |
Inlet Pipe Size (NPT) |
1/4" |
Orifice Size |
1/16" |
Lead Length |
18" - 45.72 cm |
Coil Class |
F |
Body Material |
Brass |
Cv/Kv (Pressure Port) |
0.09 Cv - 0.08 Kv |
Max Fluid Temperature |
180°F - 82°C |
Min Fluid Temperature |
-40°C |
Watt Rating 60 Hz |
6.10 W |
Max Operating Pressure (Air) |
150 psi - 10.3 Bar |
