Name: Grundfos 12BG0009, Submersible Pump 85S100-9, Stainless Steel
Brand: Grundfos
SKU: LSIKONGWBO
Price: 7702.95 USD
Availability: OutOfStock

Grundfos 12BG0009, Submersible Pump 85S100-9, Stainless Steel

Roll over image to zoom in Click on image to zoom

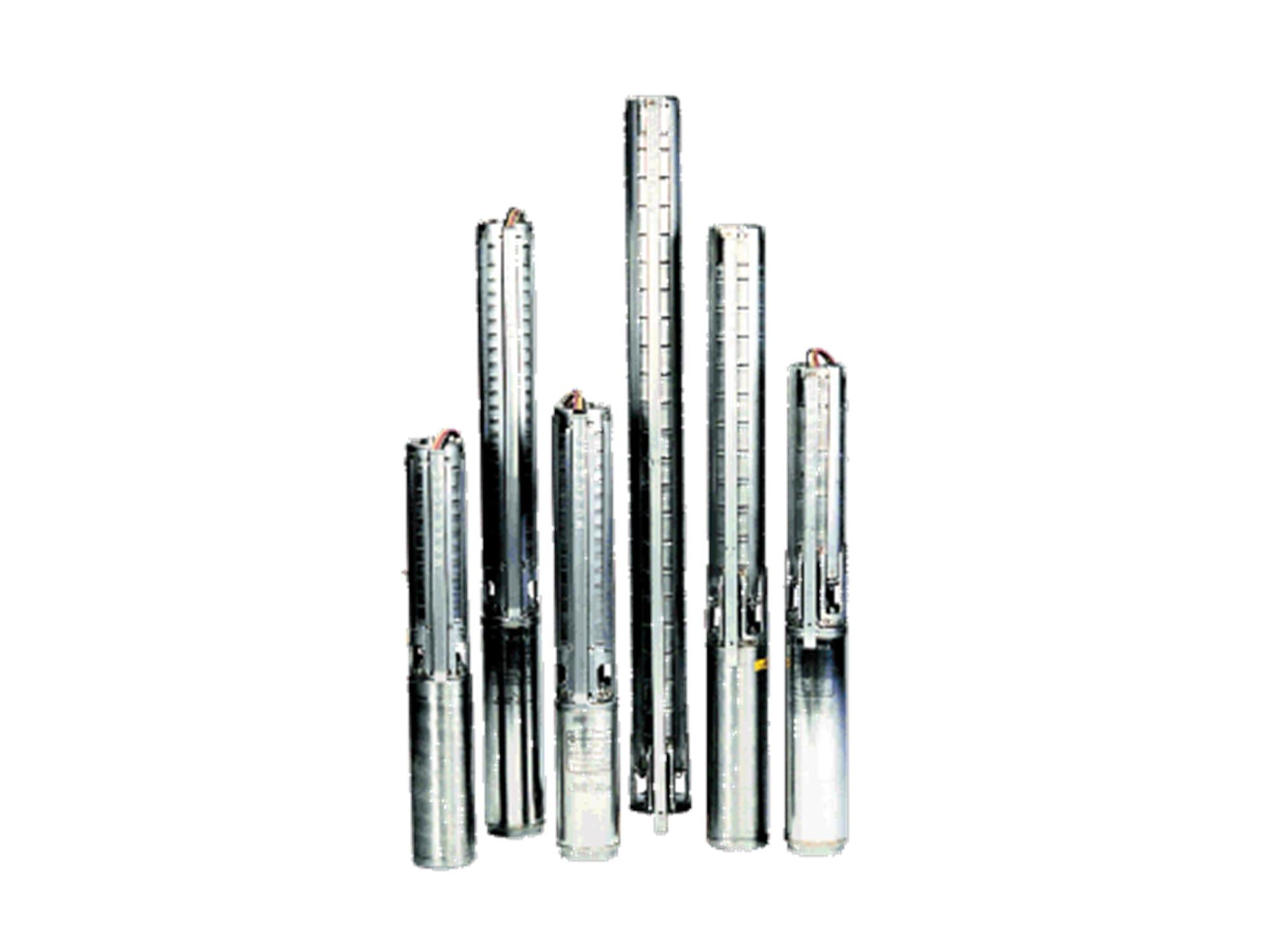

This submersible pump is constructed from stainless steel grades EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). It is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and off-shore operations.

Manufacturer	Grundfos
Part Number	12BG0009
Pump speed on which pump data are based	3450 rpm
Rated flow	88.1 US gpm
Rated head	344.5 ft
Stages	9
Number of reduced-diameter impellers	NONE
Approvals	CULDWUS,CCSAUS
Approvals for drinking water	PROP65
Curve tolerance	ISO9906:2012 3B
Return valve	YES
Pump	Stainless steel, EN 1.4301, AISI 304
Impeller	Stainless steel, EN 1.4301, AISI 304
Maximum operating pressure	870.23 psi
Maximum outlet pressure	149.39 psi
Type of connection	NPT(F)
Size of connection	3 inch
Motor diameter	4 inch
Minimum borehole diameter	5.51 in
Pumped liquid	Water
Liquid temperature range	5 .. 140 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor flange design	Grundfos
Power (P2) required by pump	10 HP
Start. method	direct-on-line
Minimum efficiency index, MEI ≥	-.--
DOE Pump Energy Index CL	0.82
Net weight	34.6 lb
Gross weight	40.1 lb
Shipping volume	1.13 ft³
