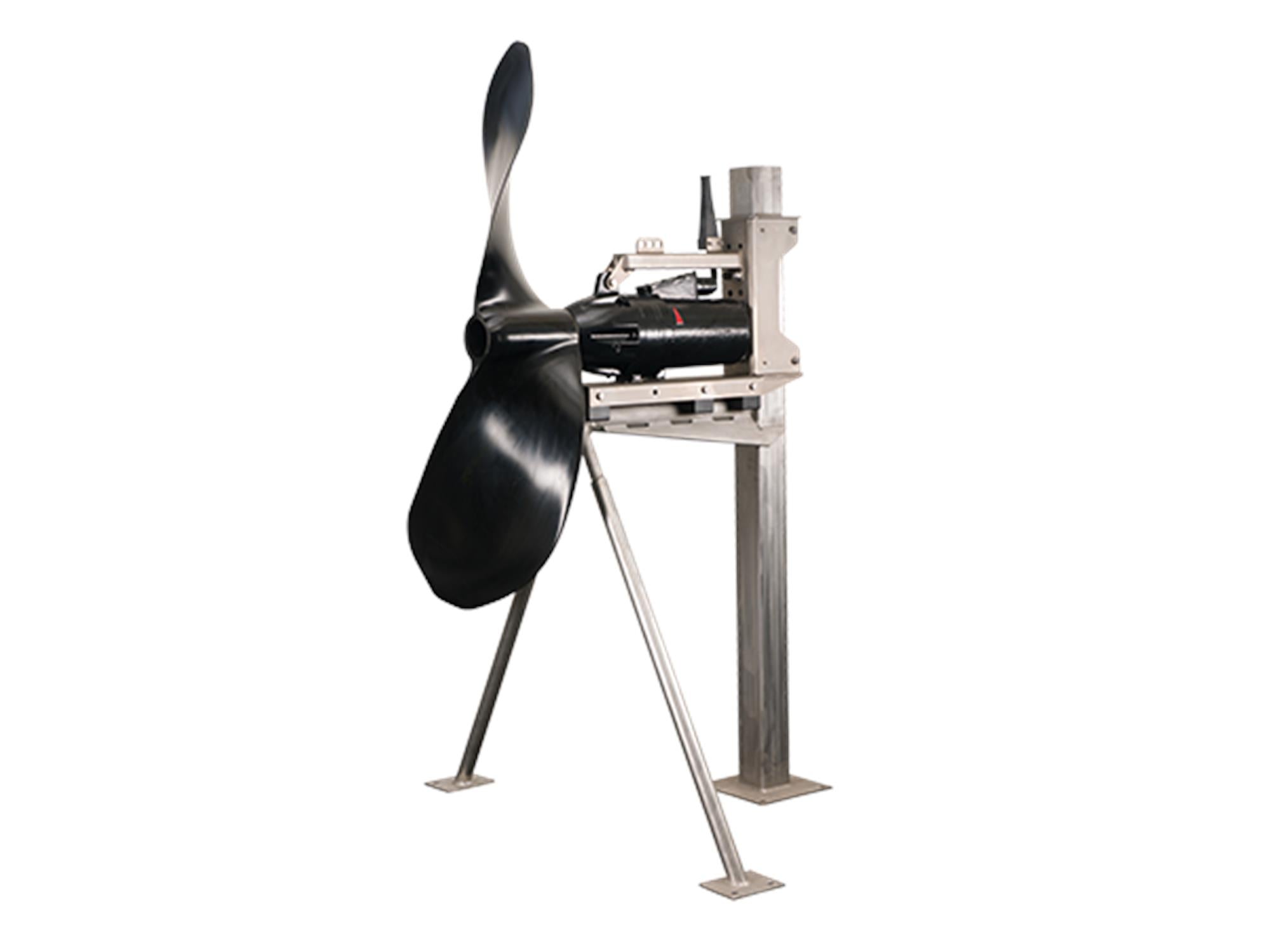

Grundfos 98788076, SFG Flowmaker Horizontal Gear Drive 10m

SKU: LSIKZ0KY3A Part Number: 98788076

Price:
Sale price$18,643.95

Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This flowmaker is designed for maintaining movement in low to medium viscosity liquids within large volumes. It has a horizontal, planetary gear drive and is suitable for use in wastewater treatment applications. The product supports motors ranging from 0.7 to 8.0 kW.

Specifications

Manufacturer Grundfos
Part Number 98788076
Thrust to power 0.654
Axial trust force 1490 N
Rated flow 15800 US gpm
Mean velocity 2.46 ft/s
Propeller speed 74 rpm
Tip speed 16.5 ft/s
Gear ratio 24.000
Propeller diameter 51.2 in
Number of propeller blades 2
Primary shaft seal 2 RADIAL LIP SEALS
Testing standard ISO 21630
Motor AISI EN-GJL-250
Propeller POLYURETHANE
Hub AISI 1.4301
Paint thickness 450 micrometre
Secondary shaft seal SIC/SIC
Fits column profile tube, size 100/100 mm
Minimum liquid temperature 41 °F
pH-value range 4-10
Power input - P1 2.5 kW
Power input Act 2.28 kW
Main frequency 60 Hz
Rated voltage 3 x 460 V
Voltage tolerance +10/-10 %
Rated current 4.4 A
Starting current 44 A
Cos phi - power factor 0.75
Cos phi - p.f. at 3/4 load 0.66
Cos phi - p.f. at 1/2 load 0.53
Rated speed 1752 rpm
Motor efficiency at full load 88.4 %
Motor efficiency at 3/4 load 87.5 %
Motor efficiency at 1/2 load 84.7 %
Number of poles 4
Start. method star/delta
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) H
Explosion proof no
Built-in motor protection PTC THERMISTOR
Power cable type S1BN8-F 11G1.5
Length of power cable 33 ft
Power plug NO
Moisture sensor without moisture sensors
Water-in-oil sensor with water-in-oil sensor
Net weight 209 lb
Country of origin HU
Custom tariff no. 4819.10.0040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
