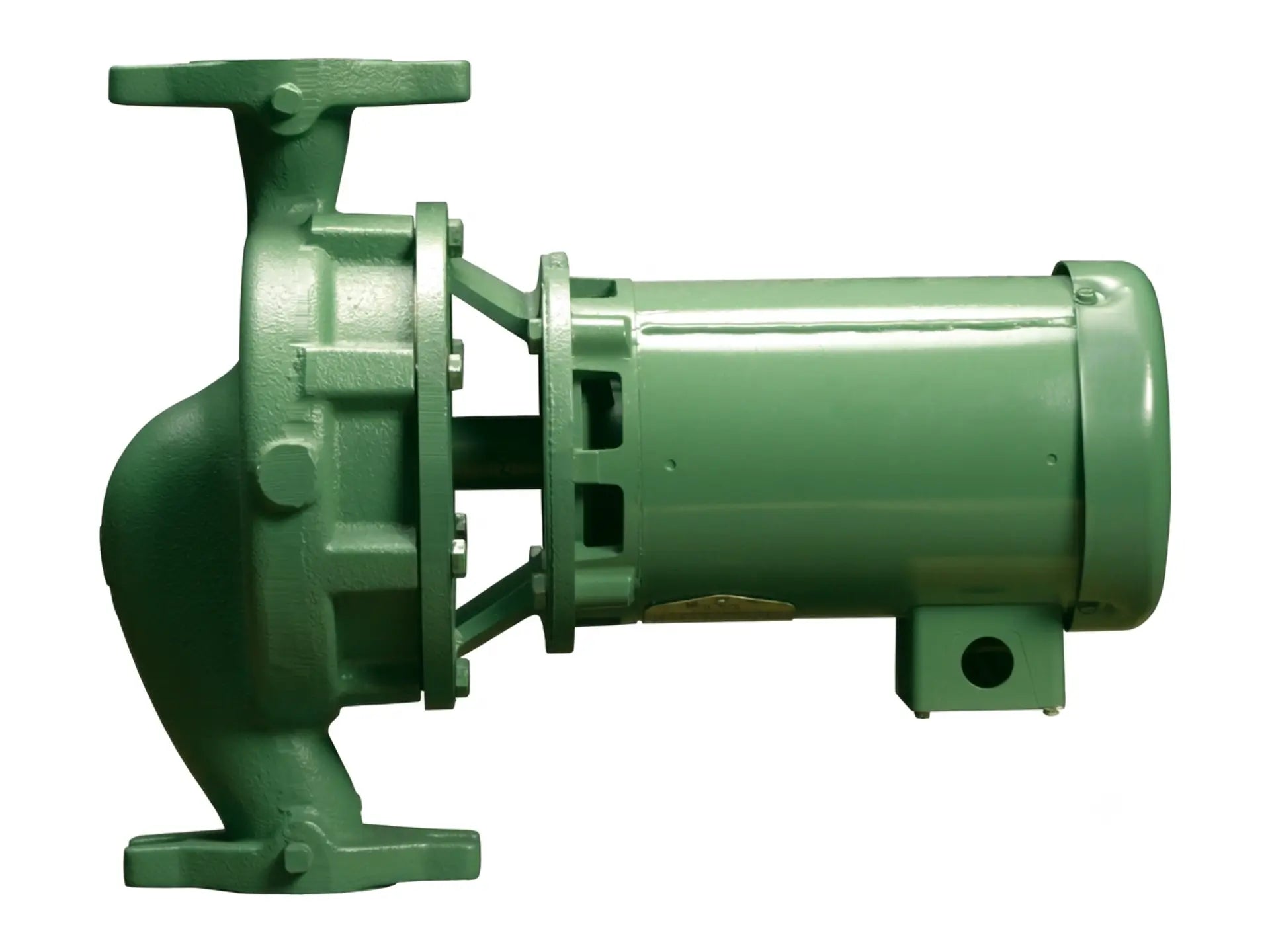

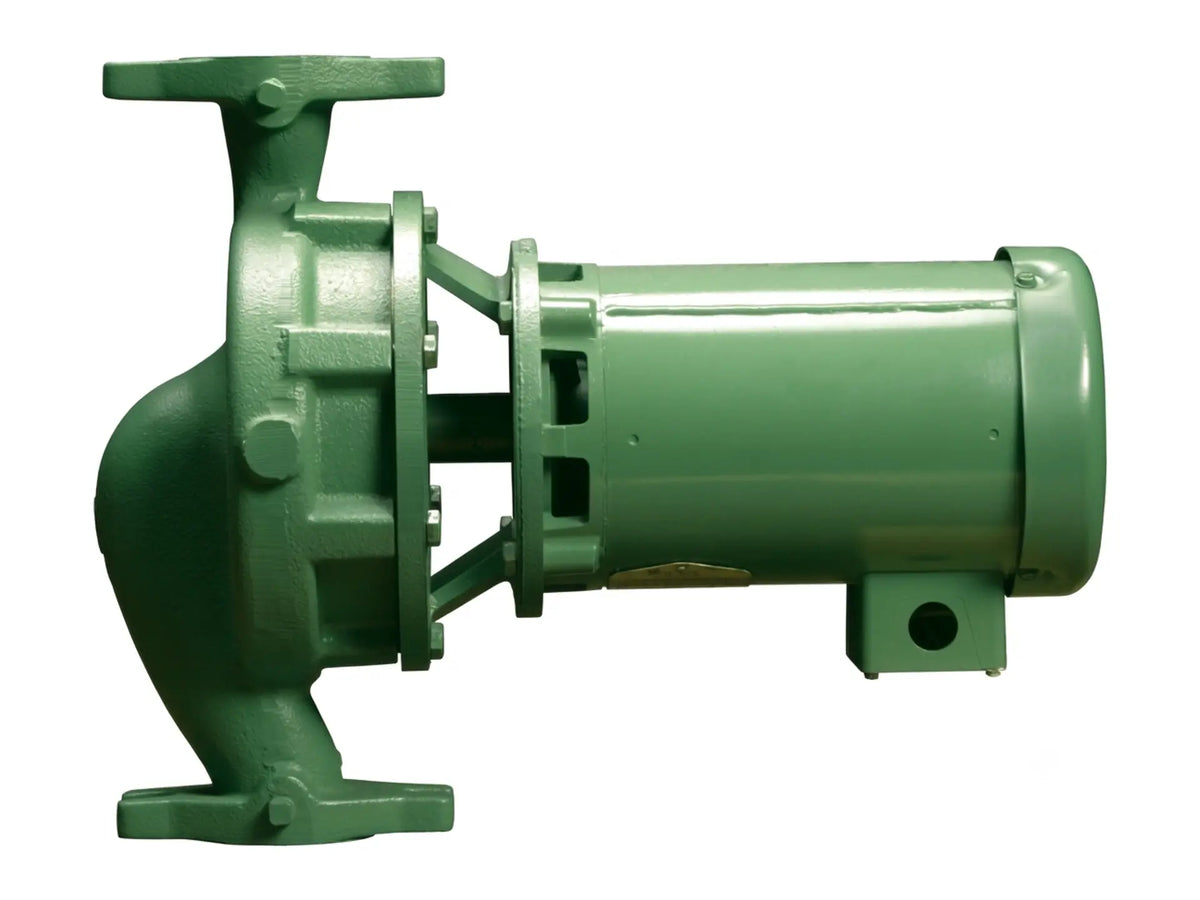

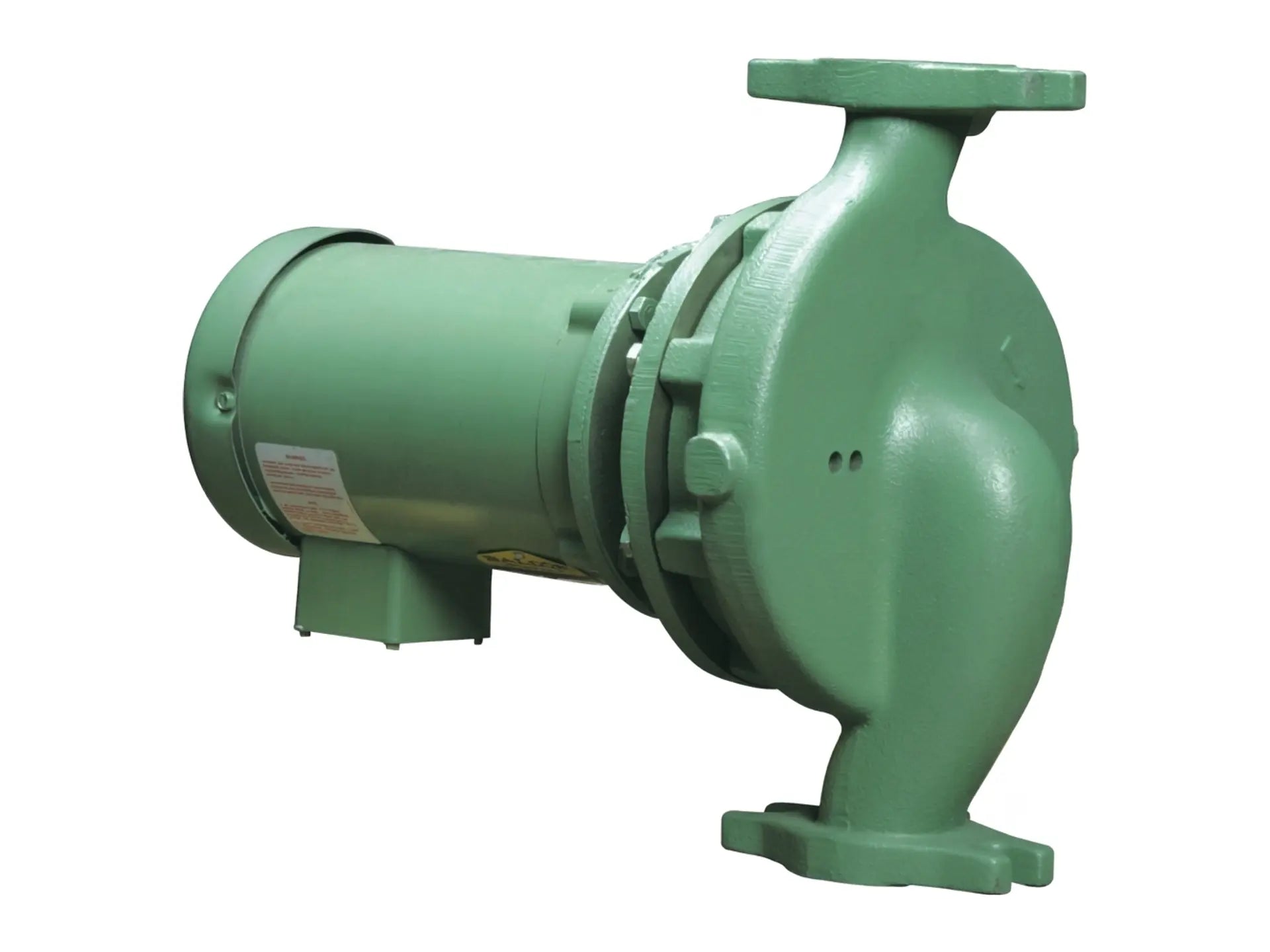

This close-coupled in-line pump has an in-line configuration with aligned 1 1/2" suction and discharge ports. The unit uses a cast iron casing and bracket combined with a stainless steel impeller and bronze face plate. The hydraulic assembly includes a 6.35" nominal impeller diameter and integrated pressure tappings for differential readings. The shaft seal includes a ceramic seat, carbon rotor, and EPT rubber, rated for temperatures up to 250°F. This self-supporting configuration can be installed in horizontal or vertical orientations without external strapping. The assembly is built in accordance with Hydraulic Institute standards and is rated for a maximum operating pressure of 175 PSI.
The pump operates with a 1 HP, 1750 RPM, TEFC motor with 230/460V 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
