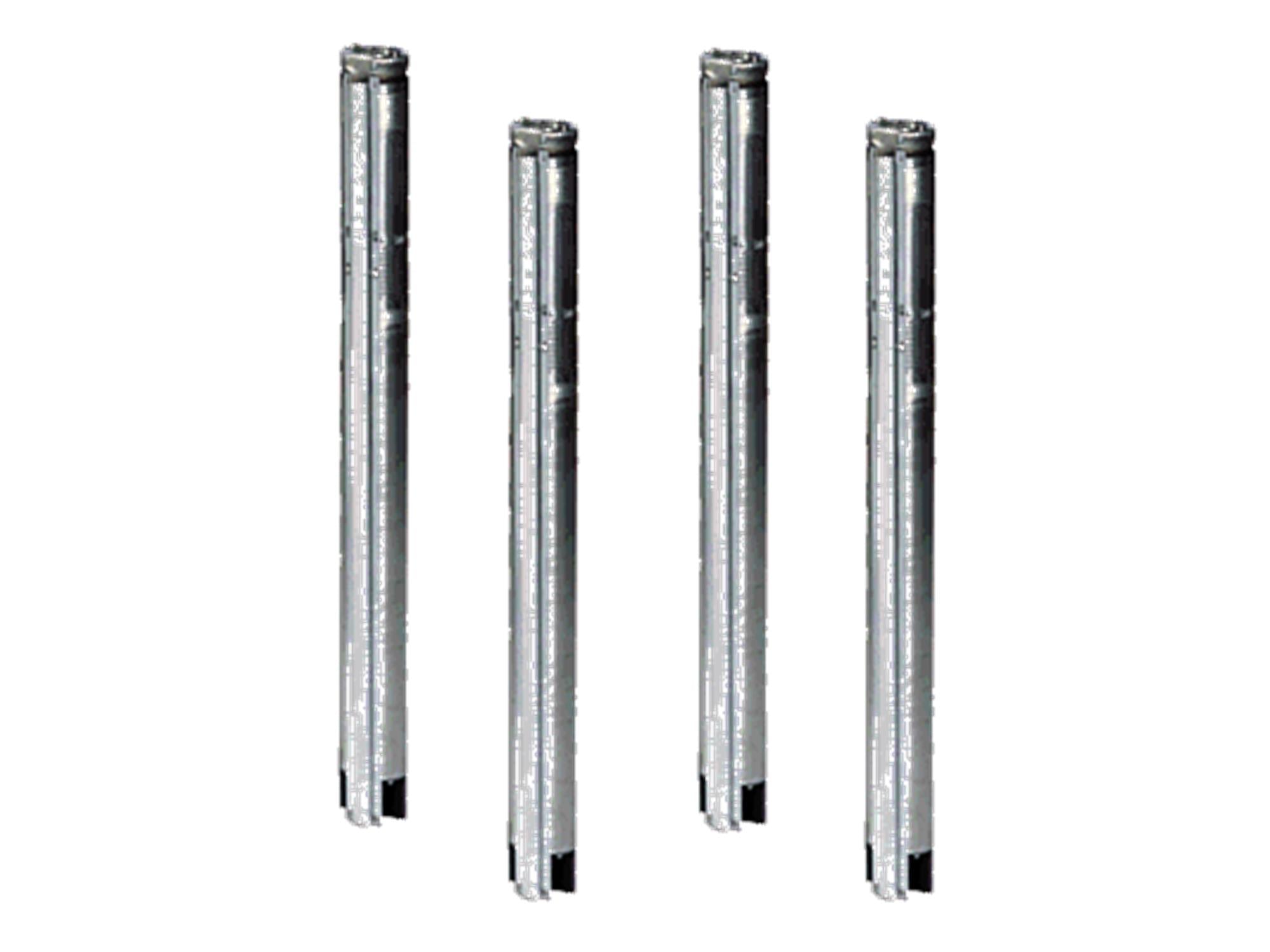

This submersible pump is constructed with highly chemical-resistant materials for use in contaminated environmental conditions, suitable for ground water intake applications.
Specifications
Manufacturer
Grundfos
Part Number
96397450
Pump speed on which pump data is based
10700 rpm
Rated flow
22 US gpm
Rated head
68.9 ft
Stages
2
Valve
pump with built-in non-return valve
Pump
PVDF / Stainless steel, DIN W.-Nr. 1.4401
Impeller
PVDF
Pump outlet
NPT 1 1/2
Minimum borehole diameter
2.99 in
Pumped liquid
Water
Maximum liquid temperature
95 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Power (P2) required by pump
0.939 HP
Sales region
N-AMREG
