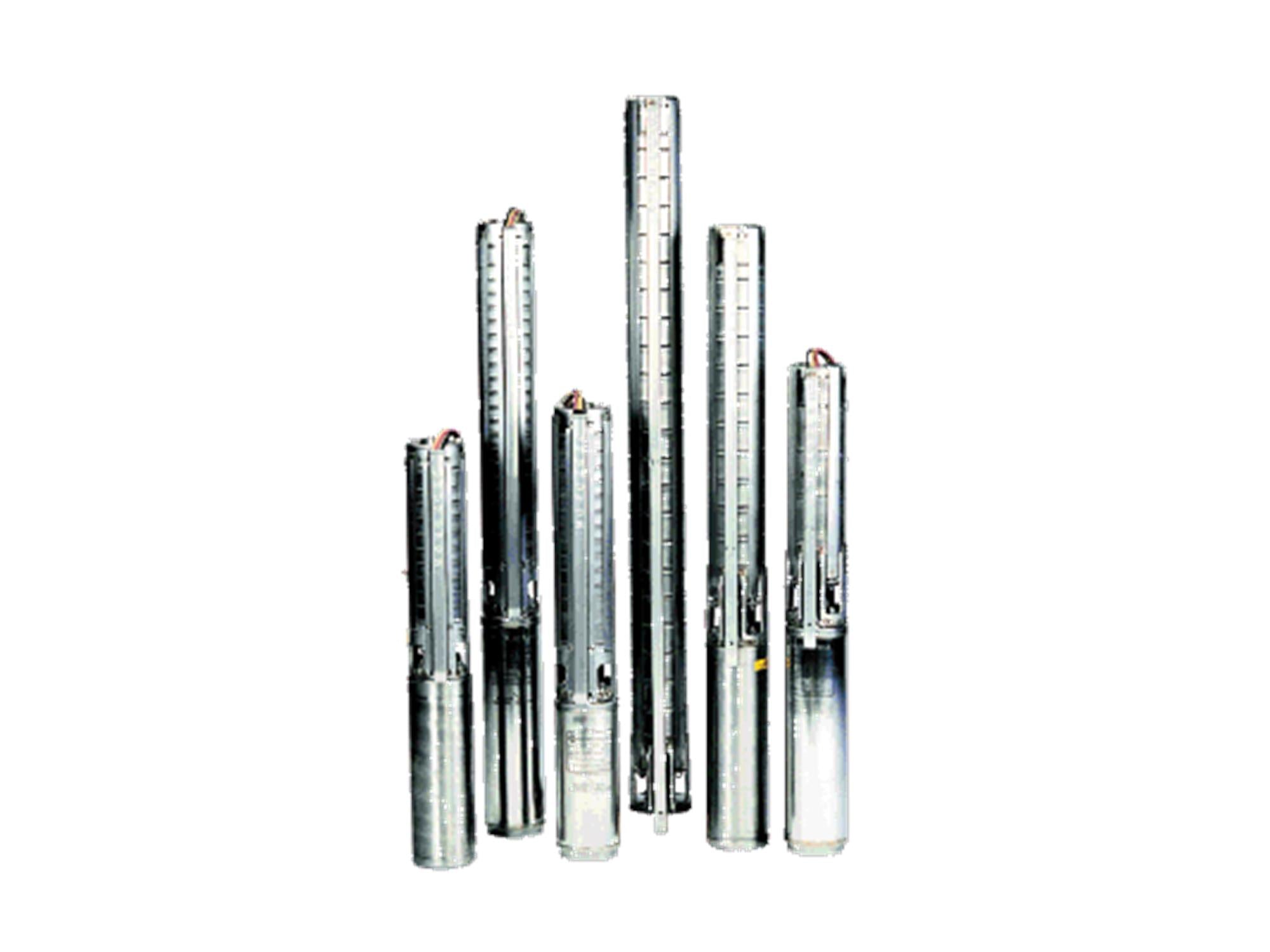

Grundfos 12B60013, Submersible Pump 85S150-13 Stainless Steel

Roll over image to zoom in Click on image to zoom

Grundfos 12B60013, Submersible Pump 85S150-13 Stainless Steel

Name: Grundfos 12B60013, Submersible Pump 85S150-13 Stainless Steel
Brand: Grundfos
SKU: LSILCK5T91
Price: 10112.95 USD
Availability: OutOfStock

SKU: LSILCK5T91 Part Number: 12B60013

Price:

$10,112.95

Save -24% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This submersible pump is constructed from stainless steel, including EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L) materials. It is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and offshore operations.

Manufacturer	Grundfos
Part Number	12B60013
Pump speed on which pump data are based	3450 rpm
Rated flow	88.1 US gpm
Rated head	498.7 ft
Stages	13
Number of reduced-diameter impellers	NONE
Approvals	CULDWUS,CCSAUS
Approvals for drinking water	PROP65
Curve tolerance	ISO9906:2012 3B
Return valve	YES
Pump	Stainless steel, EN 1.4301, AISI 304
Impeller	Stainless steel, EN 1.4301, AISI 304
Maximum operating pressure	870.23 psi
Maximum outlet pressure	214.66 psi
Type of connection	NPT(F)
Size of connection	3 inch
Motor diameter	6 inch
Minimum borehole diameter	5.71 in
Pumped liquid	Water
Liquid temperature range	5 .. 140 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor flange design	Grundfos
Power (P2) required by pump	15 HP
Start. method	direct-on-line
Minimum efficiency index, MEI ≥	-.--
DOE Pump Energy Index CL	0.82
Net weight	49 lb
Gross weight	58.7 lb
Shipping volume	1.84 ft³

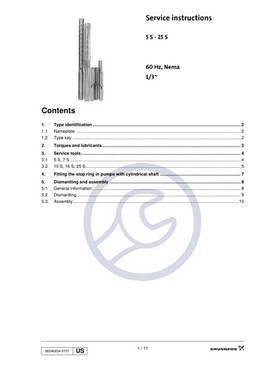

5 S to 25 S (Service Instructions)

GRUNDFOS SUBMERSIBLES, SP PUMPS (Product brochure)

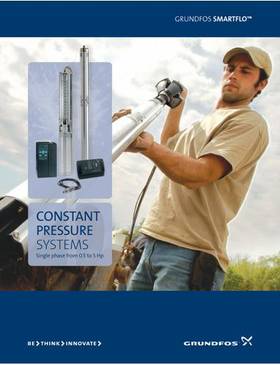

GRUNDFOS SMARTFLO (Product brochure)

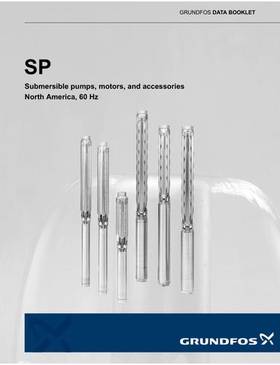

SP (Data booklet)

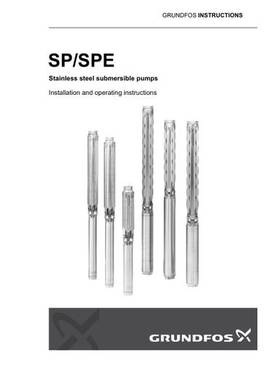

SP/SPE, Stainless steel submersible pumps, 4", 6", 8", and 10" (I & O instructions)

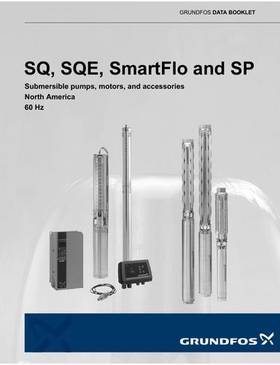

SQ, SQE, CU 331, and SP (Data booklet)

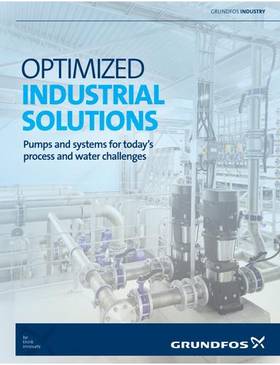

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)

Cathodic protection (Quick guide)

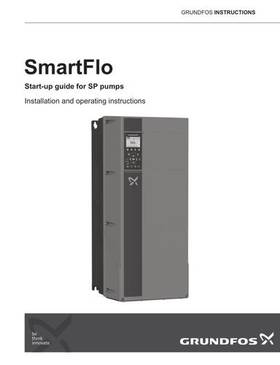

SmartFlo, Start-up guide for SP pumps (I & O instructions)

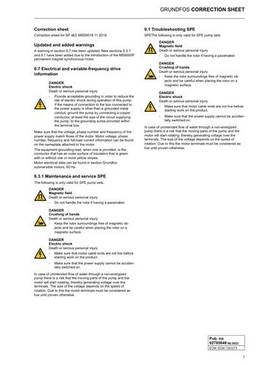

Correction sheet for SP and SPE
