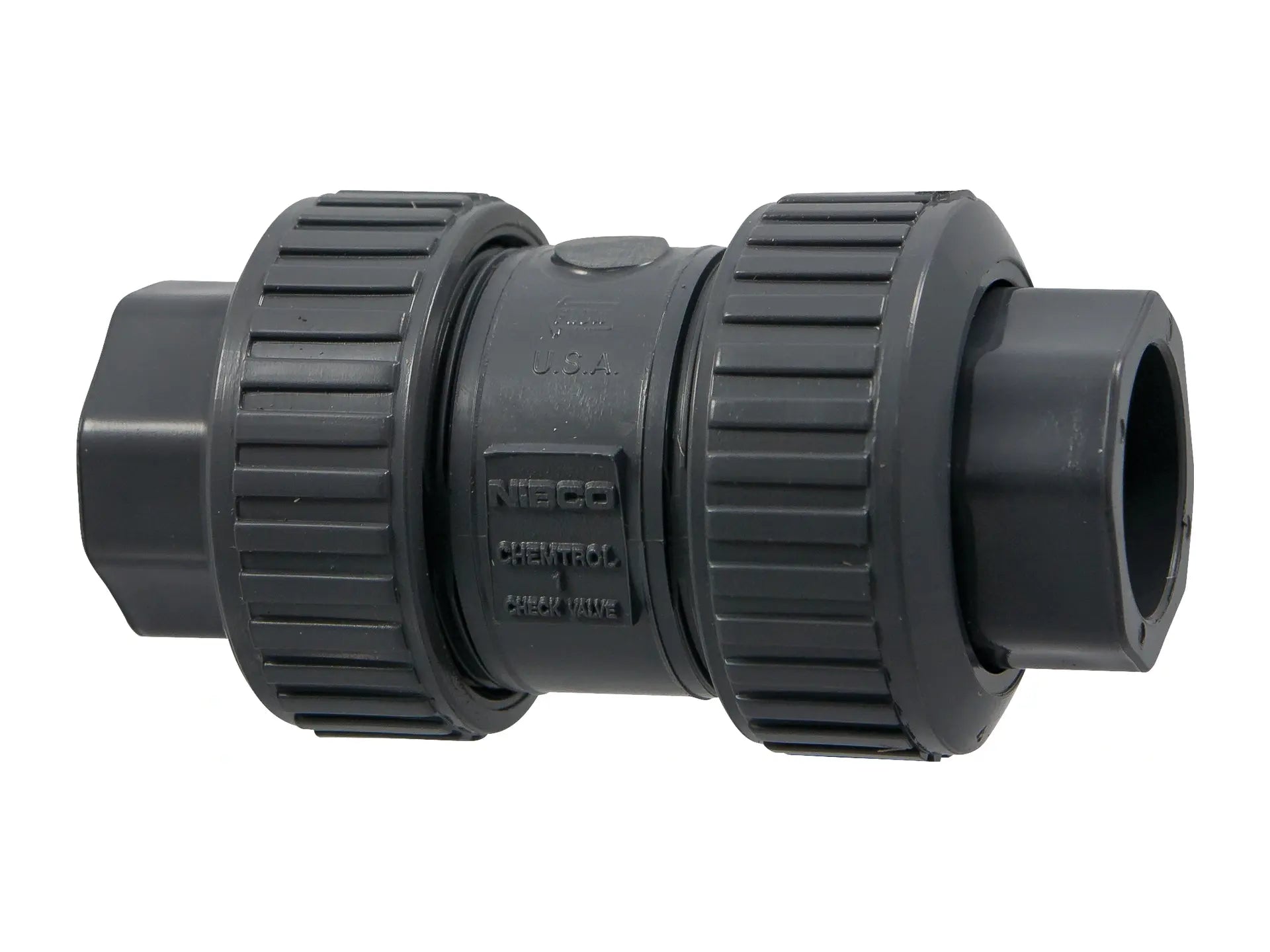

NIBCO U-45-BC-V 1" PVC Sch 80 Chemtrol Ball-Check Valve MA801UA

SKU: LSILH77LJ8 Part Number: MA801UA Model: U-45-BC-V

Price:
Sale price$123.95 Regular price$192.10

Save 35% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This Chemtrol True Union ball check valve stops the flow of media in one direction while allowing flow in the opposite direction, with minimum turbulence and chatter while maintaining pump prime. The valve's injection molded PVC construction with FKM O-ring is ideal for use in chemical processing, industrial plating, chilled water distribution, chemical drainage and irrigation systems. The original Chemtrol True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. The valve can be easily joined with the universal socket and threaded end connections. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. PVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol PVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit or corrode. Choose Chemtrol valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol valves are backed by a 1-year limited warranty. Because Chemtrol is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.

Features

  • Valve pressure rating 150 psi at 73°F water non-shock
  • Maximum service temperature 140°F
  • True Union design
  • FKM O-ring
  • Includes both socket and female NPT thread end connections
  • Do not use or test with compressed air or other gases
  • ASTM F1970
  • NSF/ANSI Standard 14
  • NSF/ANSI Standard 61, Annex G

Specifications

Manufacturer NIBCO
Part Number MA801UA
Model U-45-BC-V
Type of Valve Check
Series U45BC-V
Type of Check Valve Ball-Check
Nominal Pipe Size 1"
End Connection Type Material
Polyvinyl Chloride Pipe Schedule
80 Seat Seal Material
FKM Fluoroelastomer Color
Dark Grey UPC Code
039923735690 Length
5.4" Width
2.83" Height
2.83" Country of Origin
US Potable Water Code
LL Compliant not used potable Notes and Disclaimer
Chemtrol® is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
