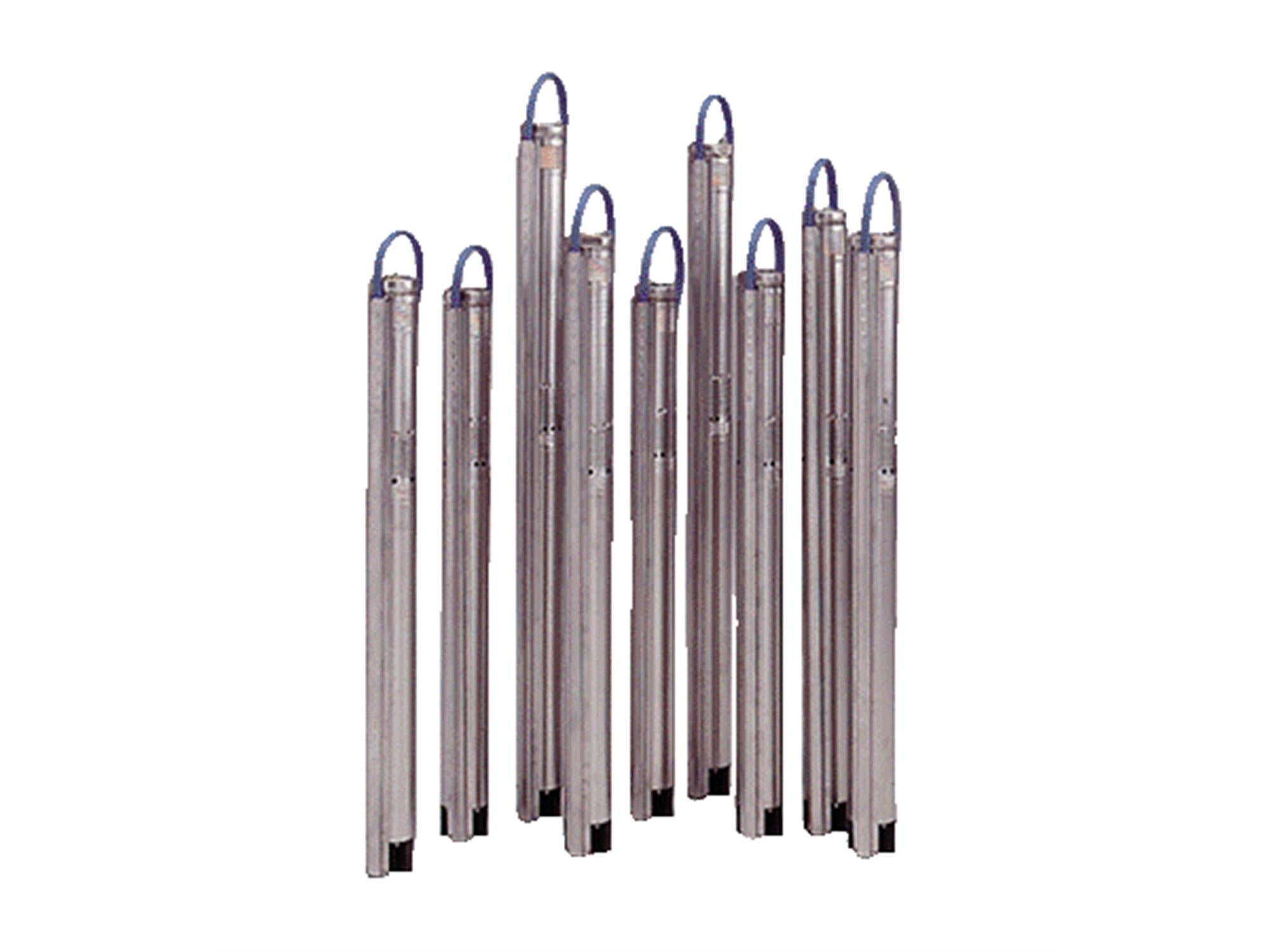

This submersible pump is compact and designed for remedial pumping and liquid sampling from areas with contaminated groundwater.
Specifications
Manufacturer
Grundfos
Part Number
97778421
Stages
2
Approvals
cULus
Curve tolerance
ISO9906:2012 3B
Pump Number
96397442
Valve
pump with built-in non-return valve
Pump
Stainless steel, EN 1.4401, AISI 316
Impeller
Composite, SOLEF 8808/0902 PVDF-CF10
Maximum operating pressure
217.56 psi
Pump outlet
1 1/4"NPT
Minimum borehole diameter
2.99 in
Pumped liquid
Water
Liquid temperature range
32 .. 95 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Net weight
9.48 lb
Gross weight
11 lb
Sales region
N-AMREG
