Description
This SMART Digital series features advanced diaphragm pumps with variable-speed stepper motors for precise, reliable dosing. Designed for dosing and disinfection, these pumps ensure accurate and efficient chemical handling across industries.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 97722762 |
| Type key | DDA 30-4 FCM-PV/T/C-F-32U7U7BG |
| Max. Flow | 7.925 US gal/hour |
| Max. flow in slow mode 50% | 3.963 US gal/hour |
| Max. flow in slow mode 25% | 1.981 US gal/hour |
| Min flow | 30.0 ml/h |
| Turn-down ratio | 1:1000 |
| Approvals | CE,CSA-US,NSF61,RCM |
| Valve type | Spring-Loaded (HV-version) |
| Maximum viscosity at 100 % | 200 mPas |
| Maximum viscosity in slow mode 50 % | 600 mPas |
| Maximum viscosity in slow mode 25 % | 1500 mPas |
| Accuracy of repeatability | 1 % |
| Dosing head | PVDF (Polyvinylidene fluoride) |
| Valve ball | Ceramic |
| Gasket | PTFE |
| Range of ambient temperature | 32 .. 113 °F |
| Maximum operating pressure | 58.02 psi |
| Installation set | NO |
| Installation type | No installation set |
| Pump inlet | 0.17x 1/4, 1/4x3/8, 3/8x1/2" |
| Pump outlet | 0.17x 1/4, 1/4x3/8, 3/8x1/2" |
| Max. Suction lift during operation | 19.7 ft |
| Max. Suction lift during priming | 6.56 ft |
| Pumped liquid | Water |
| Liquid temperature range | 32 .. 113 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Maximum power input - P1 | 24 W |
| Main frequency | 50 / 60 Hz |
| Rated voltage | 1 x 100-240 V |
| Enclosure class (IEC 34-5) | IP65 / TYPE 4X |
| Length of cable | 4.92 ft |
| Type of cable plug | USA, Canada |
| Inrush current | 25A at 230V for 2ms |
| Control variant | FCM |
| Control panel | FRONT-MOUNTED |
| Level control | YES |
| Analog input | 0/4-20 mA |
| Pulse control | YES |
| Ext. Stop input | YES |
| Analog output | 0/4-20 mA |
| Output relays | 2 |
| Bus communication | YES |
| Net weight | 6.62 lb |
| Gross weight | 6.62 lb |
| COLOR | RED |
| Country of origin | US |
| Custom tariff no. | 8413.50.0050 |

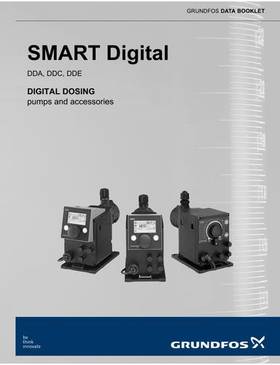

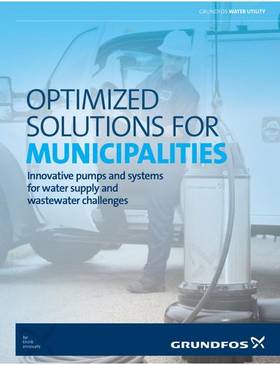

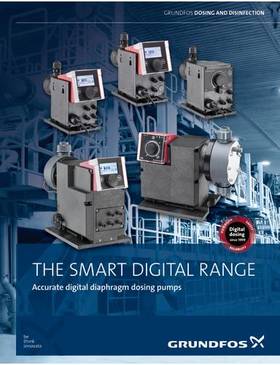

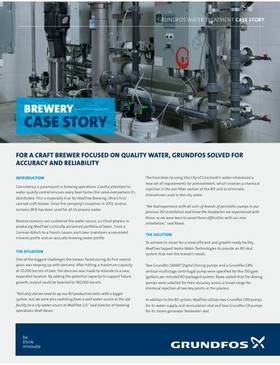

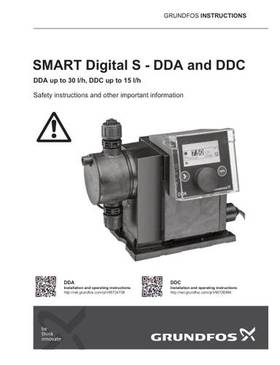

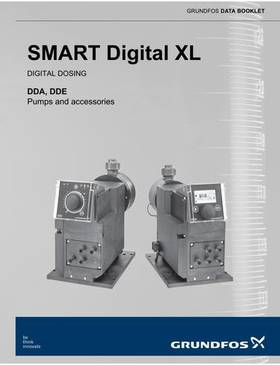

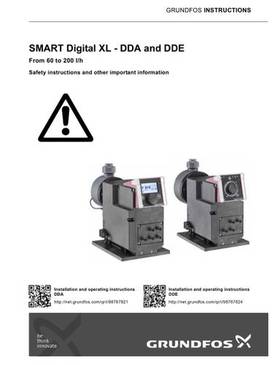

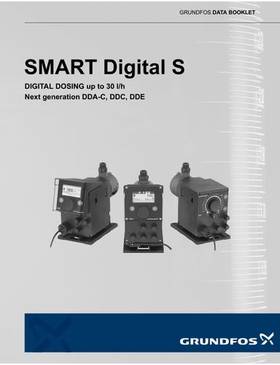

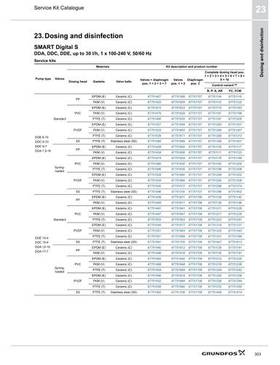

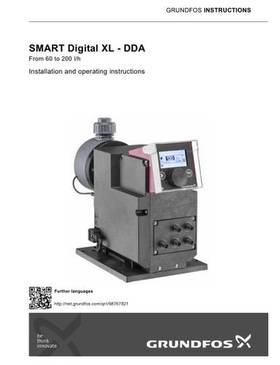

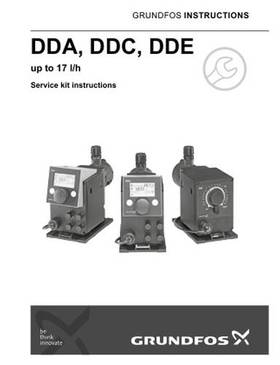

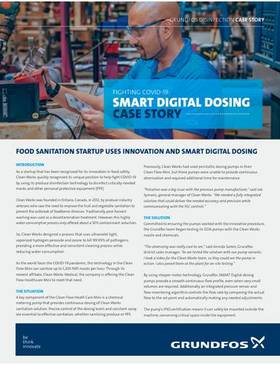

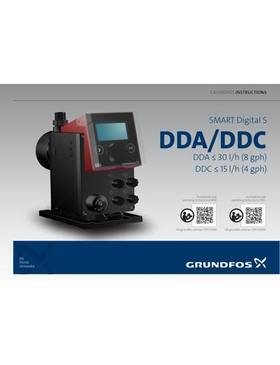

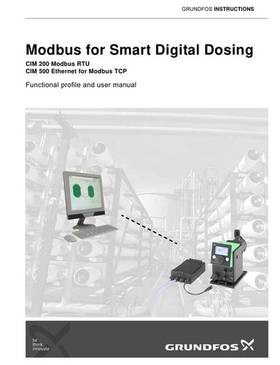

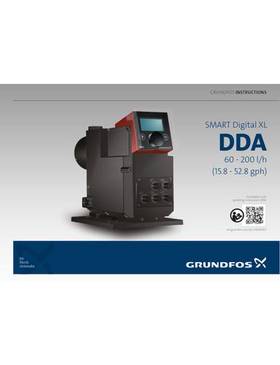

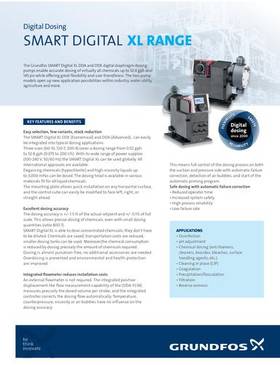

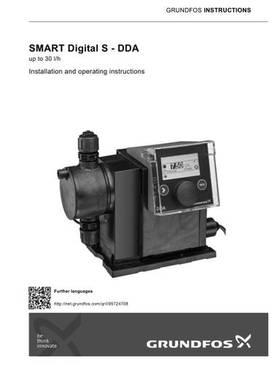

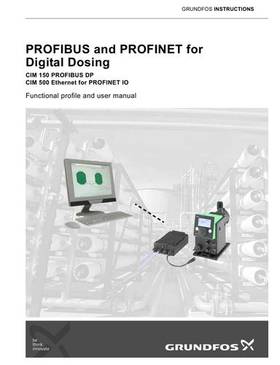

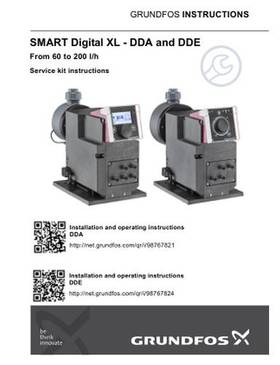

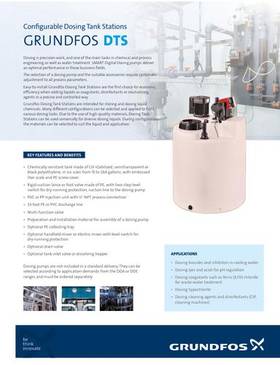

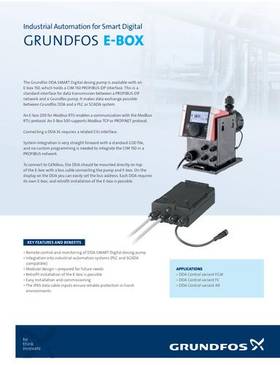

Documents
