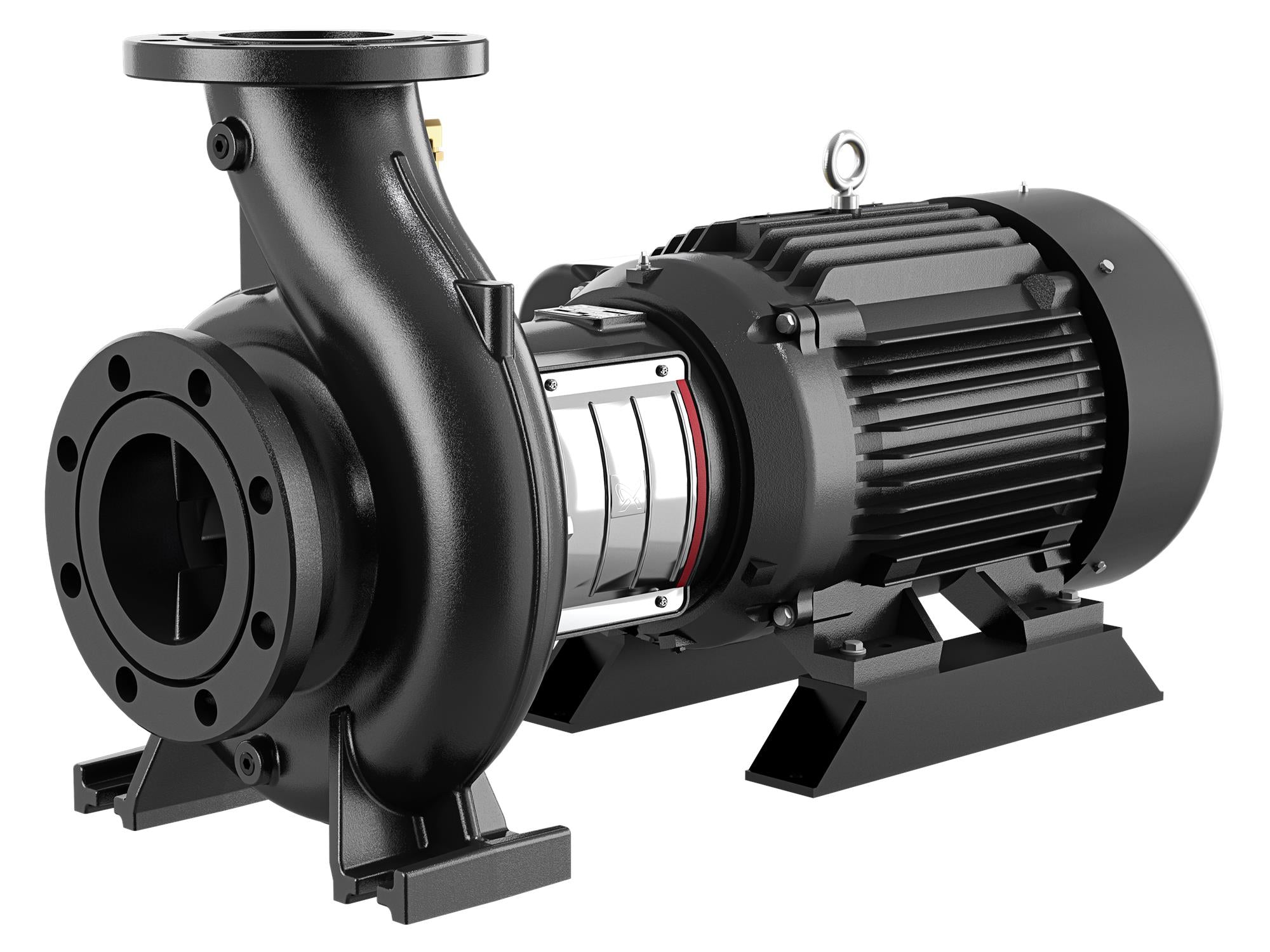

Grundfos 92559935, Split Coupled End Suction Pump with NEMA Motor

SKU: LSILYSS12J Part Number: 92559935

Price:
Sale price$19,124.95 Regular price$20,454.00

Save 6% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This split-coupled end-suction pump has a NEMA standard motor and ANSI flange fittings, suitable for commercial heating applications.

Specifications

Manufacturer Grundfos
Part Number 92559935
Rated pump speed 1780 rpm
Rated flow 1230 US gpm
Rated head 142.4 ft
Actual impeller diameter 12 in
Code for shaft seal BQQE
Curve tolerance 2B HI 14.6:2016
Pump version AS
Pump housing Cast iron, EN-GJL-250, ASTM A48-35
Impeller Stainless steel, EN 1.4308, AISI 304
Internal pump house coating No coating
Material code S5
Code for rubber E
Shaft Stainless steel, EN 1.4462, SAF 2205
Maximum ambient temperature 104 °F
Maximum operating pressure 174.05 psi
Type of connection ANSI
Size of suction port 6 inch
Size of outlet port 5 inch
Pressure rating for connection Class 125
Mounting options design code B
Support block (Yes/No) Y
Connect code G
Pumped liquid Water
Liquid temperature range -13 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
IE efficiency class IE3 / NEMA Premium
Rated power - P2 60 HP
Main frequency 60 Hz
Rated voltage 3 x 230/460 V
Rated current 140-70 A
Rated speed 1780 rpm
Motor efficiency at full load 95 %
Number of poles 4
Enclosure class (IEC 34-5) TEFC
Mounting designation (IEC 34-7, Code I) NEMA type C / foot
Bearing insulation type N-end No insulation
Frequency converter None
DOE Pump Energy Index CL 0.94
Net weight 1360 lb
Gross weight 1360 lb
Shipping volume 27.1 ft³
Country of origin US

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
