Description

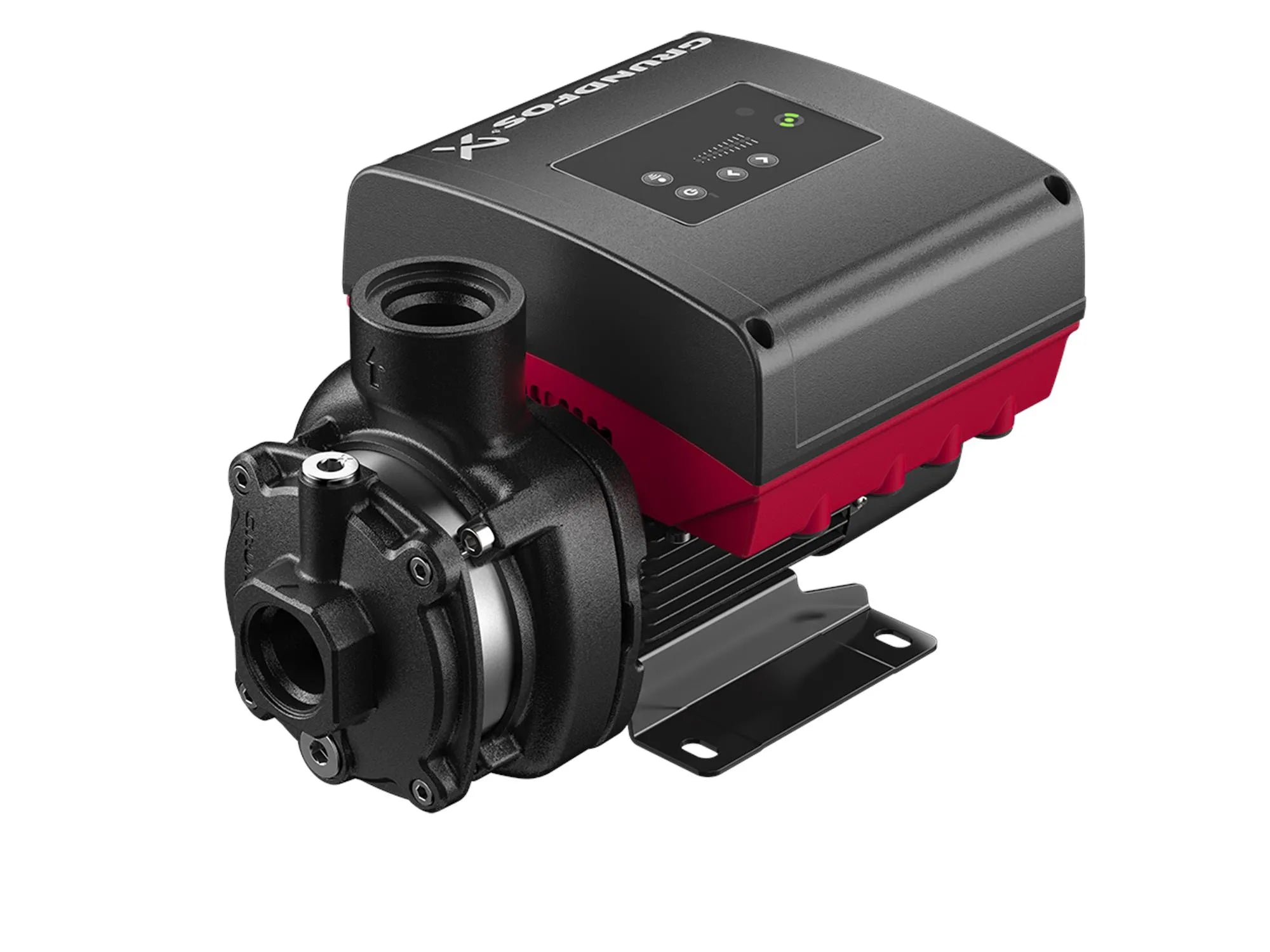

This CME series builds on the CM design, featuring a MGE motor with an integrated frequency converter for precise control and energy efficiency. Part of the E-pump family, it is ideal for water treatment, fertigation, chemigation, dosing, and various irrigation methods, available in cast iron and stainless steel.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99328430 |
| Rated pump speed | 3480 rpm |
| Rated flow | 8.98 US gpm |
| Rated head | 56.58 ft |
| Impellers | 2 |
| Code for shaft seal | AQQV |
| Approvals | CE,EAC,CURUS,UKCA |
| Approvals for drinking water | WRAS,ACS,NSF61 |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Cast iron, EN-GJL-200, ASTM A48-25A |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | A |
| Code for rubber | V |
| Range of ambient temperature | -4 .. 131 °F |
| Maximum operating pressure | 145.04 psi |
| Max pressure at stated temperature | 145 psi / 194 °F, 145 psi / 194 °F |
| Type of connection | NPT(F) |
| Size of suction port | 1 inch |
| Size of outlet port | 1 inch |
| Outlet position | 12 |
| Connect code | S |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 194 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Frame size | 71A |
| Rated power - P2 | 0.75 HP |
| Main frequency | 50 / 60 Hz |
| Suitable for 50/60 Hz (Yes/No) | Y |
| Rated voltage | 1 x 200-240 V |
| Service factor | 1.00 |
| Rated current | 3.45-2.9 A |
| Rated speed | 2900 - 4000 rpm |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Frequency converter | Built-in |
| Terminal box position | 12 |
| Minimum efficiency index, MEI ≥ | 0.7 |
| Net weight | 30.1 lb |
| Gross weight | 37.8 lb |
| Country of origin | US |
| Custom tariff no. | 8413.70.2040 |
