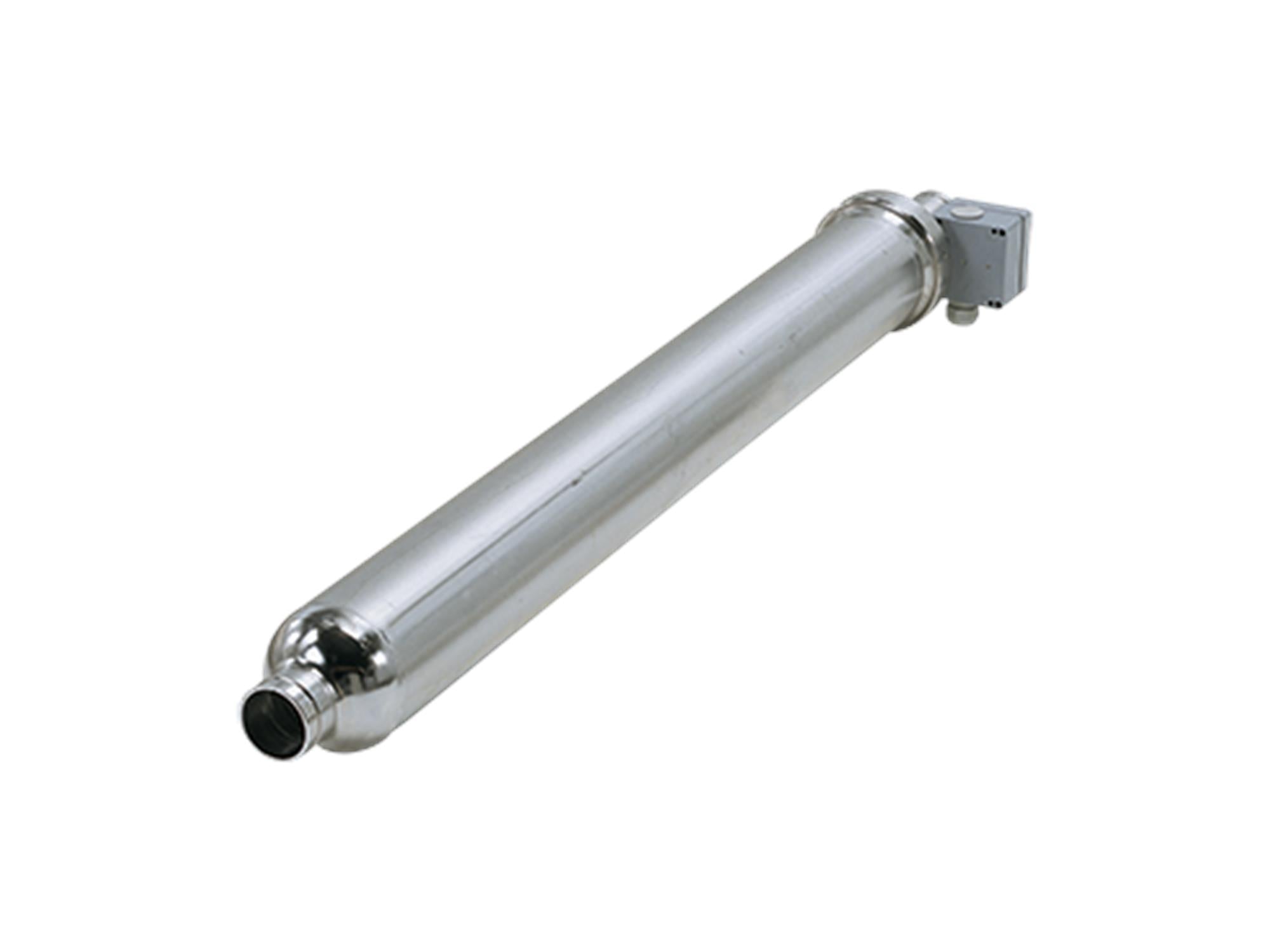

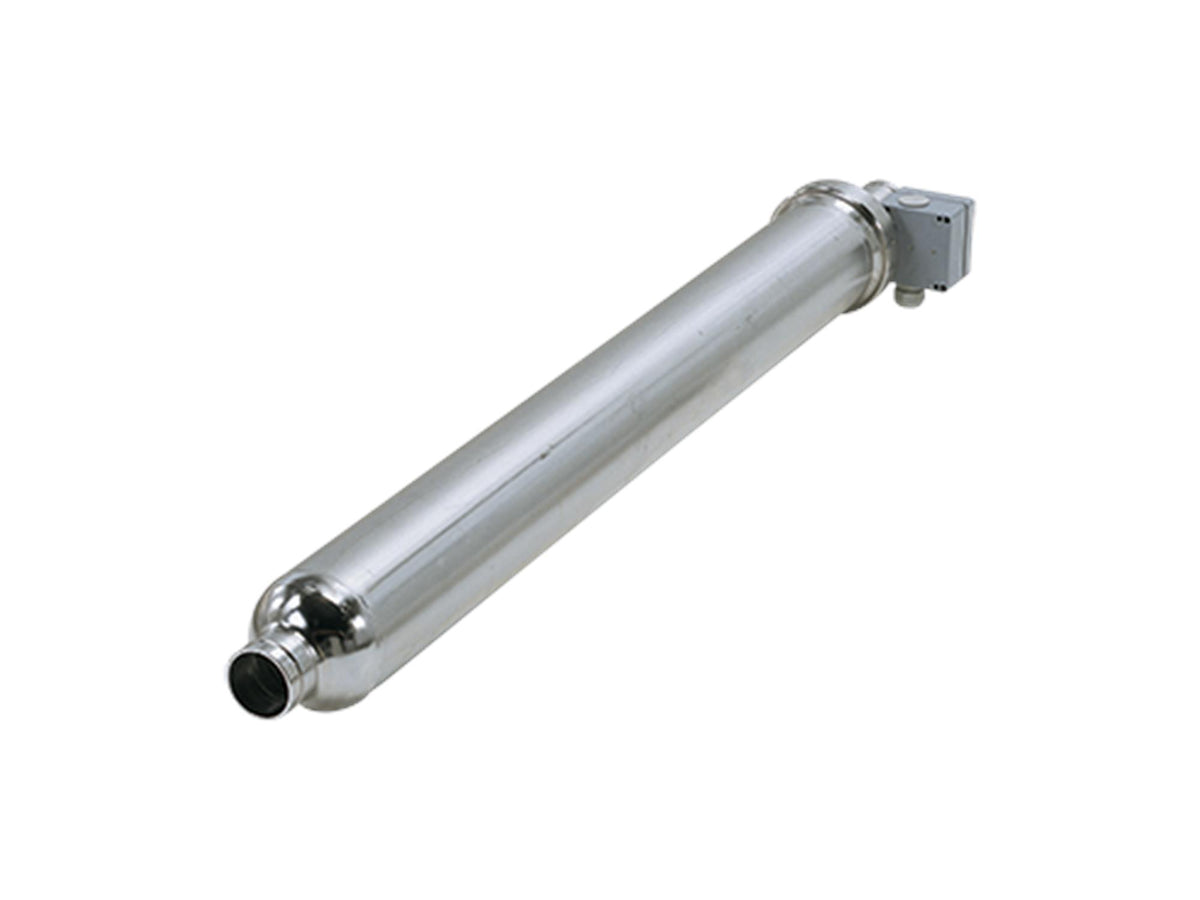

Grundfos 19671908, BM 95-8R NBR Encapsulated Pump for Water Supply

Roll over image to zoom in Click on image to zoom

This encapsulated pump is a modified standard submersible pump designed for various industrial filtration applications and water supply. It has an asynchronous submersible squirrel-cage motor and is suitable for use in drinking water treatment, desalination, and industrial water supply and transfer.

Manufacturer	Grundfos
Part Number	19671908
Rated flow	418 US gpm
Rated head	318.3 ft
Stages	8
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller	Stainless steel, EN 1.4539, AISI 904L
Motor	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber	NBR
Sleeve	Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	870.23 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	139 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	50 HP
Main frequency	50 Hz
Rated voltage	3 x 380-400-415 V
Rated current	81.5-78.5-77.0 A
Starting current	530-570-590 %
Cos phi - power factor	0.87-0.85-0.83
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP66
Built-in temperature transmitter	No
Minimum efficiency index, MEI ≥	-.--
Net weight	648 lb
Gross weight	877 lb
Shipping volume	42.4 ft³
