Grundfos 99929863, Vertical Multistage Centrifugal Pump for Machining

Roll over image to zoom in Click on image to zoom

Grundfos 99929863, Vertical Multistage Centrifugal Pump for Machining

Name: Grundfos 99929863, Vertical Multistage Centrifugal Pump for Machining
Brand: Grundfos
SKU: LSIMOJIA6S
Price: 2232.0 USD
Availability: OutOfStock

SKU: LSIMOJIA6S Part Number: 99929863

Price:

$2,232.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

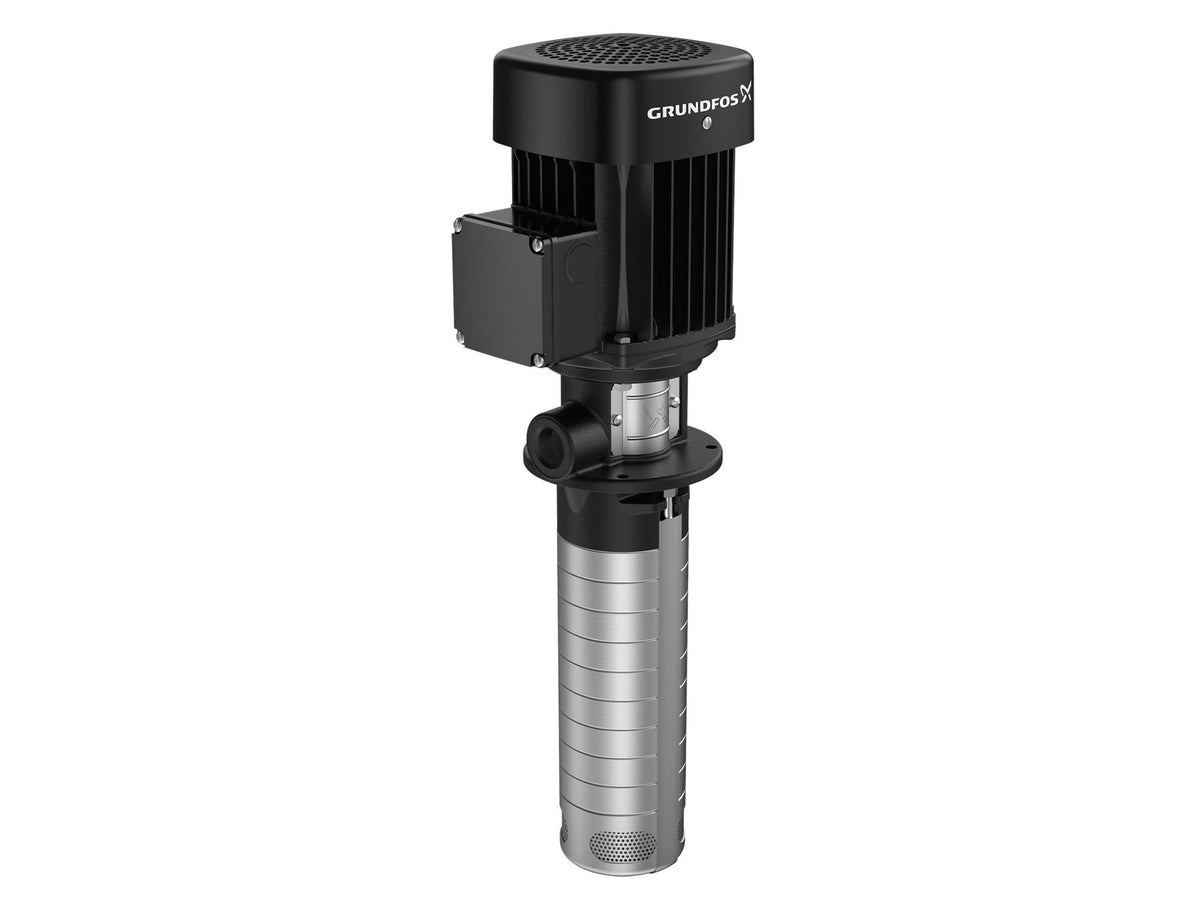

This vertical multistage centrifugal pump is designed for tank top mounting and is used for pumping cooling lubricants and cutting oils in machine tools, as well as condensate transfer and similar applications.

Manufacturer	Grundfos
Part Number	99929863
Pump speed on which pump data are based	3500 rpm
Stages	5
Impellers	3
Code for shaft seal	AUUV
Approvals	CE
Approvals for motor	cURus/cCSAus
Curve tolerance	ISO9906:2012 3B
Pump version	A
Cooling	IC 411
Drain holes	Open drain hole
Pump housing	Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Material code	A
Range of ambient temperature	-4 .. 104 °F
Max pressure at stated temperature	363 psi / 194 °F
Pipe connection	NPT 1 1/4
Flange size for motor	56C
Connect code	WB
Pumped liquid	Emulsion
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	WEG
Rated power - P2	0.33 HP
KVA code	K
Main frequency	60 Hz
Rated voltage	1 x 115/208-230 V
Service factor	1.15
Rated current	5,2/2,87-2,6 A
Starting current	700 %
Full load SF current	5.98/2.6 A
Cos phi - power factor	0.76
Rated speed	3490 rpm
Motor efficiency at full load	54.0 %
Motor efficiency at 3/4 load	50.0 %
Motor efficiency at 1/2 load	42.0 %
Number of poles	2
Enclosure class (IEC 34-5)	IP55
Insulation class (IEC 85)	F
Built-in motor protection	PTO
Thermal protec	internal
Net weight	34.8 lb
Gross weight	39.9 lb

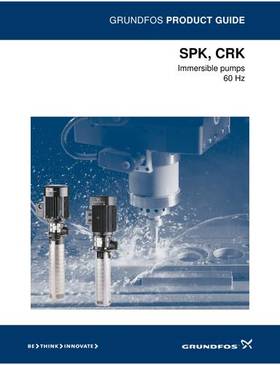

SPK, CRK (Data booklet)

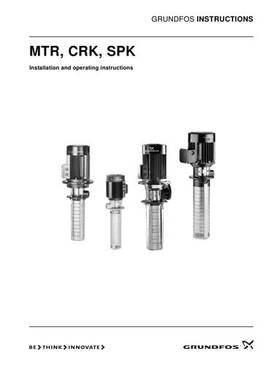

MTR, CRK, SPK (Installation and operating instructions)

CRE, CRIE, CRNE, CRKE, SPKE, MTRE E-pumps with MLE model K permanent-magnet motor
