Grundfos 96084651, CRI5-12 A-FGJ-A-E-HQQE Vertical Multistage Pump

SKU: LSIN8PHXWL Part Number: 96084651

Price:
Sale price$3,782.95 Regular price$5,646.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made of stainless steel (EN 1.4301).

Specifications

Manufacturer Grundfos
Part Number 96084651
Rated pump speed 3461 rpm
Rated flow 30.4 US gpm
Rated head 291.7 ft
Maximum head 391.8 ft
Actual impeller diameter 2.88 in
Stages 12
Impellers 12
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version A
Cooling TEFC
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Bearing SIC
Maximum ambient temperature 140 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 182TC
Connect code FGJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 112CA
Rated power - P2 5 HP
Power (P2) required by pump 5 HP
Main frequency 60 Hz
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Rated current 14,1-13,1/7,29 A
Starting current 1000-1470 %
Full load SF current 16,2-15,0/8,40 A
Cos phi - power factor 0.89-0.86
Rated speed 3525-3540 rpm
IE Efficiency class NEMA Premium / IE3 60Hz
Motor efficiency at full load 88.5 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at 1/2 load 86.9-84.7 %
Number of poles 2
Enclosure class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F
Built-in motor protection PTC
Frequency converter None
DOE Pump Energy Index CL 0.89
Net weight 139 lb
Gross weight 157 lb
Shipping volume 10.1 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

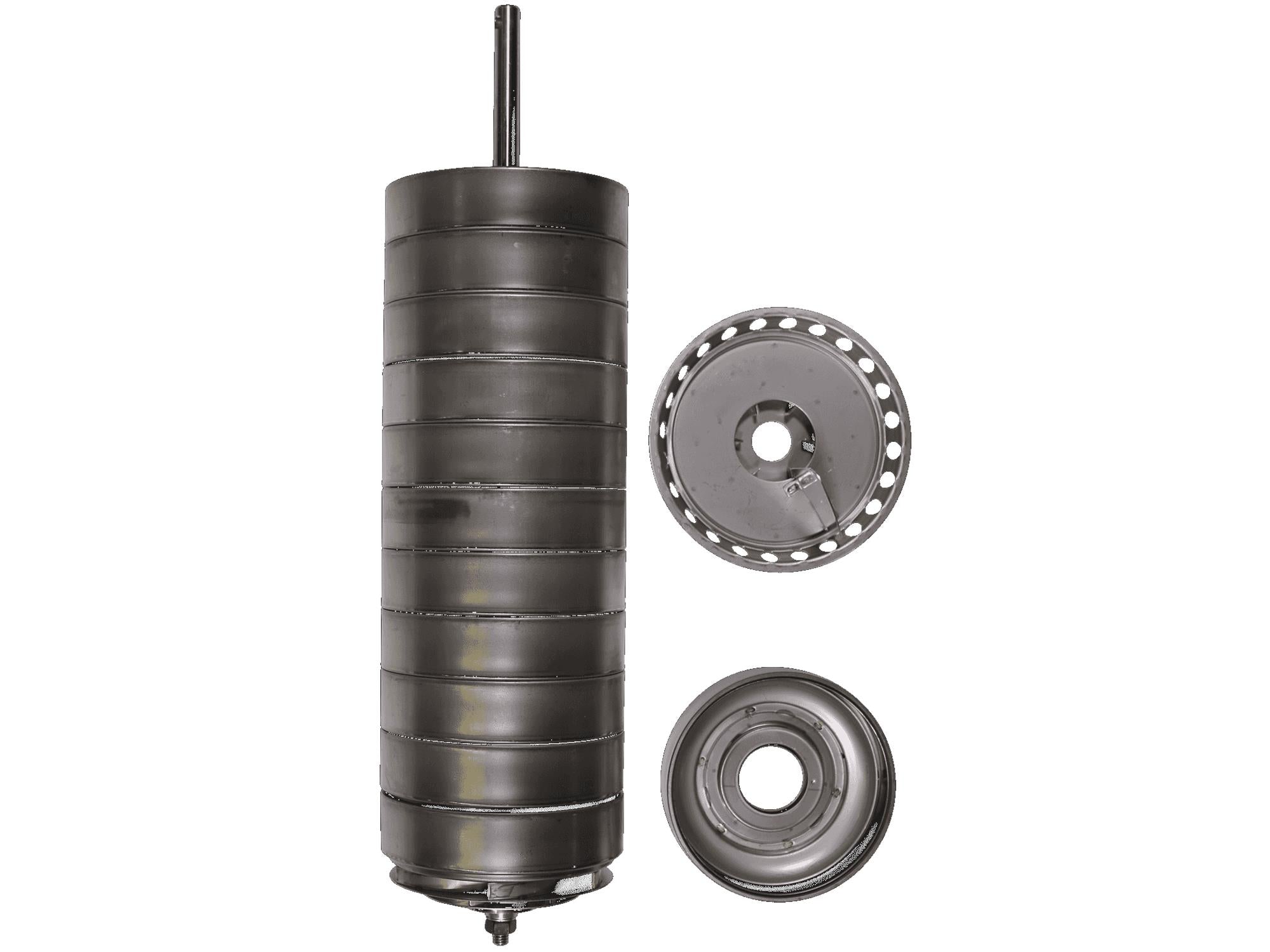

Grundfos 96453585, Chamber Stack Kit CR/CRI 5-12
Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Grundfos 96455090, Gasket Kit EPDM CR/I/N 1S/1/3/5
