Description

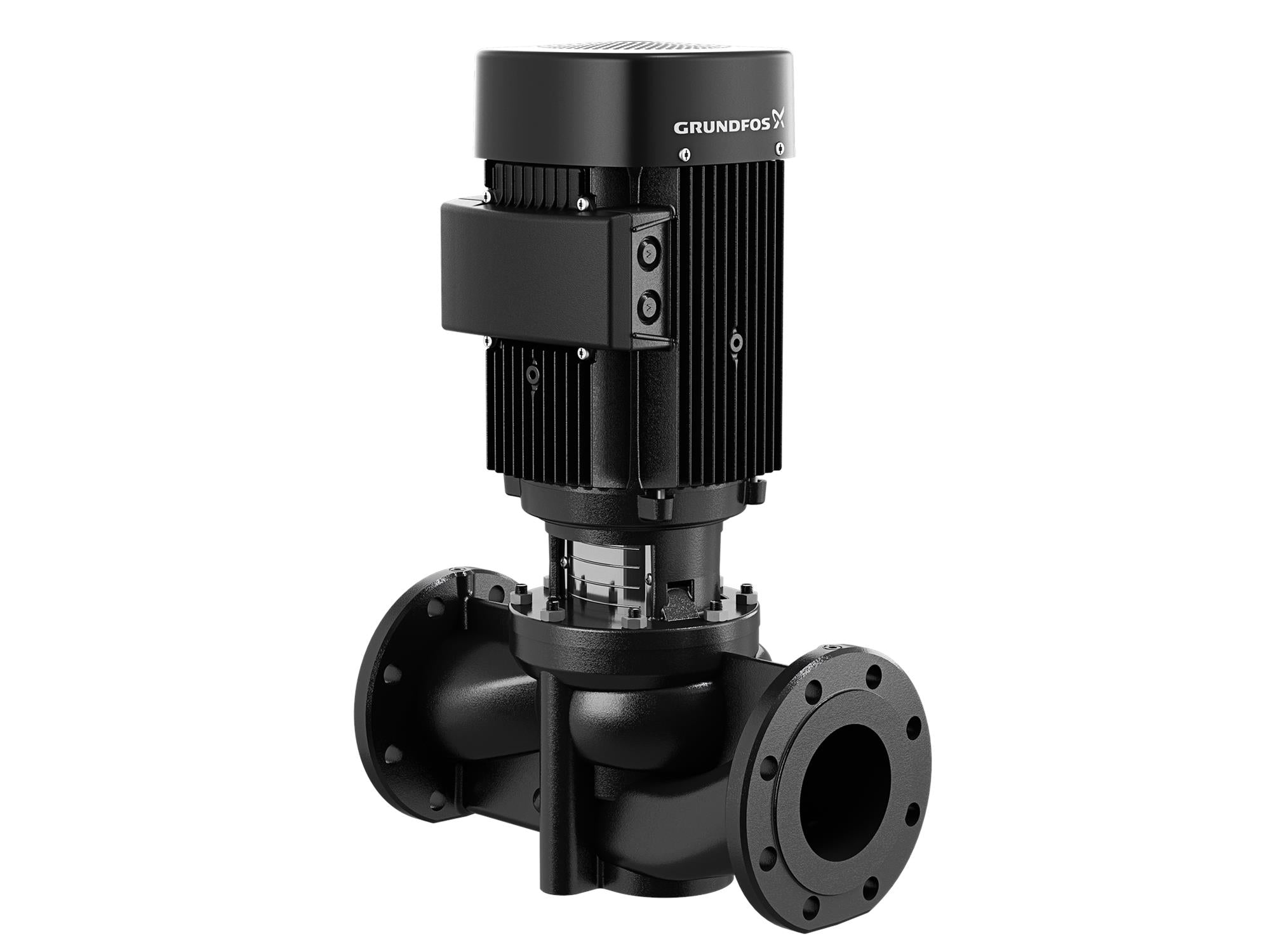

This inline single-stage pump is a TP80-160/2 A-G-A-RUUE model, designed as a close-coupled centrifugal pump with a mechanical shaft seal. It is primarily used for heating, cooling, and district energy applications. The pump has fixed-speed motors and is suitable for water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation systems.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96890358 |
| Rated flow | 150 US gpm |
| Rated head | 37.73 ft |
| Actual impeller diameter | 3.56 in |
| Primary shaft seal | RUUE |
| Approvals on motor nameplate | EAC,ECUR,IE3,CURUS,CC122B,CE |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump Number | 96405273 |
| Pump housing | Cast iron, EN-JL1040, ASTM 25 B |
| Impeller | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Range of ambient temperature | -22 .. 140 °F |
| Maximum operating pressure | 145.04 psi |
| Flange standard | ANSI |
| Pipe connection | 3" |
| Pressure stage | 125 lb. |
| Pumped liquid | Water |
| Liquid temperature range | 140 .. 140 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor type | 90FA |
| Rated power - P2 | 3 HP |
| KVA code | K |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230YY/460Y V |
| Service factor | 1.15 |
| Rated current | 8,35-7,80/3,9 A |
| Full load SF current | 9,5-8,95/4,5 A |
| Cos phi - power factor | 0.89-0.86 |
| Rated speed | 3510-3530 rpm |
| Motor efficiency at full load | 86.5 % |
| Motor efficiency at 3/4 load | 86.5 % |
| Motor efficiency at 1/2 load | 84.0 % |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| DOE Pump Energy Index CL | 0.89 |
| Gross weight | 169 lb |
| Shipping volume | 4.98 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2025 |
