Please note this item is made to order and additional lead-times may apply.

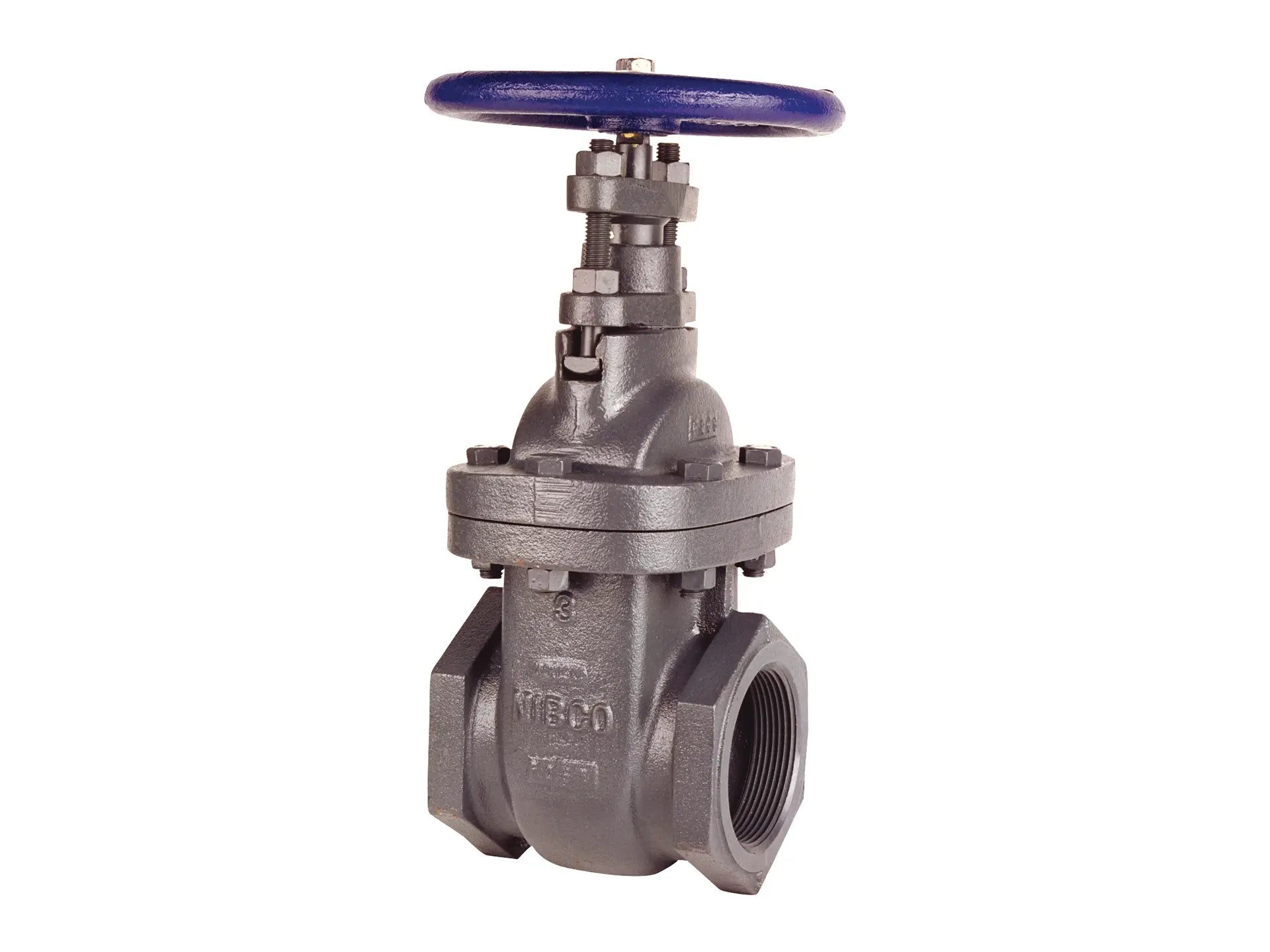

This NIBCO cast iron gate valve provides full flow with minimal pressure drop. The cast iron gate valve features a Class 125 threaded end connection for easy installation. The iron body bronze mounted (IBBM) valve has a bolted bonnet and non-rising stem. Non-rising stem gate valves are recommended when positive shutoff is required and where space is a premium. This NIBCO threaded cast iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- 125 psi/8.6 bar saturated steam to 353°F/178°C
- 200 psi/13.8 bar non-shock cold working pressure
- Bolted bonnet
- Non-rising stem
- Solid wedge
- Class 125 threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-70
