Description
Modutrol motor.

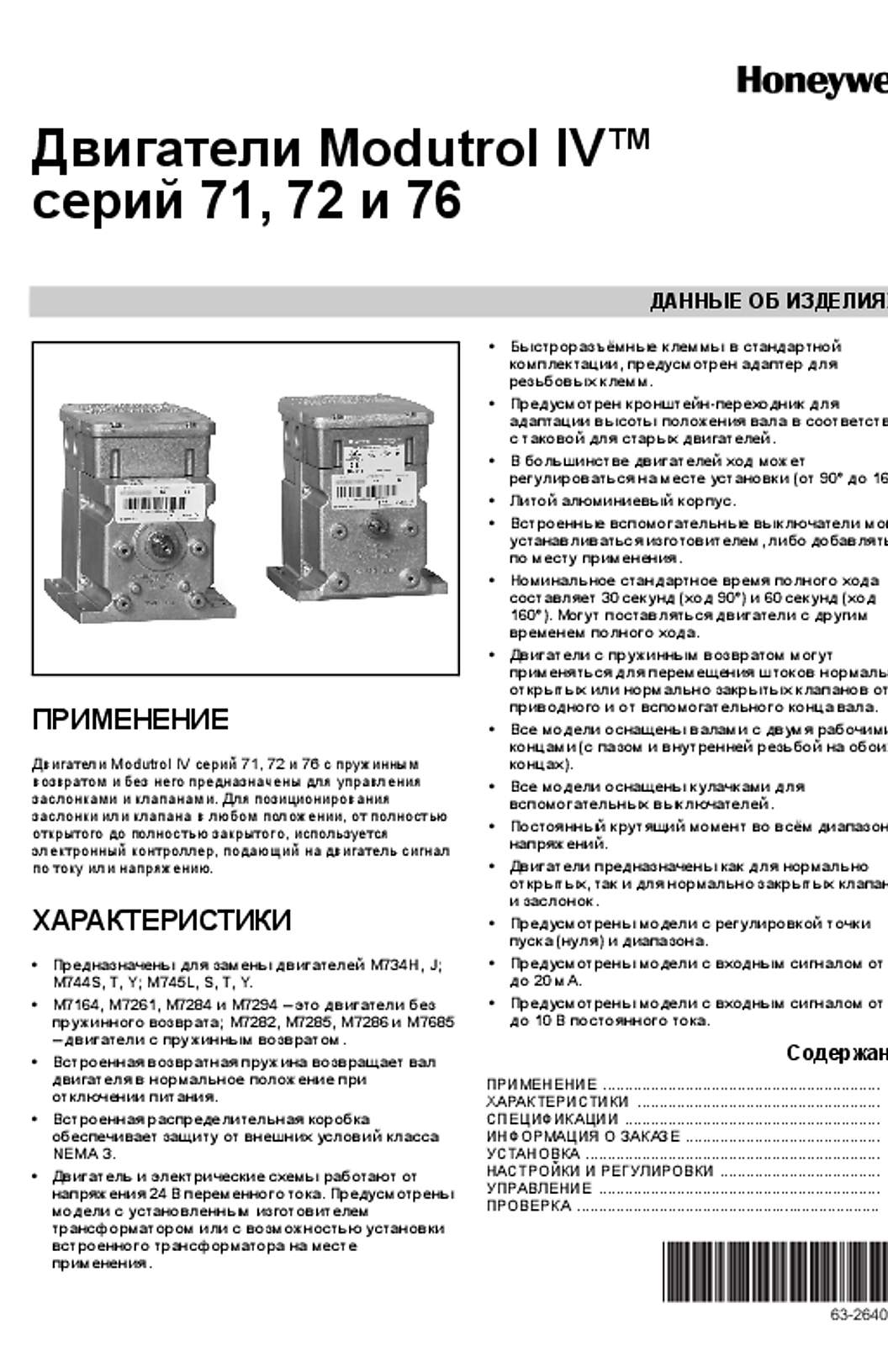

Series 71, 72, and 76 Modutrol IV™ Motors are spring return and non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve.
Features & Benefits:- Replaces M734H/J,; M744ST/Y; and M745L/S/T/Y Motors
- M7164, M7261, M7284, and M7294 are non-spring return motors; M7282, M7285, M7286 and M7685 are spring return motors
- Integral spring return returns motor to normal position when power is interrupted
- Integral junction box provides NEMA 3 weather protection
- Motor and circuitry operate from 24V AC; models available with factory installed transformer, or a field added internal transformer
- Quick connect terminals are standard—screw terminal adaptor is available
- Adaptor bracket for matching shaft height of older motors is available
- Most motors have field adjustable stroke (90° to 160°)
- Die-cast aluminum housing
- Integral auxiliary switches are available factory mounted, or can be field added
- UL Listed: File No. E4436; Guide No. XAPX for USA and Canada
Specifications
Manufacturer | Honeywell |
---|---|
Part Number | M7284Q1098 |
Model | P1911812 |
