Name: NIBCO NL99K35, 3/8 in. Three-Piece Stainless Steel Ball Valve Threaded ISO Mount TM-595-S6R-66
Brand: NIBCO
SKU: LSINGZGAGK
Price: 163.95 USD
Availability: InStock

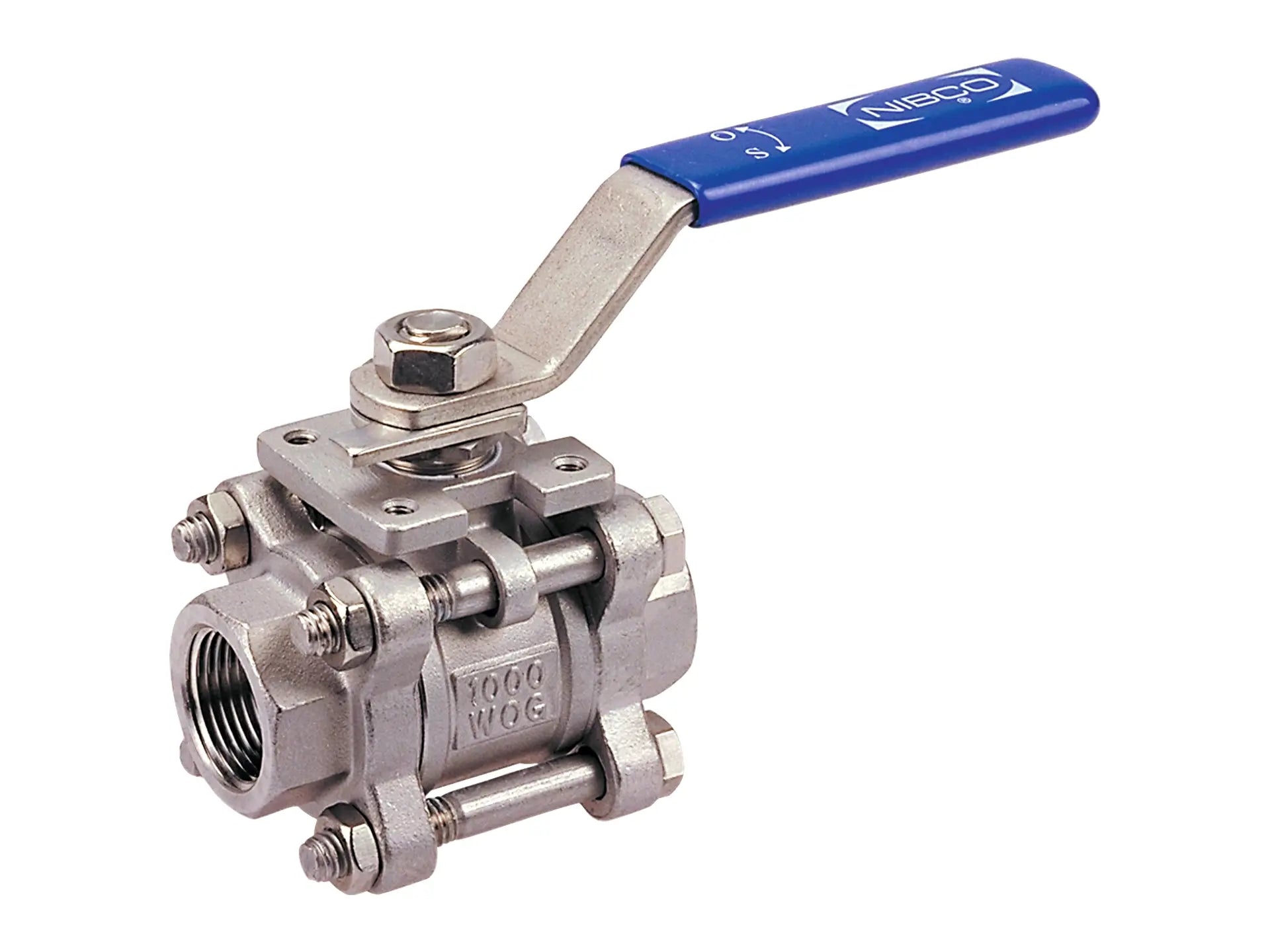

Representative Image

NIBCO NL99K35, 3/8 in. Three-Piece Stainless Steel Ball Valve Threaded ISO Mount TM-595-S6R-66

Roll over image to zoom in Click on image to zoom

This NIBCO stainless steel ball valve provides bubble-tight shutoff at 1000 psi. The reinforced PTFE seat ring and stainless steel ball/stem exhibit high chemical resistance properties. The three-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. It may be used for isolation and throttling (half open to full open only). Also available with locking lever handle. This NIBCO three-piece ball valve provides ease of operation with quarter-turn (90°) open to close. This valve features threaded ends for easy installation and cast ISO mounting pad for actuation purposes. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Features

Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
Maximum temperature rating 400°F
Full port
Cast ISO mounting pad
Blowout-proof stem
Stainless steel ball and stem
Vented ball
Locking lever handle
Threaded end connections
Conforms to MSS SP-110

Manufacturer	NIBCO
Part Number	NL99K35
Model	TM-595-S6R-66
Series	TM-595-S6-R-66
Type of Valve	Ball
Nominal Pipe Size	3/8"
End Connection Type	T -- Female NPT Thread (FIPT)
Material	Stainless Steel
Ball Body Type	Three-Piece
Ball Operator	Standard Lever Handle with ISO Actuator Mounting Pad
Ball Port Style	Full Port
Ball Stem Material	SS - Stainless Steel
Trim Package	Stainless Steel Trim
Seat Seal Material	RPTFE (Reinforced)
Turns Operations	Quarter-Turn
Pressure Rating (CWP)	1000 psi/69 Bar CWP
Potable Water Code	Not LL Comp not intend potable
UPC Code	039923793836
Length	5.42"
Width	3.33"
Height	1.94"
Country of Origin	TW
