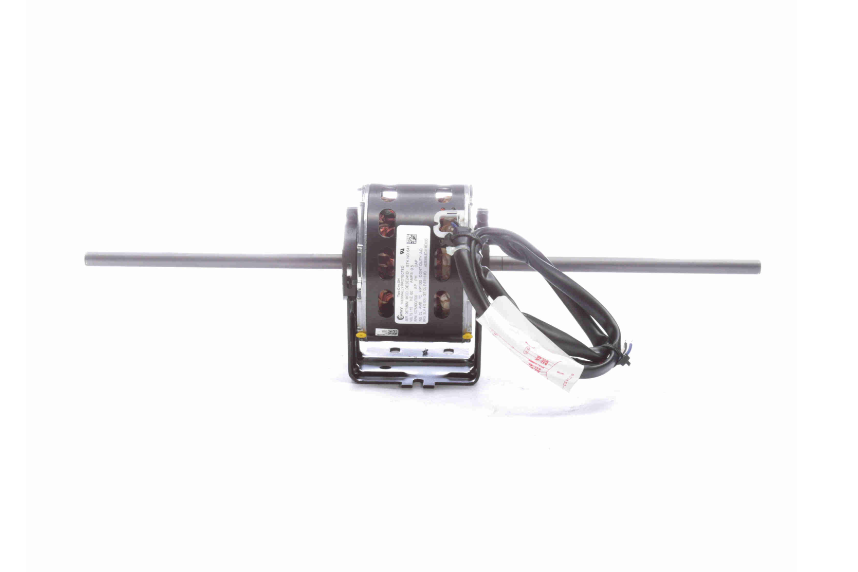

Century 1/30 HP, single-phase, 60Hz, 115V, 1075/950/750 RPM, three-speed motor with 42 frame.
Features
- OEM Direct Replacement Motor
- 5" diameter - 42 frame
- Permanent Split Capacitor (PSC)
- Capacitor required: 5 Mfd-370 Volts (supplied with motor)
- Impedance protected
- Open Air Over (OAO)
- Class A insulation, 40°C ambient
- Ball bearing
- 1/2" diameter double shaft with Fflat
- 35" leads
- Resilient base
Specifications
| Phase |
1 |
| Output HP |
1/30 HP |
| Voltage |
115V |
| Speed |
1075/950/750 RPM |
| Service Factor |
1 |
| Frame |
42 |
| Enclosure |
Open Air Over |
| Thermal Protection |
Impedance |
| Ambient Temperature |
40°C |
| Frequency |
60Hz |
| Current |
0.63, 0.40, 0.42 A |
| Duty |
Continuous Air Over |
| Insulation Class |
B |
| UL |
Recognized |
| CSA |
Y |
| CE |
N |
| Number of Speeds |
3 |
| Electrical Type |
Permanent Split Capacitor |
| Starting Method |
Across the Line |
| Poles |
6 |
| Rotation |
Clockwise Lead End |
| Mounting |
Resilient Base |
| Drive End Bearing |
Ball |
| Opp Drive End Bearing |
Ball |
| Frame Material |
Rolled Steel |
| Shaft Type |
Flat |
| Frame Length |
3.58" |
| Shaft Diameter |
.5" |
| Shaft Extension |
8.55" x .5" x 8.95" |
