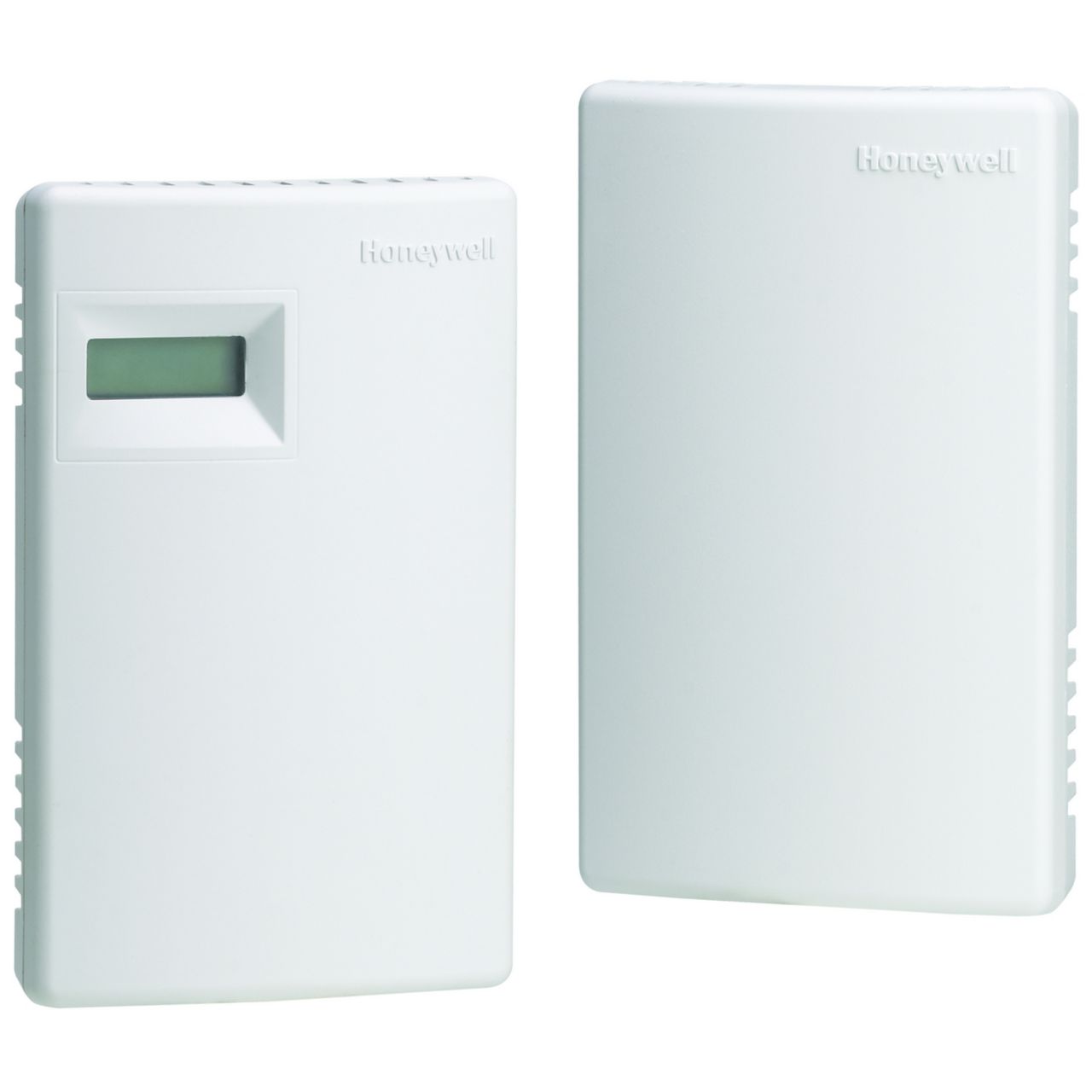

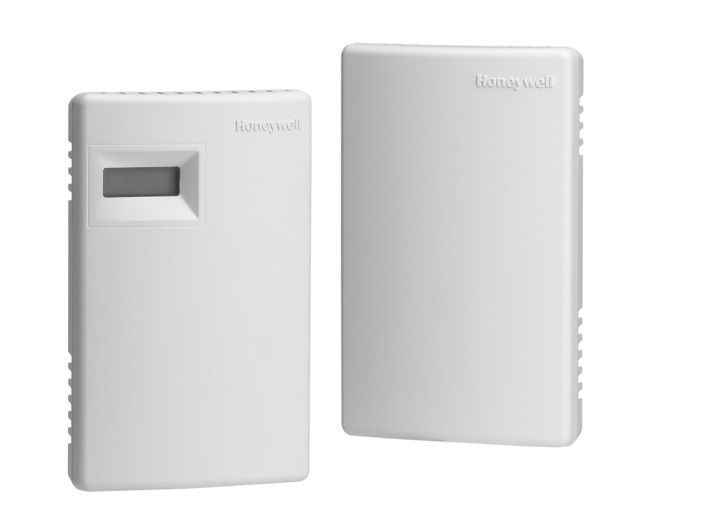

Honeywell C7262 Carbon Dioxide CO2 & Temperature Sensor C7262A1016

CO₂/temperature sensor, wall-mount, 0/2 to 10V DC or 0/4 to 20 mA output.

The C7262 Sensor is a stand-alone carbon dioxide (CO₂) and temperature sensor for use in determining ventilation necessity with HVAC controllers. The C7262 measures the CO₂ concentration and temperature in the ventilated space. The C7262 is used in ventilation and air conditioning systems to control the amount of fresh outdoor air supplied to maintain acceptable levels of CO₂ in the space and to sense the temperature of the space.

Features & Benefits:

• Used for CO₂ based ventilation control.
• Integral 20K ohm NTC temperature output.
• Models available with LCD that provides CO₂ ppm level.
• Non-Dispersion-Infrared (NDIR) technology used to measure carbon dioxide gas.
• Device provides voltage or current output based on CO₂ levels.
• Models available with SPST relay output.
• Automatic Background Calibration (ABC) algorithm based on long-term evaluation reduces required typical zero-drift check maintenance.

Certifications:

• CE
