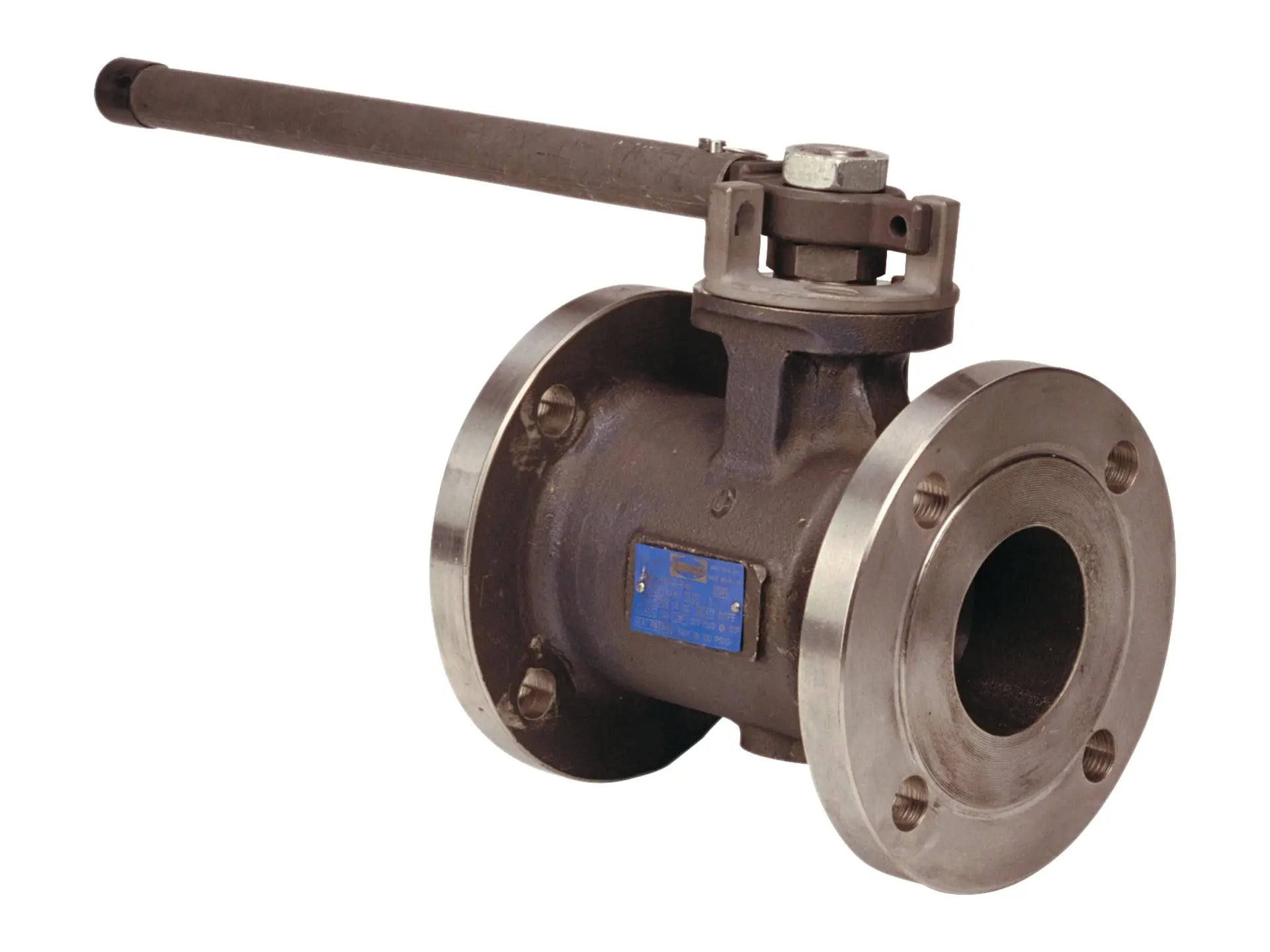

NIBCO F-510-S6-R-66-FS 1" Flgd Stainless Steel Ball Valve NG1070A

SKU: LSINUG4KJM Part Number: NG1070A Model: F-510-S6-R-66-FS

Price:
Sale price$1,995.95 Regular price$2,697.00

Save 26% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO stainless steel, flanged end ball valve provides bubble-tight shutoff at 275 psi. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to Fire Safe and Anti-Static requirements and is tested to API-598 criteria. This valve features a locking handle or manual gear operator. It may be used for isolation and throttling (half open to full open only). This NIBCO stainless steel ball valve provides ease of operation with quarter-turn (90°) open to close. The valve is equipped with mounting pad for actuation purposes. The reinforced PTFE seat ring, graphite and braided graphite stem packing and stainless steel ball and stem exhibits high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 275 psi 19 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Conventional port
  • Blowout-proof stem
  • Stainless steel ball and stem
  • Mounting pad
  • Vented ball
  • Locking handle or manual gear operator
  • Class 150 flanged end connections
  • Conforms to MSS SP-72
  • API-607 Fourth Edition Fire Safe
  • API-608 Anti-Static

Specifications

Manufacturer NIBCO
Part Number NG1070A
Model F-510-S6-R-66-FS
Series F-510-S6-R-66-FS
Type of Valve Ball
Nominal Pipe Size 1"
End Connection Type F -- Flanged
Material Stainless Steel
Ball Body Type Unibody
Ball Operator CS Standard Lever Handle
Ball Port Style Reduced Port
Ball Stem Material SS - Stainless Steel
Trim Package Stainless Steel Trim
Seat Seal Material RPTFE (Reinforced)
Turns Operations Quarter-Turn
Pressure Rating (CWP) 275 psi/19 Bar CWP
UPC Code 039923650313
Length 9"
Width 5.61"
Height 4.31"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
