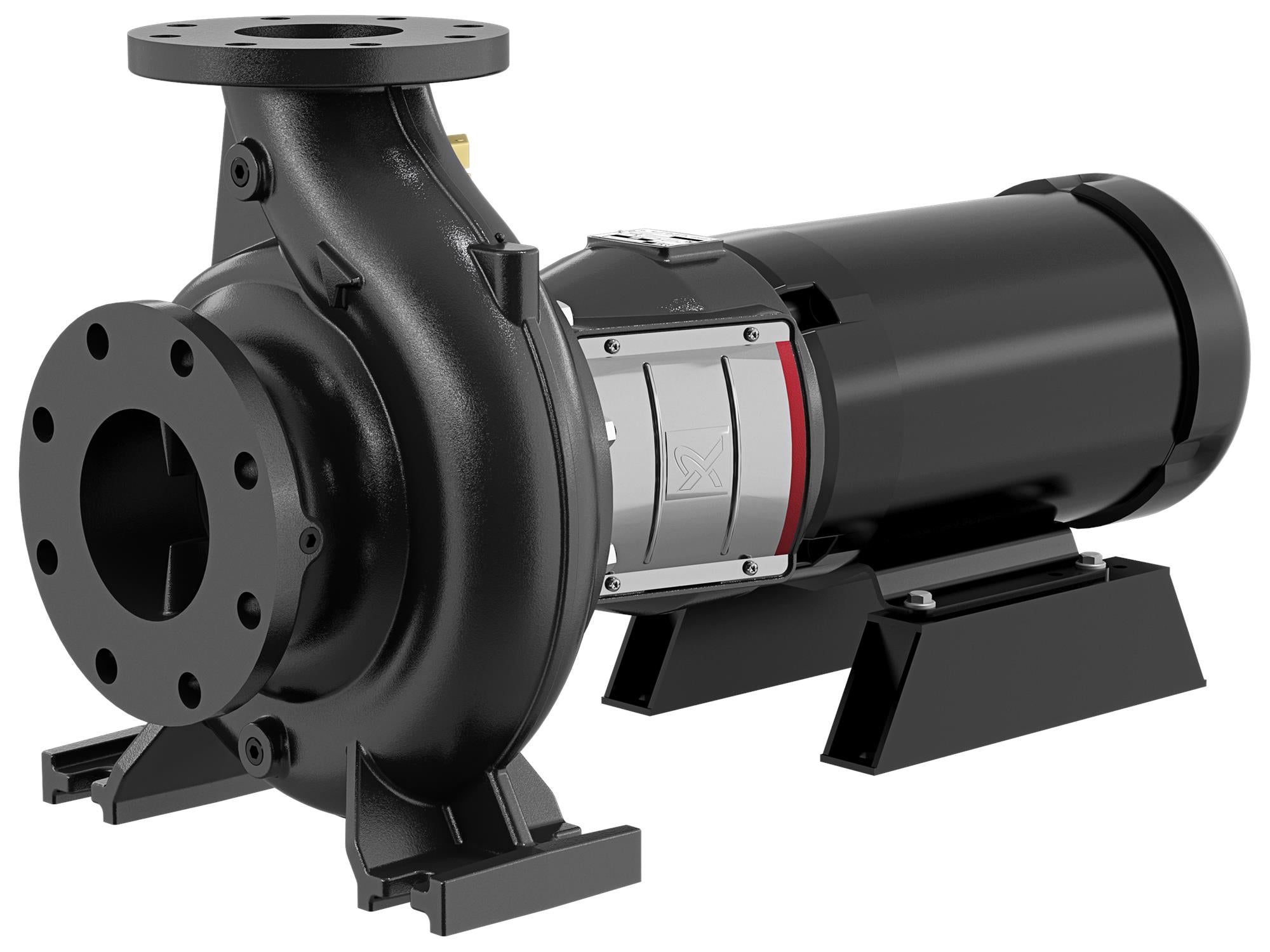

Grundfos 92560076, Split Coupled End Suction Pump with NEMA Motor

SKU: LSINYKKF3G Part Number: 92560076

Price:
Sale price$18,354.95 Regular price$19,630.00

Save 6% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This split-coupled end-suction pump with a NEMA standard motor and ANSI flange fittings is a non-self-priming, single-stage centrifugal volute pump. It has an axial inlet port, radial outlet port, and horizontal shaft. The back pull-out design allows for the removal of the motor, motor stool, cover, and impeller without disturbing the pump housing or pipework. It adheres to ISO 5199 standards with adjustments for American dimensions on the pump and flanges. Inlet and outlet flanges conform to ASME 16.1/16.42 standards with performance rated at 175/363 PSI (12/25 bar). The mechanical shaft seal follows EN 12756 dimensions, while motors meet NEMA standards and can be used with an MLE motor integrated frequency converter or connected to an external frequency converter.

Specifications

Manufacturer Grundfos
Part Number 92560076
Rated pump speed 1160 rpm
Rated flow 396 US gpm
Rated head 31.21 ft
Actual impeller diameter 8.74 in
Code for shaft seal DQQE
Curve tolerance 2B HI 14.6:2016
Pump version AS
Pump housing DUCTILE IRON, EN-GJS-500-7, ASTM 70-50-05
Flange Ductile iron, EN-GJS-500-7, ASTM 70-50-05
Impeller Stainless steel, EN 1.4308, AISI 304
Internal pump house coating No coating
Material code SA
Code for rubber E
Shaft Stainless steel, EN 1.4021/1.4034, AISI 420
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Type of connection ANSI
Size of suction port 5 inch
Size of outlet port 4 inch
Pressure rating for connection Class 300
Mounting options design code B
Support block (Yes/No) Y
Connect code G
Pumped liquid Water
Liquid temperature range -4 .. 284 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
IE efficiency class IE3 / NEMA Premium
Rated power - P2 5 HP
Main frequency 60 Hz
Rated voltage 3 x 230/460 V
Rated current 14.6-7.3 A
Rated speed 1160 rpm
Motor efficiency at full load 89.5 %
Number of poles 6
Enclosure class (IEC 34-5) TEFC
Mounting designation (IEC 34-7, Code I) NEMA type C / foot
Bearing insulation type N-end No insulation
Frequency converter None
Net weight 523 lb
Gross weight 523 lb
Shipping volume 12.3 ft³
Country of origin US

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
