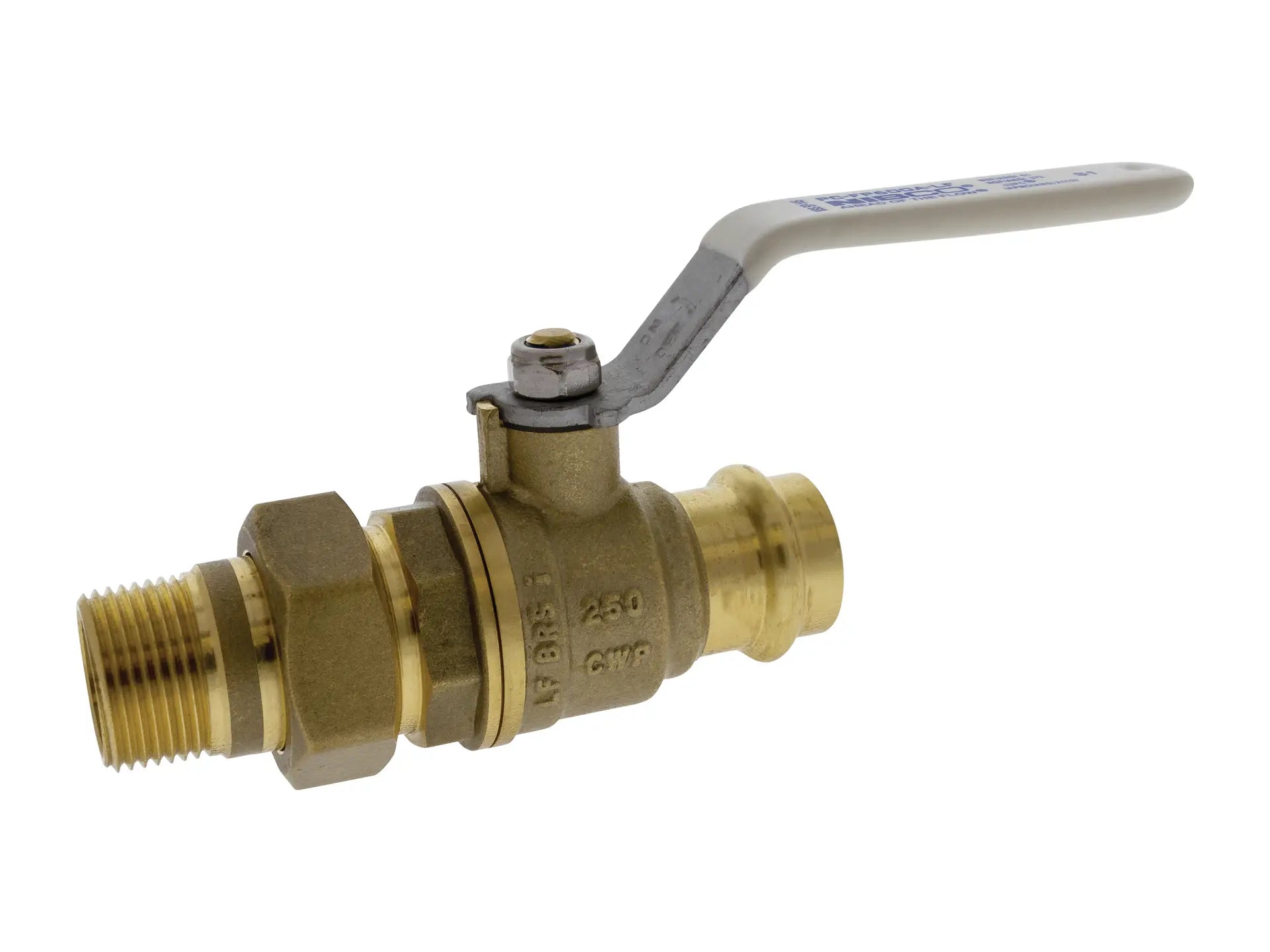

NIBCO PCMU-FP-600A-LF 1/2" Press x MIP Union LF Press Ball Valve NF99UM6

SKU: LSIO2T3RIZ Part Number: NF99UM6 Model: PCMU-FP-600A-LF

Price:
Sale price$71.95 Regular price$138.86

Save 48% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

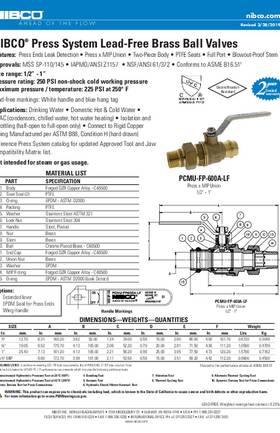

Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings - the most specified flow control products in the industry. This NIBCO Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

Features

  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Maximum service temperature 250°F
  • Copper-to-copper connections
  • Press x MIP Union
  • Full port
  • Blowout-proof stem
  • Reinforced PTFE seat rings
  • Multiple handle options
  • Press leak-detection feature
  • Dezincification resistant
  • Lead-free
  • Conforms to MSS SP-145
  • Third party certified to NSF/ANSI 61 & 372
  • Not intended for gas use
  • IAPMO/ANSI Z1157 (IGC 157)

Specifications

Manufacturer NIBCO
Part Number NF99UM6
Model PCMU-FP-600A-LF
Series PCMU-FP600A-LF
Type of Valve Ball
Nominal Pipe Size 1/2" x 1/2"
End Connection Type Press x MIP Union
Material Lead-Free Brass
Ball Body Type Two-Piece
Ball Operator CS Standard Lever Handle
Ball Port Style Full Port
Ball Stem Material BRS - Brass Ball and Stem
Seat Seal Material RPTFE (Reinforced)
Turns Operations Quarter-Turn
Pressure Rating (psi) 200 psi rated pressure
Potable Water Code LL Compliant NSF/ANSI 372
UPC Code 039923405104
Length 6.31"
Width 2.07"
Height 1.46"
Country of Origin CN
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer NIBCO® Press System is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
