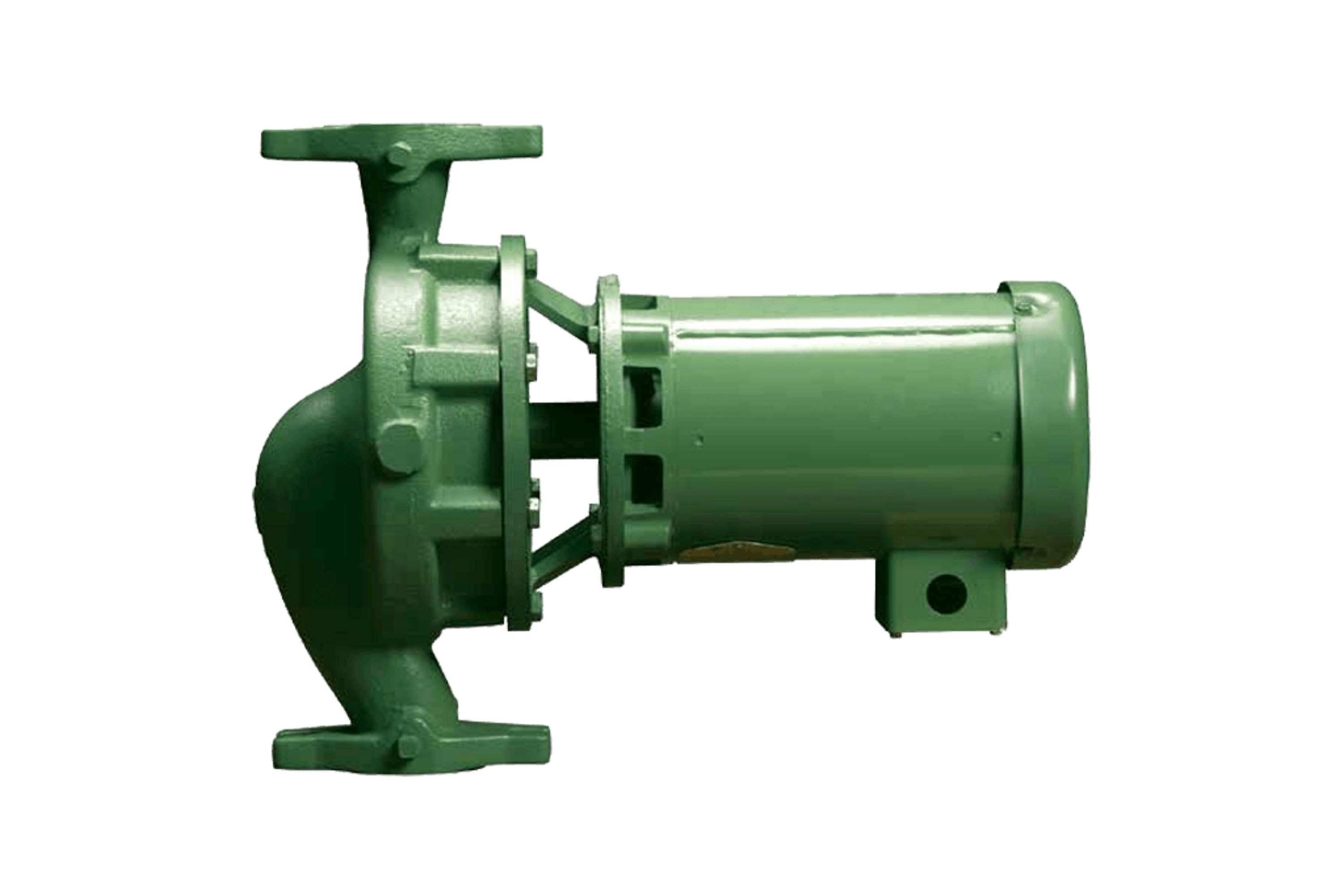

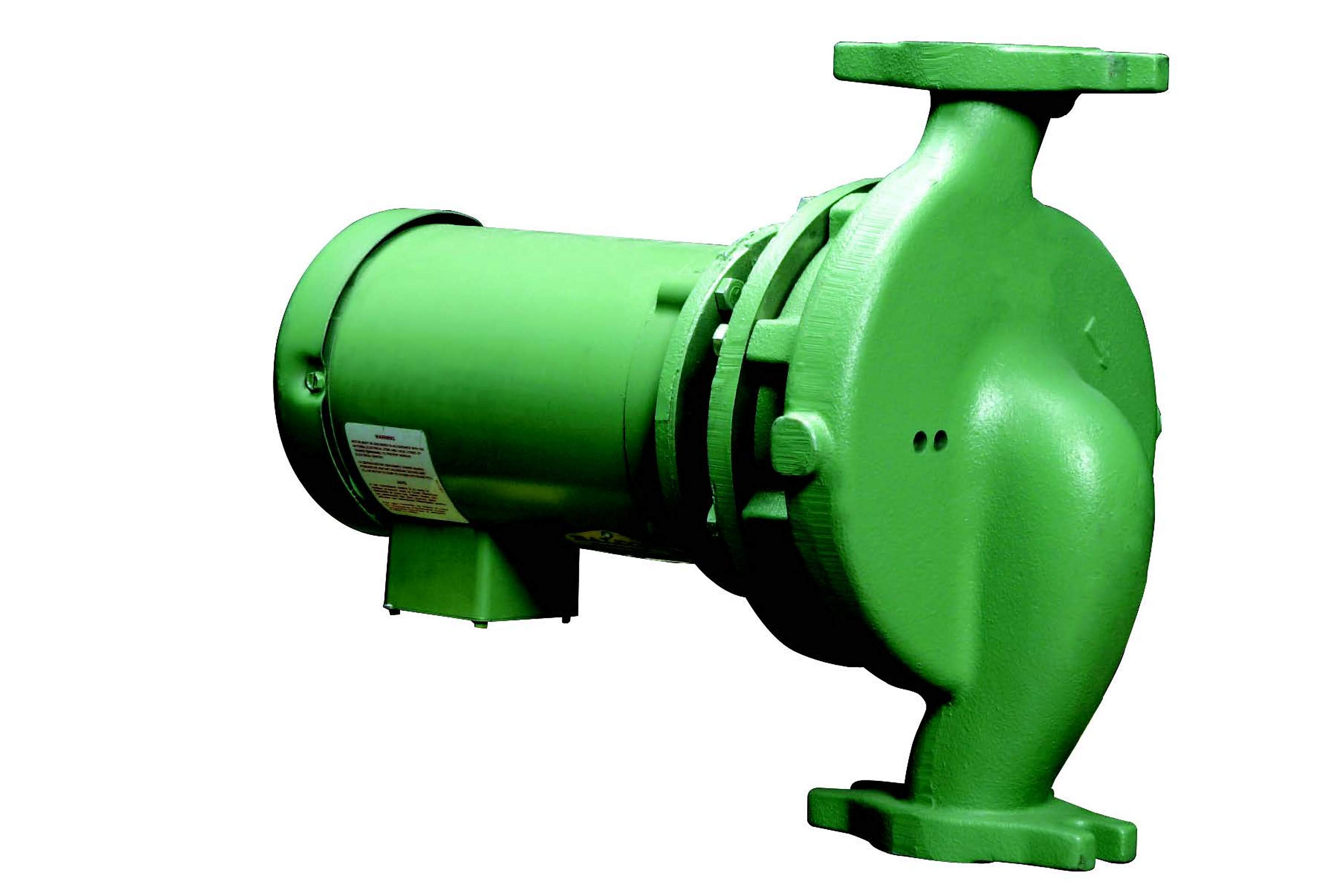

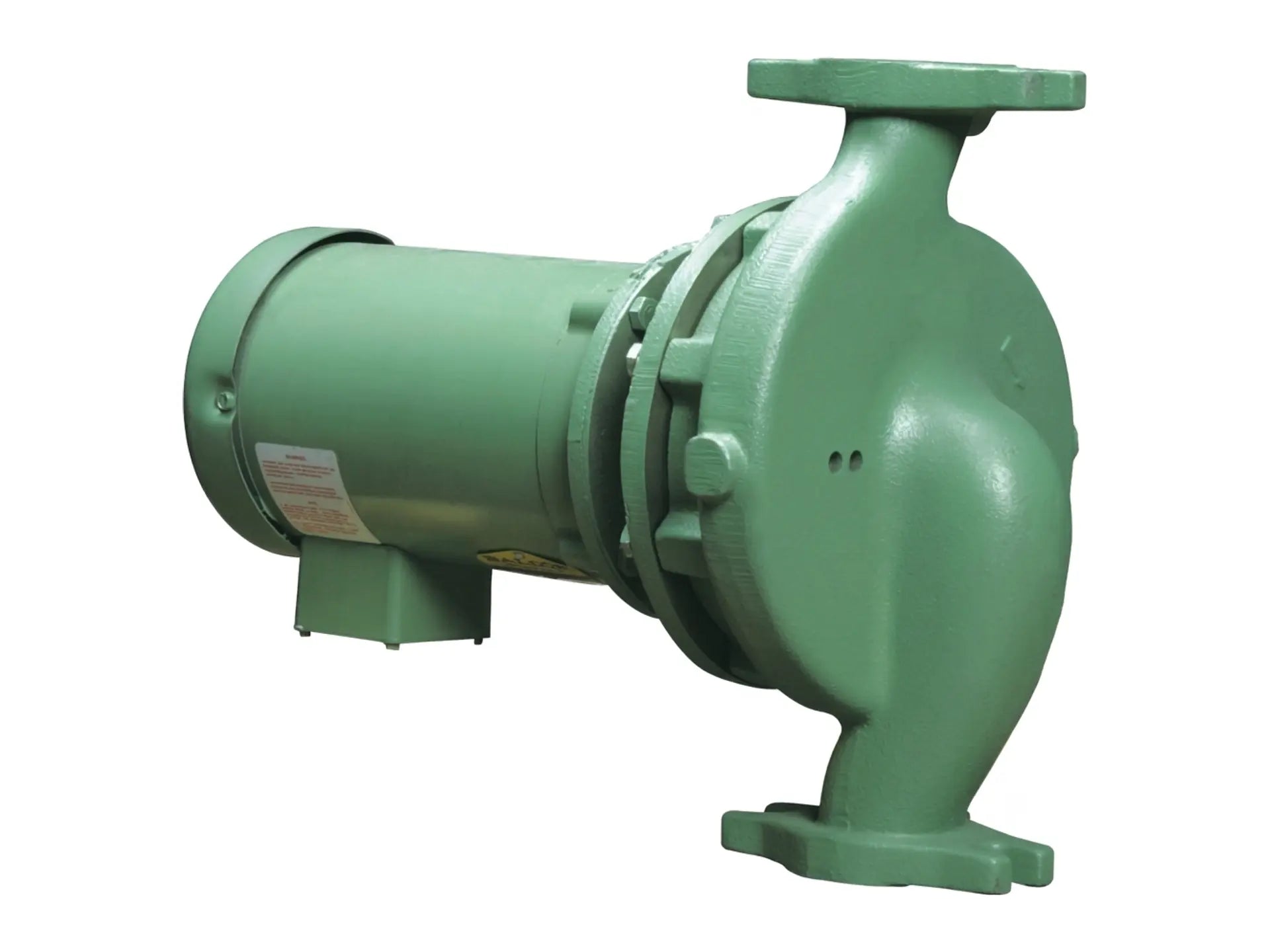

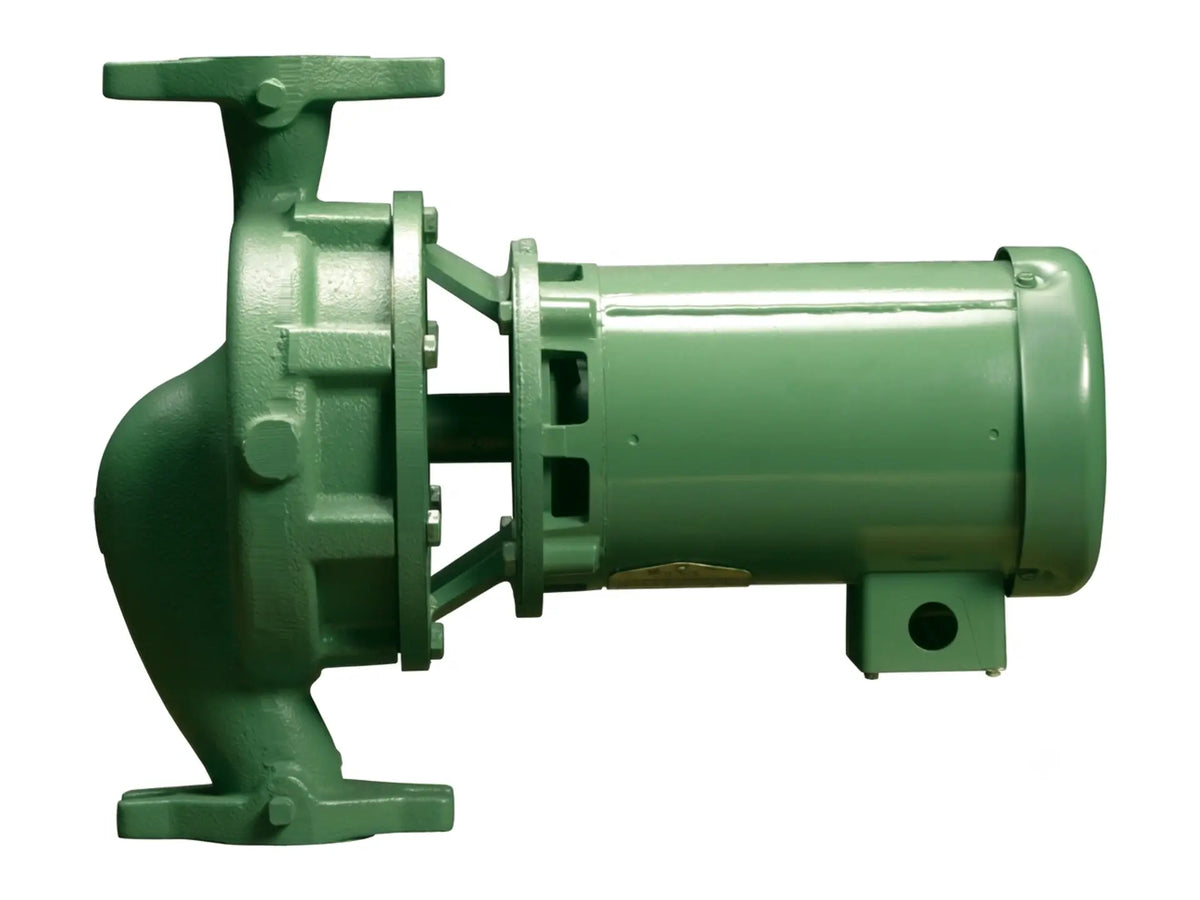

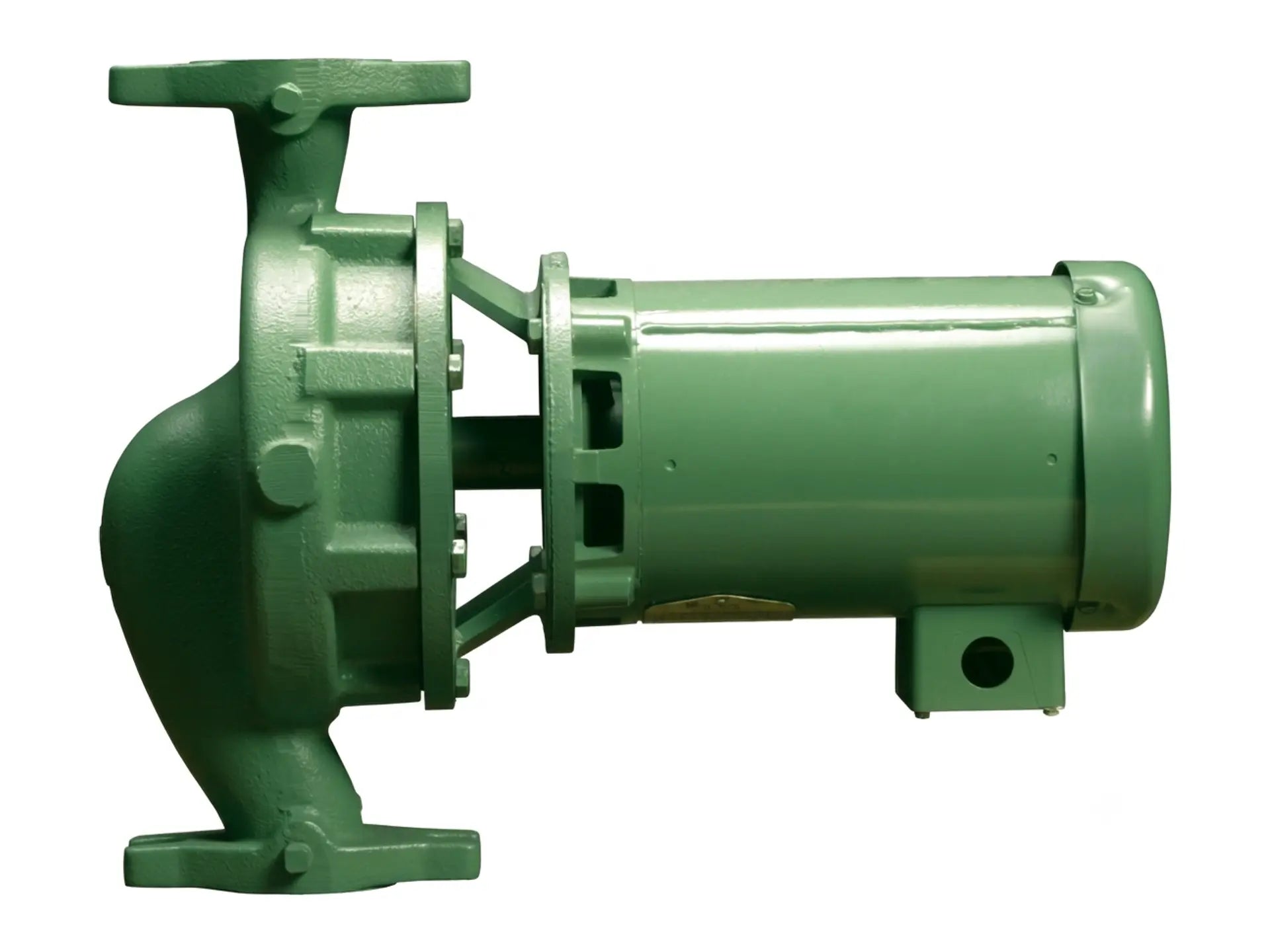

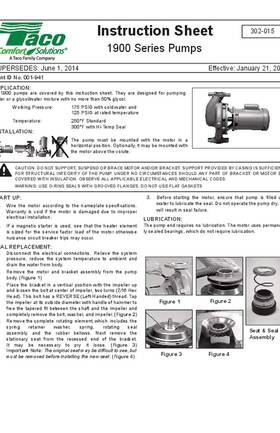

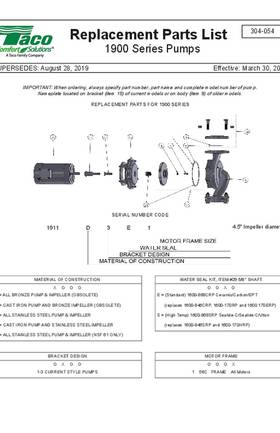

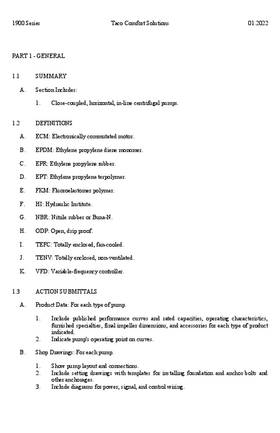

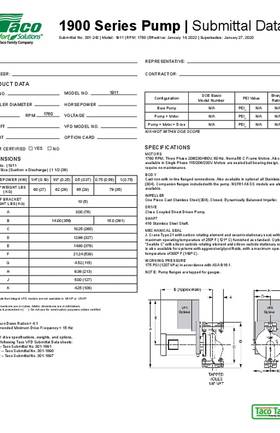

This close-coupled in-line pump has an in-line configuration with 1 1/2" suction and discharge ports. The assembly consists of a cast iron casing and bracket paired with a stainless steel impeller and a bronze face plate. A 6.35" nominal diameter impeller sits within the casing, which is rated for system pressures. The mechanical seal has a silicon carbide stationary seat, a carbon rotating element, and a Viton elastomer, allowing for operation at temperatures reaching 250°F. The casing includes pressure tappings for differential readings and comes with companion flanges for integration into system piping. This self-supporting unit can be installed in horizontal or vertical orientations.
The system uses a 5 HP, 3450 RPM, ODP motor configured for 208-230/460V, 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
