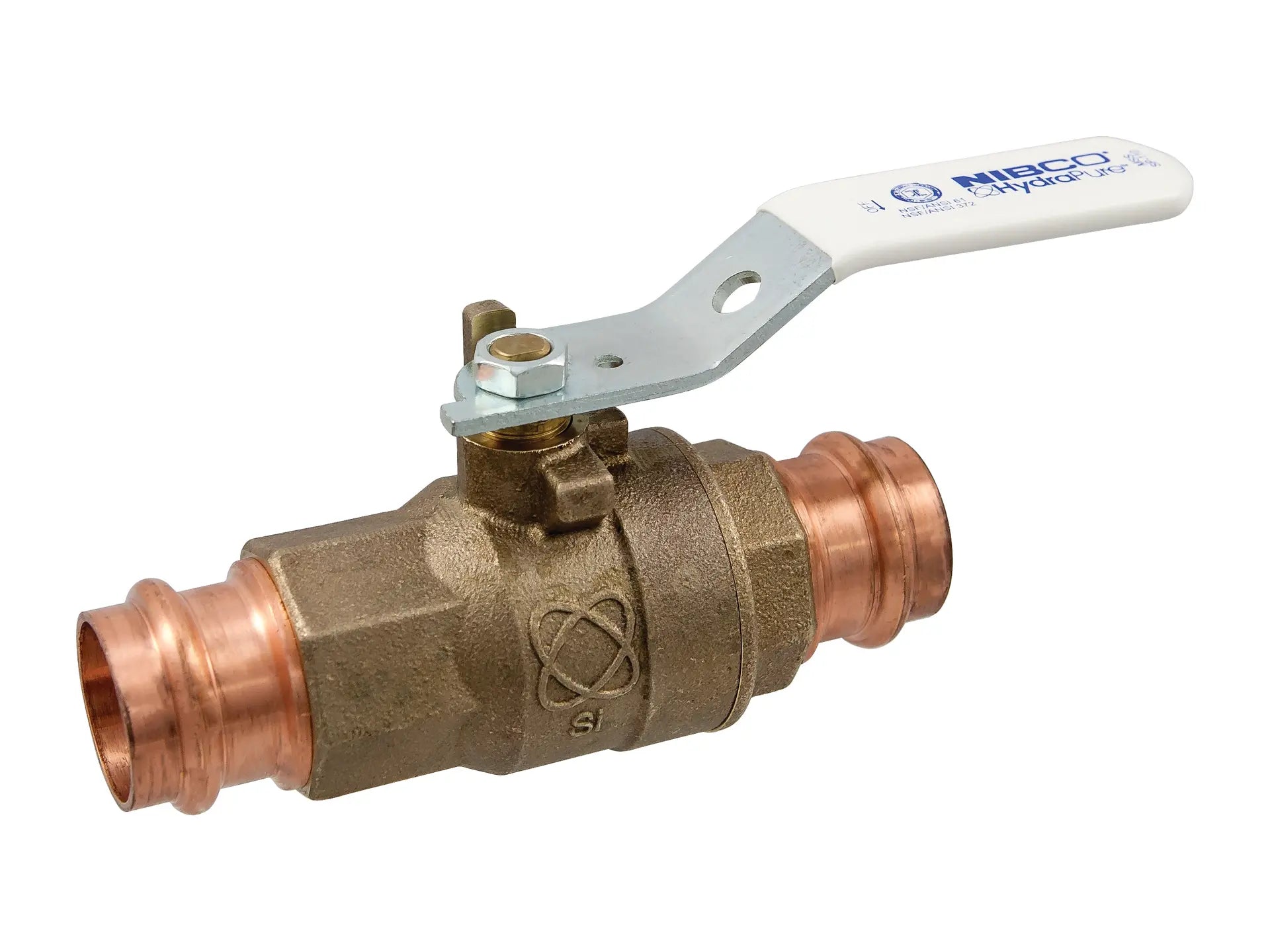

NIBCO NF842X6, 1/2 in. x 1/2 in. Ball Valve Lead-Free

SKU:: LSIOJ98F8J
MPN:: NF842X6
Model:: PC-585-80-LF-NS

Discontinued as of June 10, 2026

NIBCO NFB842X6, 1/2 in. x 1/2 in. Ball Valve Lead-Free

$106.95

Typically Stocked - Call or Chat to confirm

View Replacement

This NIBCO Press System ball valve body is manufactured from lead free HydraPure Performance Bronze alloy and is dezincification resistant. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. This NIBCO Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead free HydraPure Performance Bronze ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings - the most specified flow control products in the industry. This NIBCO Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO Press System valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

Features

Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
Maximum service temperature 250°F
Copper-to-copper connections
Full port
Blowout-proof stem
Reinforced PTFE seat rings
Press x press female end connections
Press leak-detection feature
Multiple handle options, including NIB-Seal®
Dezincification resistant
Lead-free
Conforms to MSS SP-110
NSF/ANSI-61-8 Commercial Hot 180°F (includes Annex F and G)
NSF/ANSI-372
IAPMO/ANSI Z1157

Manufacturer	NIBCO
Part Number	NF842X6
Model	PC-585-80-LF-NS
Series	PC-585-80-LF
Type of Valve	Ball
Nominal Pipe Size	1/2" x 1/2"
End Connection Type	Female Press x Female Press
Material	Lead-Free Bronze
Ball Body Type	Two-Piece
Ball Operator	NIB-SEAL® Extended Insulated Handle
Ball Port Style	Full Port
Ball Stem Material	Silicon Bronze
Trim Package	Bronze Trim
Turns Operations	Quarter-Turn
Potable Water Code	LL Compliant NSF/ANSI 372
UPC Code	039923349774
Length	4.25"
Width	4.19"
Height	2.25"
Country of Origin	US
CA Proposition 65 Warning Statement	WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer	NIBCO® Press System is a registered trademark of NIBCO INC. Performance Bronze® is a registered trademark of NIBCO INC.
