Please note this item is made to order and additional lead-times may apply.

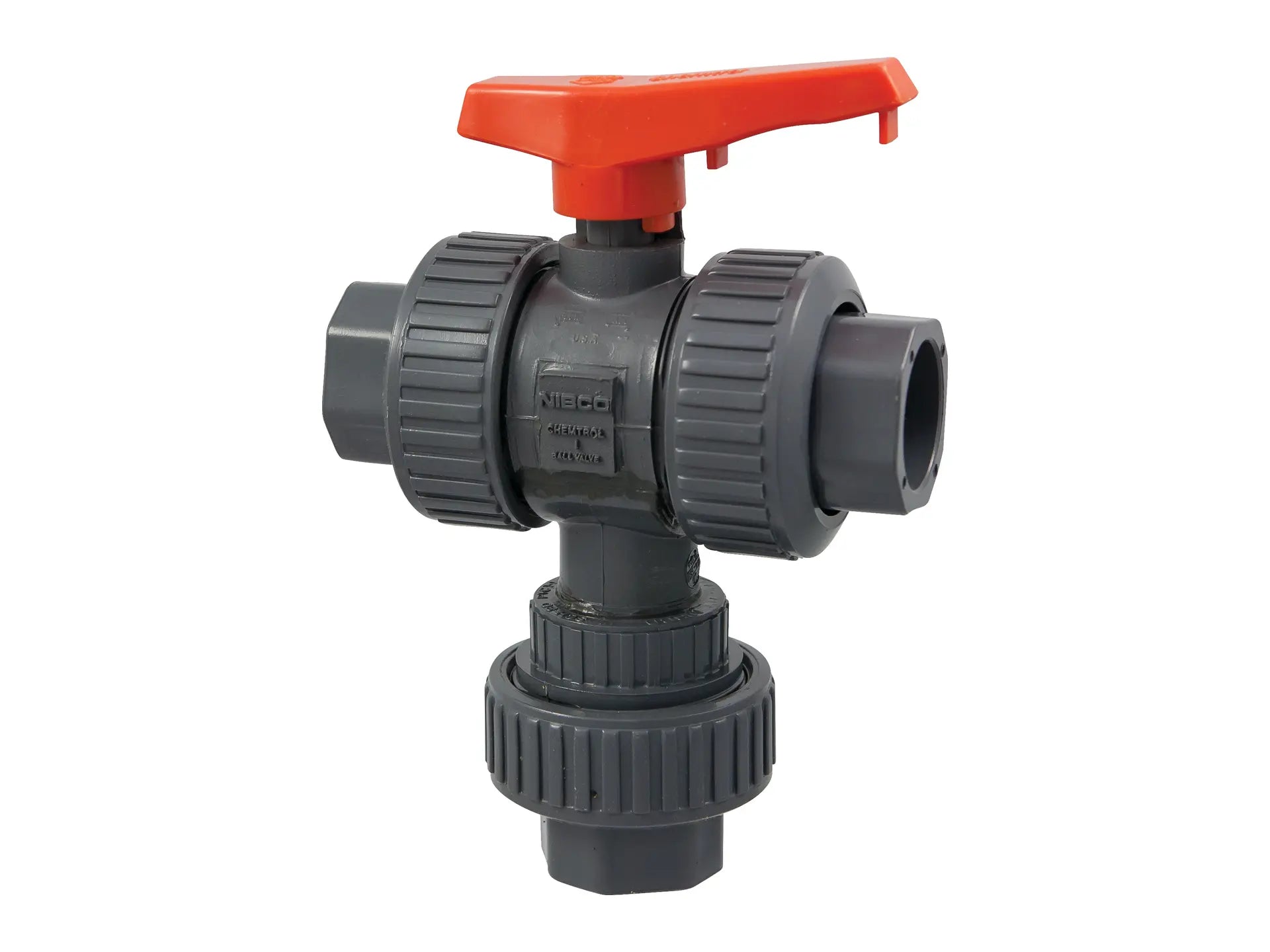

This Chemtrol True Union three-way, two-position diverter ball valve is ideal for applications where quarter-turn flow diversion is needed, but not on/off control. The diverter may also be used to alternately divert flow from either of the side run inlet ports to the branch center inlet port. The valve's full port design produces minimum flow restriction with the lowest possible pressure drop for 90° porting. The valve's injection molded PVC construction with FKM O-ring is ideal for use in chemical processing, industrial plating, chilled water distribution, chemical drainage and irrigation systems. The original Chemtrol True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. No disruption or length change of connected piping is required. The valve can be easily joined with the socket end connections. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. PVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol PVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit or corrode. Choose Chemtrol valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol valves are backed by a 1-year limited warranty. Because Chemtrol is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.
Features
- Valve pressure rating 150 psi at 73°F water non-shock full-port
- Maximum service temperature 140°F
- True Union design
- Diverter
- FKM O-ring
- Socket end connections
- Orange handle
- Do not use or test with compressed air or other gases
- ASTM F1970
- NSF/ANSI Standard 14
- NSF/ANSI Standard 61, Annex G
